* This item is not currently in stock, orders will be fulfilled when the item becomes available.

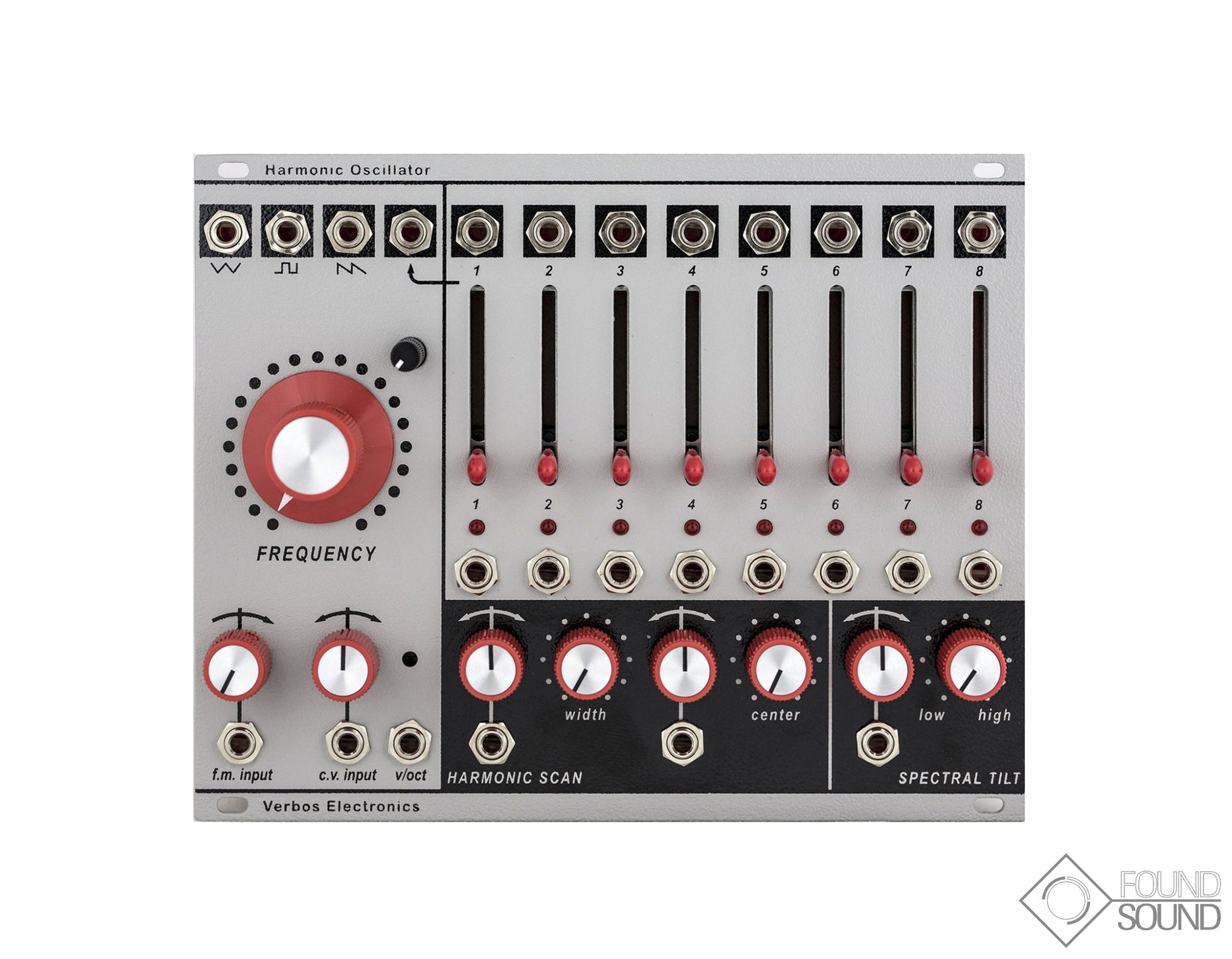

For the first time in Eurorack, this oscillator module provides outputs for the first 8 harmonics as sine waves. Also included are triangle, saw, square waves. A voltage controlled mixer with various methods of address allows the user to scan, tilt and mix the harmonics from both panel and external voltage control.
It is built on a discrete, all analog triangle core with an old school discrete transistor exponential converter. It has inputs for linear and exponential FM, the exponential with a reversing attenuator. Of course there's a 1 volt/octave trimmed CV input as well.
32HP
Brand new with warranty.
Video: https://youtu.be/htF2GzI7Q74
Product Specs
- Item Number: 9492
- Make: Verbos Electronics
- Model: Harmonic Oscillator
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Oscillator
- Made In: United States
- MPN: VEHO
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 32 HP 26 mm deep
- Power*: 120 mA +12V 90 mA -12V 0 mA 5V
* User contributed details
