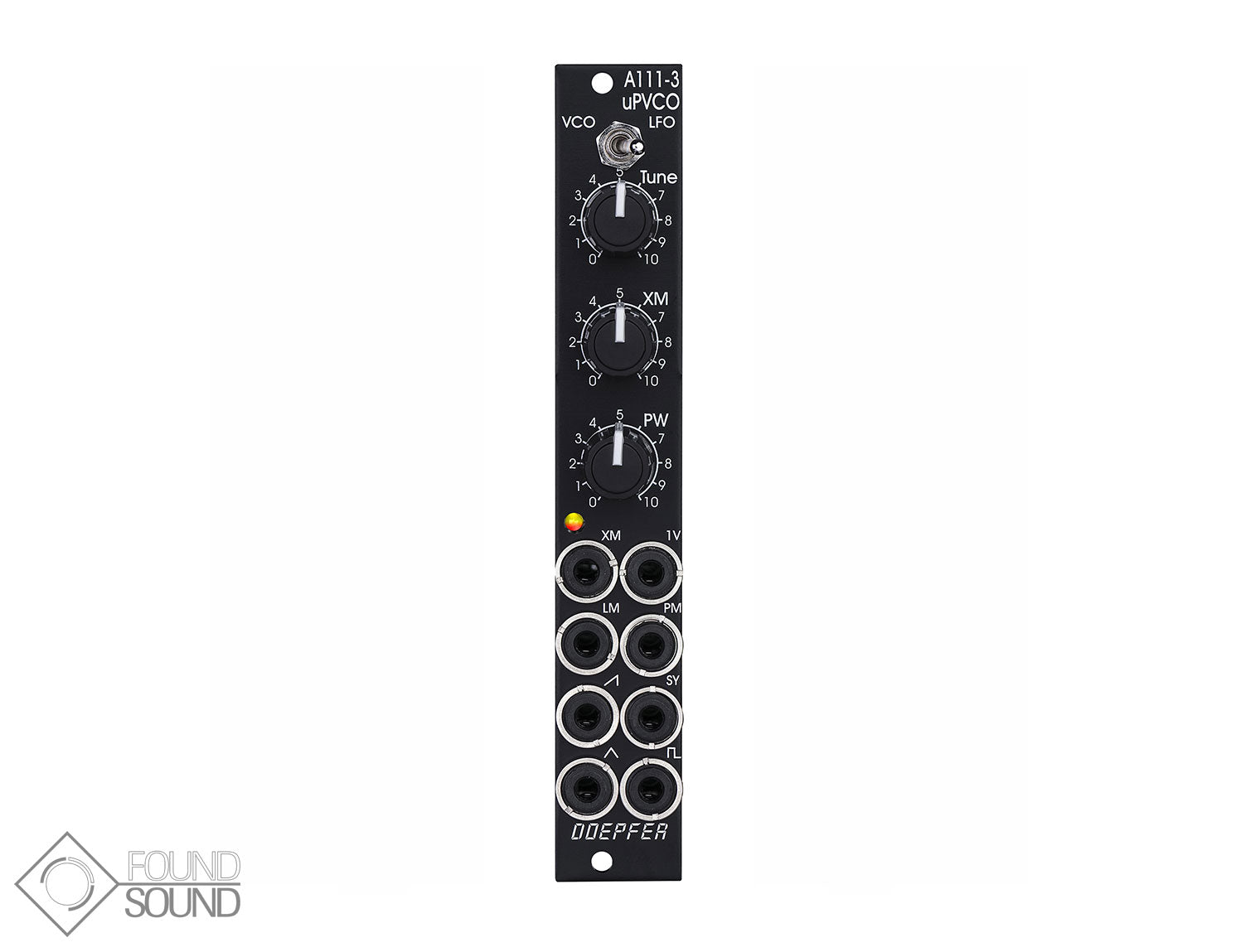

Module A-111-3 is an extremely space-saving precision VCO/LFO with a 4HP panel only. Essentially it's the same basic circuit as the A-111-2 but with reduced features:
- Triangle core
- Fully analog design
- Min. 15 octaves pitch range in each mode (VCO/LFO):
- VCO mode: typ. 0.5 Hz - 20 kHz (with appropriate external CV)
- LFO mode: typ. 0.001 Hz - 40 Hz (with appropriate external CV)
- Range switch so that the module can be used as VCO or LFO (in LFO mode all frequencies about 1/500 compared to VCO mode)
- About 24 octaves total in both modes (typ. 0.001 Hz - 20kHz)
- Perfect 1V/octave tracking over min. 10 octaves (typ. 16Hz - 16kHz in VCO mode)
Brand new with warranty.
Product Specs
- Item Number: 9489
- Make: Doepfer
- Model: A-111-3V Micro Precision VCO Vintage Edition
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: LFO Oscillator
- Made In: Germany
- MPN: A-111-3V
- EAN: 4250711111113
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 4 HP 65 mm deep
- Power*: 40 mA +12V 40 mA -12V 0 mA 5V
* User contributed details
