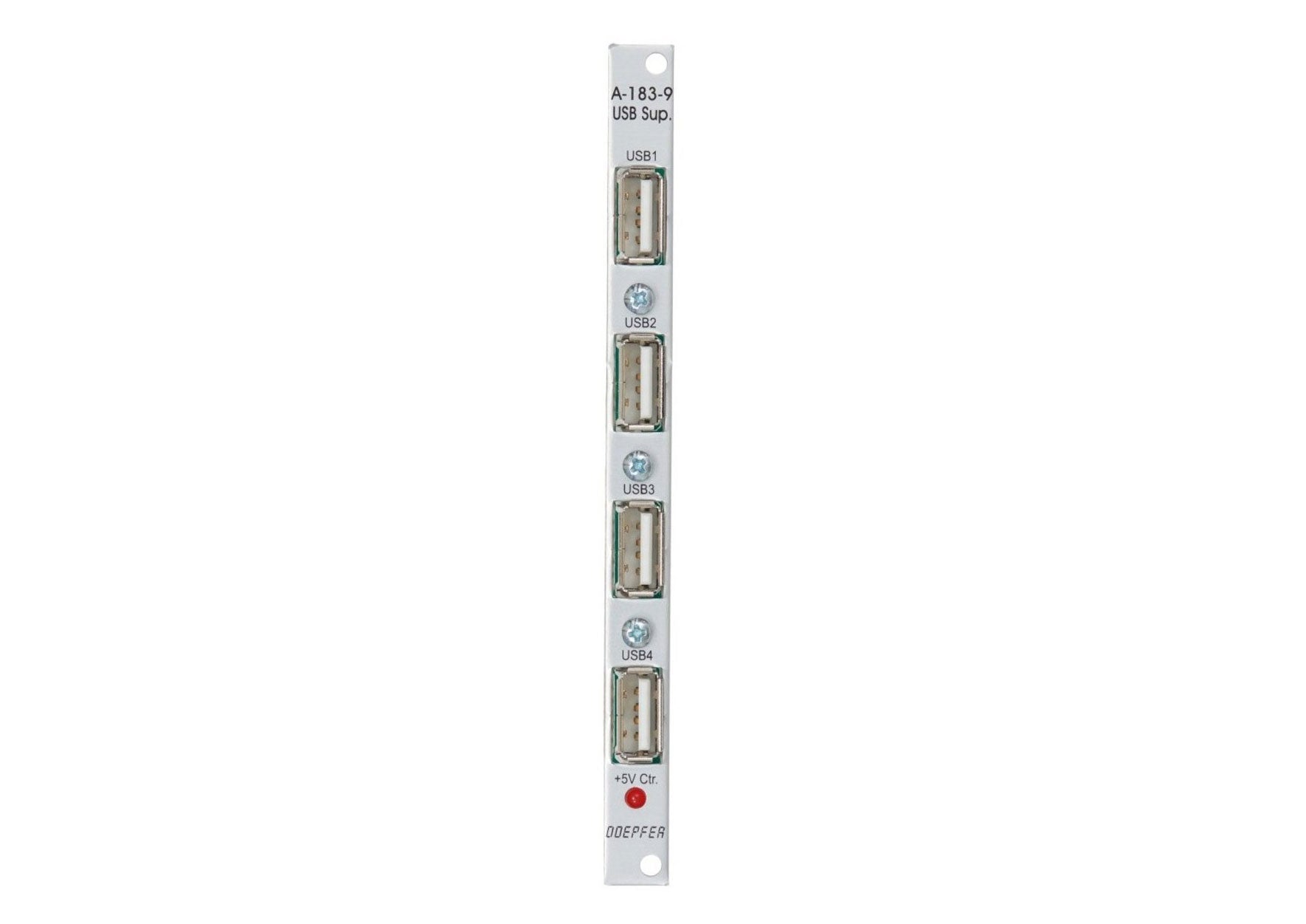

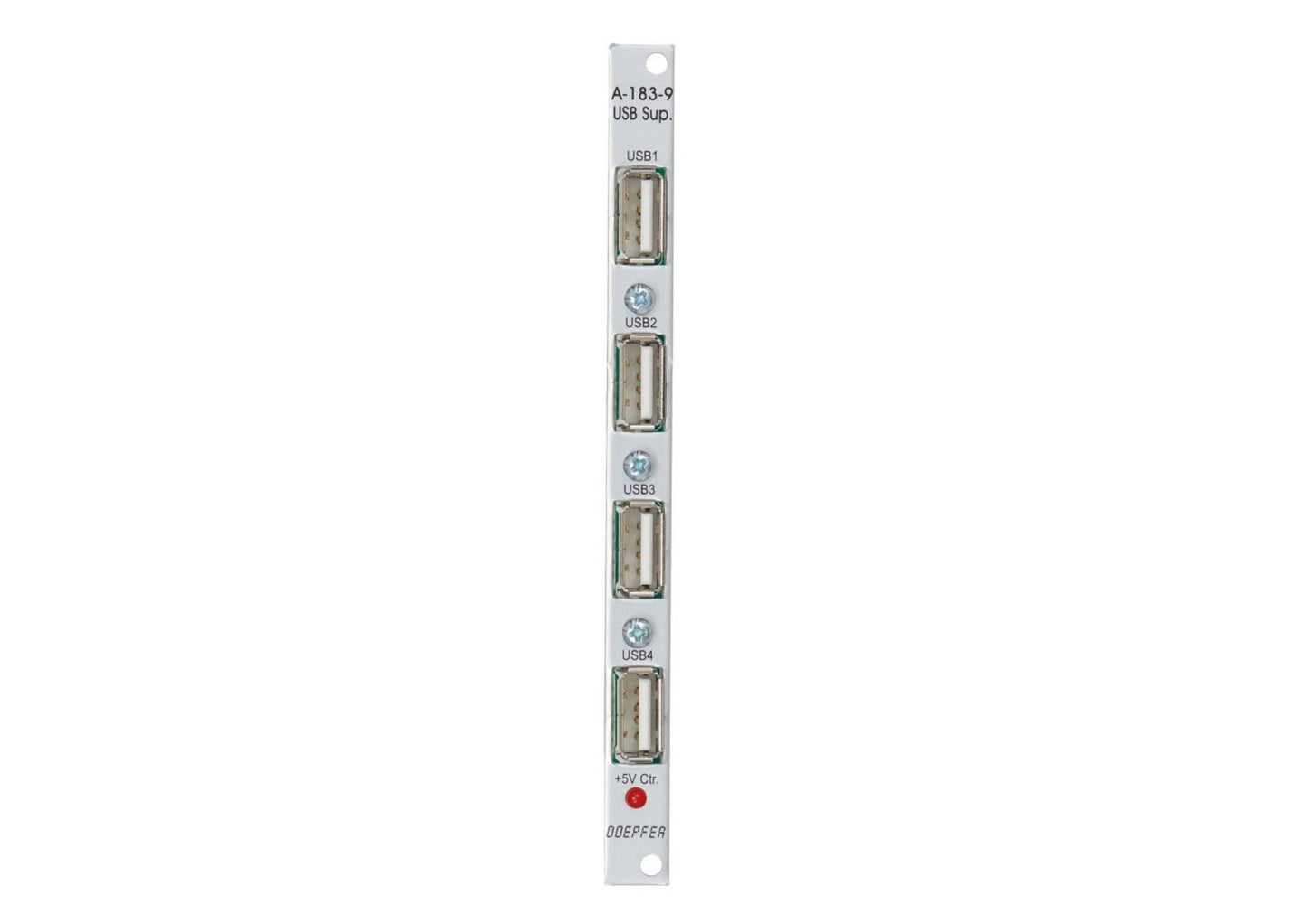

Doepfer A-183-9 Quad USB Supply

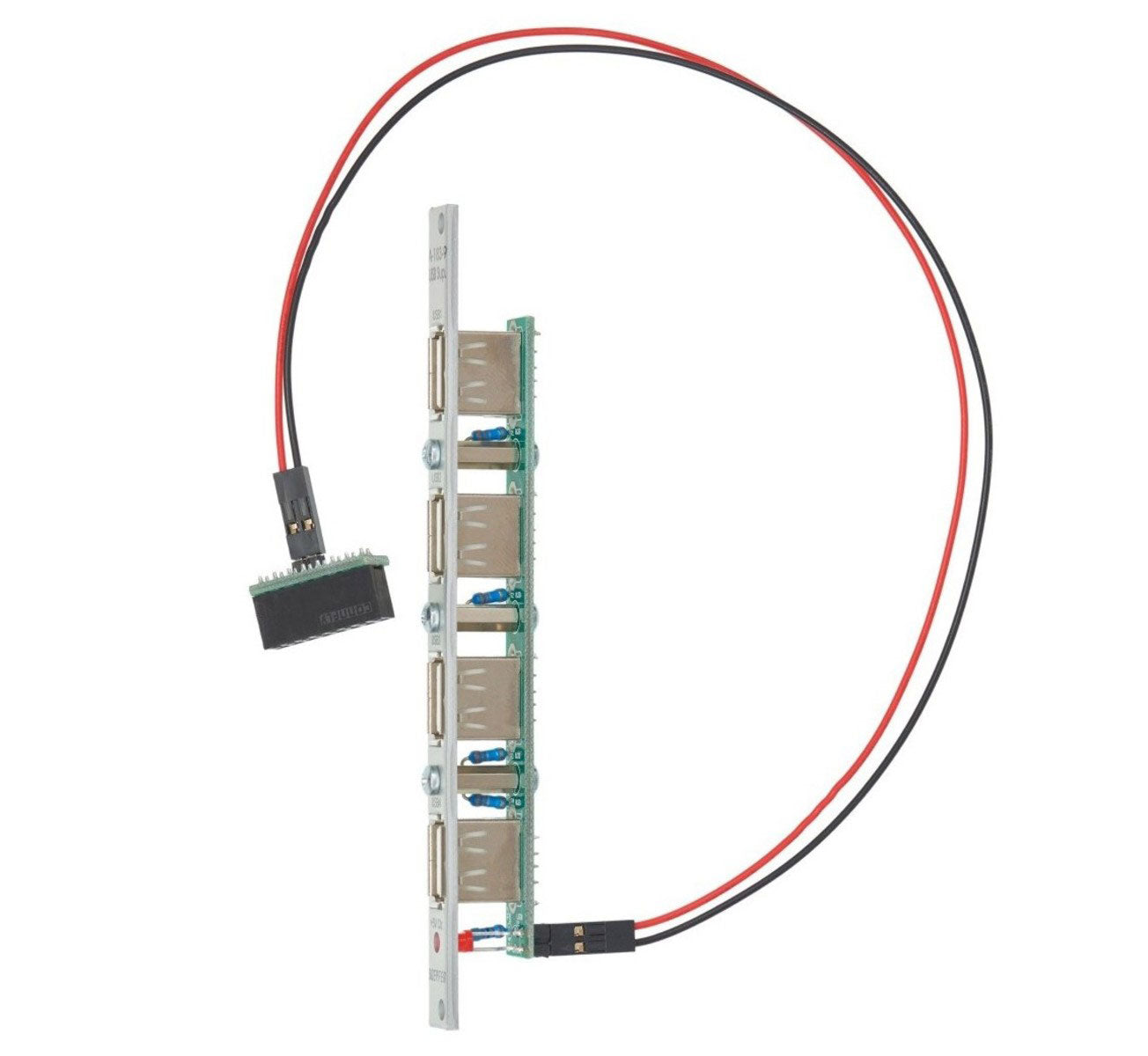

Doepfer Module A-183-9 is a simple power supply for up to four devices which can be powered or charged via USB (eg keyboards, smartphones). The module has no USB function but provides only the + 5V supply for USB devices. A control LED shows if the + 5V voltage is present.

Note: The module requires A-100 case with built-in power supply A-100PSU3 ! Only this A-100 has the required + 5V available. A-100PSU2 as this would require the + 5V adapter A-100AD5 and the max. current would be limited to 100mA

Product Specs

• Item Number: 8450
• Make: Doepfer
• Model: A-183-9 Quad USB Supply
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Power Quad Utility
• Made In: Germany
• MPN: A-183-9
• EAN: 4250711118396
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 2 HP 30 mm deep
• Power*: 0 mA +12V 0 mA -12V 1000 mA 5V

* User contributed details
