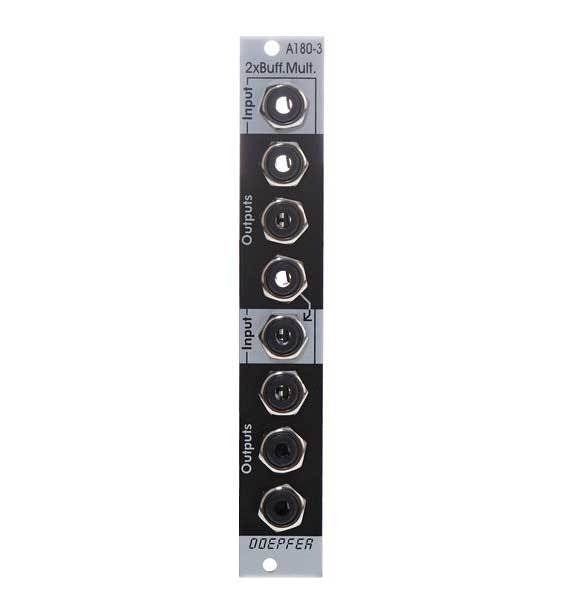

Doepfer A-180-3 Dual Buffered Multiple

Module A-180-3 is a two-fold, buffered 1-in-3 multiple. The signal supplied at the input appears buffered at each of the 3 outputs. Each output has its own buffer circuit, which is independent of the other two (ie not just 3 connected jacks as with other buffered multiples). The lower output of the upper multiples is factory-set to the input of the lower multiples so that the module operates as a 1-in-6-multiple when no signal is applied to the input of the lower unit. Optionally, however, the bus CV can also be supplied here.

Product Specs

• Item Number: 8402
• Make: Doepfer
• Model: A-180-3 Dual Buffered Multiple
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Multiple Dual/Stereo
• Made In: Germany
• MPN: A-180-3
• EAN: 4250711118037
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 20 mm deep
• Power*: 20 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
