A sound source for generating subharmonic minor-chords like in the Trautonium. It contains four parallel frequency dividers with factor 1-24, which derive fixed partial frequencies - the so called subharmonics - out of the frequency of an external master VCO. The module has 50 memory banks each for 4 mixtures, i.e. mixes of partial frequencies.
Brand new with warranty.
Video: https://youtu.be/vt_TxMLAH8w
Product Specs
- Item Number: 8395
- Make: Doepfer

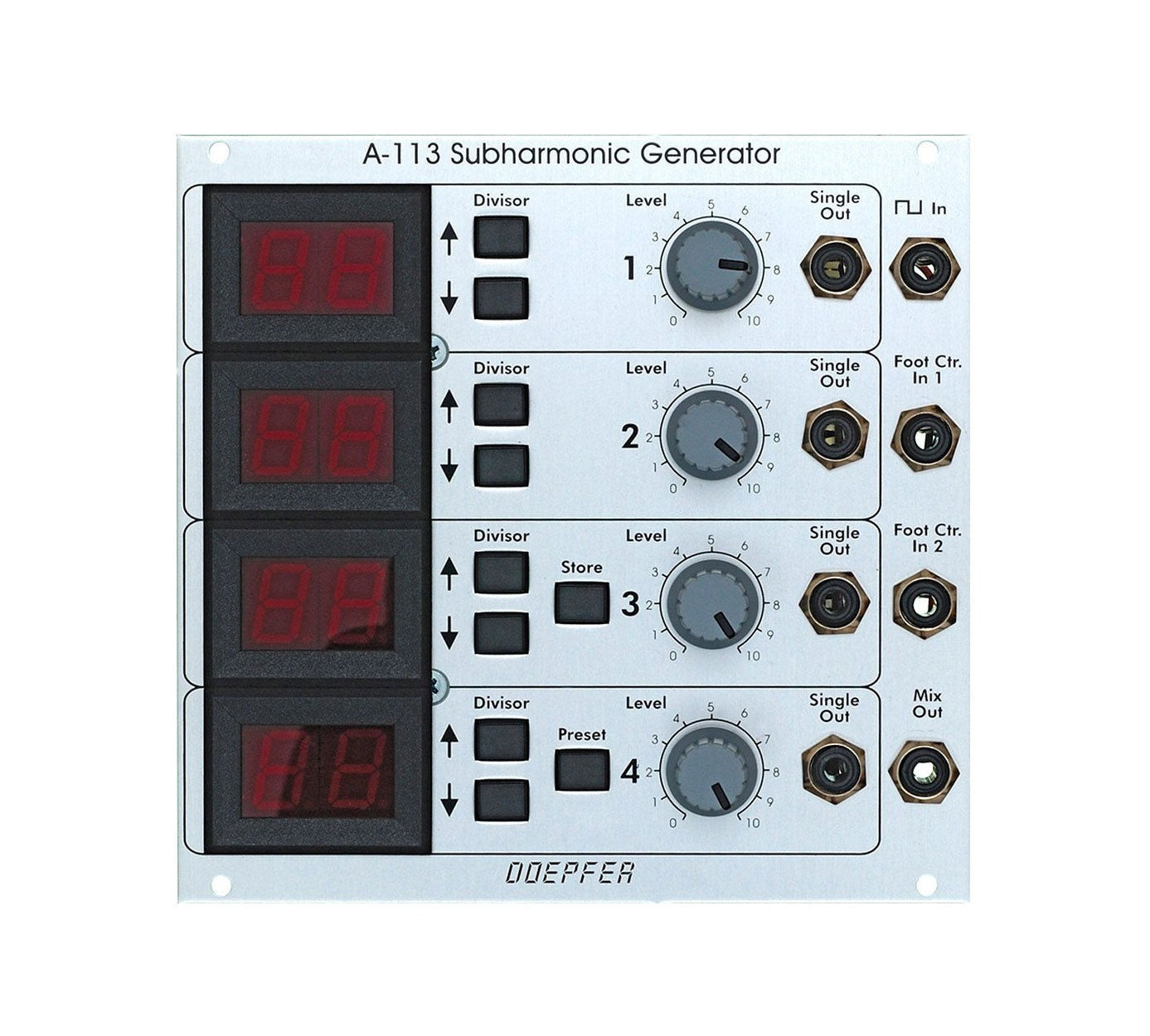

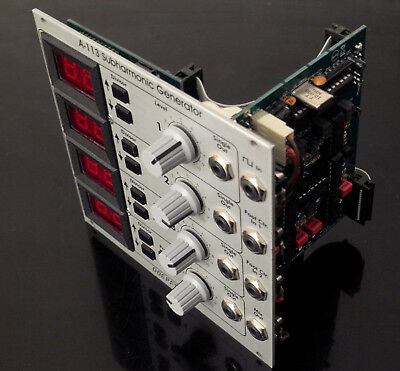

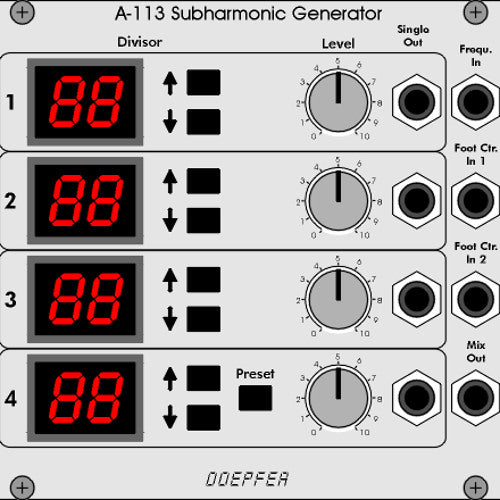

- Model: A-113 Subharmonic Generator
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Waveshaper Frequency Divider
- Made In: Germany
- MPN: A-113
- EAN: 4250711111304
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 26 HP 90 mm deep
- Power*: 120 mA +12V 10 mA -12V 0 mA 5V
* User contributed details
