* This item is not currently in stock, orders will be fulfilled when the item becomes available.

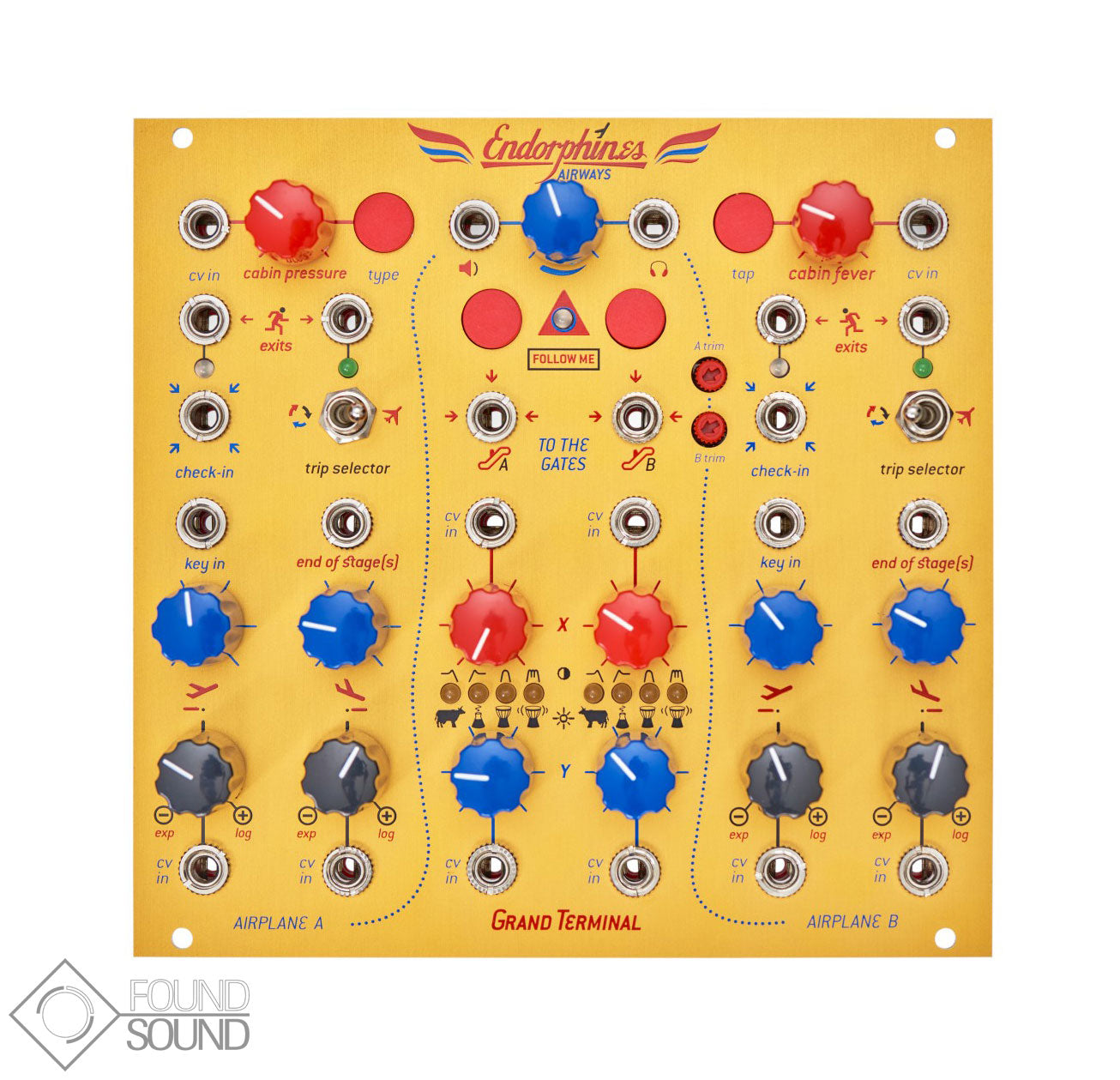

The Grand Terminal features two voltage controlled gates with 8 resonant filter modes (ladder, diode, lpg, state variable, comb) chained in dual, stereo or serial combination each with own volume and panning. Cabin pressure processor with 8 selected cabin fever effects dual voltage controlled AD / AR / looping envelope generators with arbitrary voltage controlled slope shapes: from EXP to LIN to LOG without stretching the length of a certain slope. 1 volts per octave control over envelopes in looping mode (to use the envelopes as band-limited oscillators). Dedicated stereo and mono outputs to connect headphones, to route into the cockpit (our new mixer modules) or record into your sound blaster. Easy firmware update via USB on PC / MAC compatible with any gateway.
Brand new with warranty.
Video: https://youtu.be/LVwxQCmaF6s
Product Specs
- Item Number: 7470
- Make: Endorphin.es
- Model: Grand Terminal - Gold
- Condition: Brand New
- Finish: Gold
- Categories: keyboards-and-synths ā eurorack
- Function: Filter Function Generator Low Pass Gate Dual/Stereo Effect Envelope Generator Panning VCA
- Made In: Spain
- MPN: EGT
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 26 HP 25 mm deep
- Power: 230 mA +12V 65 mA -12V 0 mA 5V
