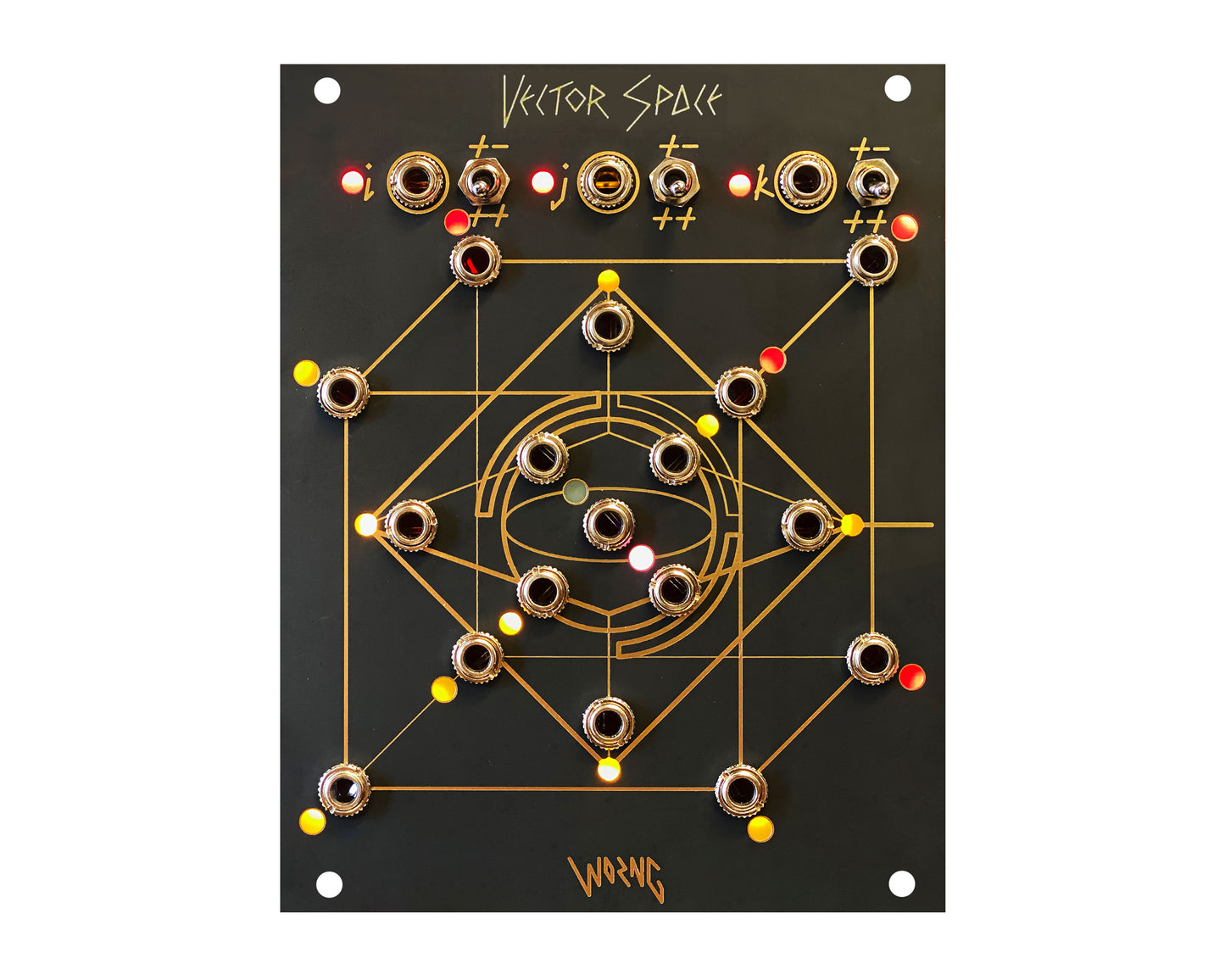

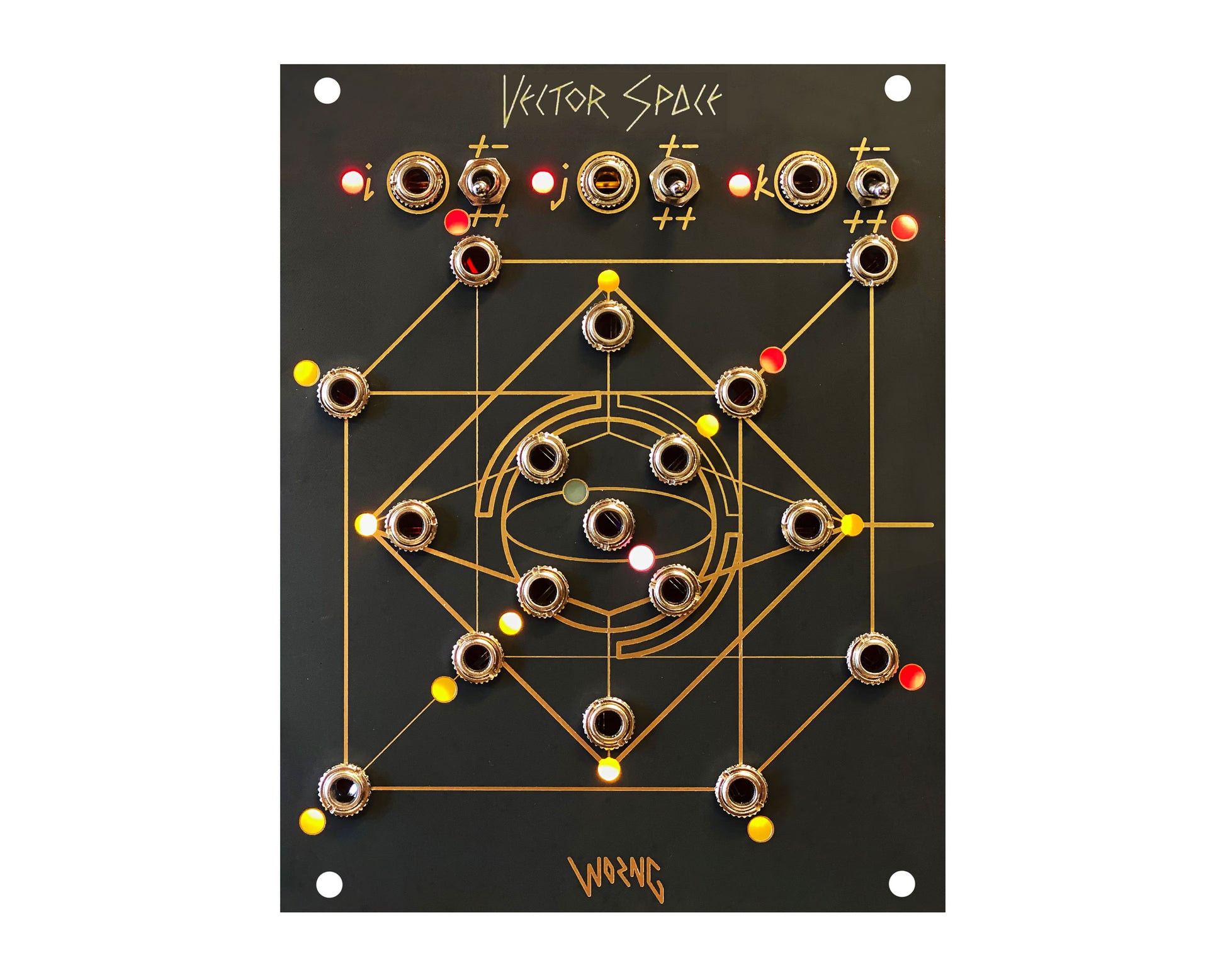

Vector Space is a 20HP CV Mixer building upon the concept of spatial CV mixing pioneered by the Wiard JAG and goes one step further by working in three dimensions, as well as adding additional complex outputs, allowing you to generate seventeen interrelated voltages from three CV inputs, using 100% analogue circuitry.
Generate a large number of complex modulations from a small number of simple sources, and vastly increase the amount of modulation you have in your system. For example, the user could run three sequencers or stepped voltages to the inputs and then run the plane outputs to a number of VCO frequency inputs for complex countermelodies, run LFOs or random voltages in to get complex modulation voltages out, it works particularly well feeding the outputs back to modulate the speed/shape/etc of what's being fed in, things can get very complex very quickly. The switches shift the expected input range from +/-5V to 0/10V to use with either bipolar or unipolar sources, or use the switches as another input source by switching them in real time.
- Width: 20HP
- Depth: 25mm
- Current Draw:
- +12V: 150mA
- -12V: 120mA
- +5V: 0mA
Video: https://youtu.be/f-qB50NA-rY
Product Specs
- Item Number: 7438
- Make: Worng
- Model: Vector Space
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: CV Modulation Mixer Polarizer
- Made In: United Kingdom
- MPN: WRNG-VS
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 20 HP 25 mm deep
- Power: 150 mA +12V 120 mA -12V 0 mA 5V
