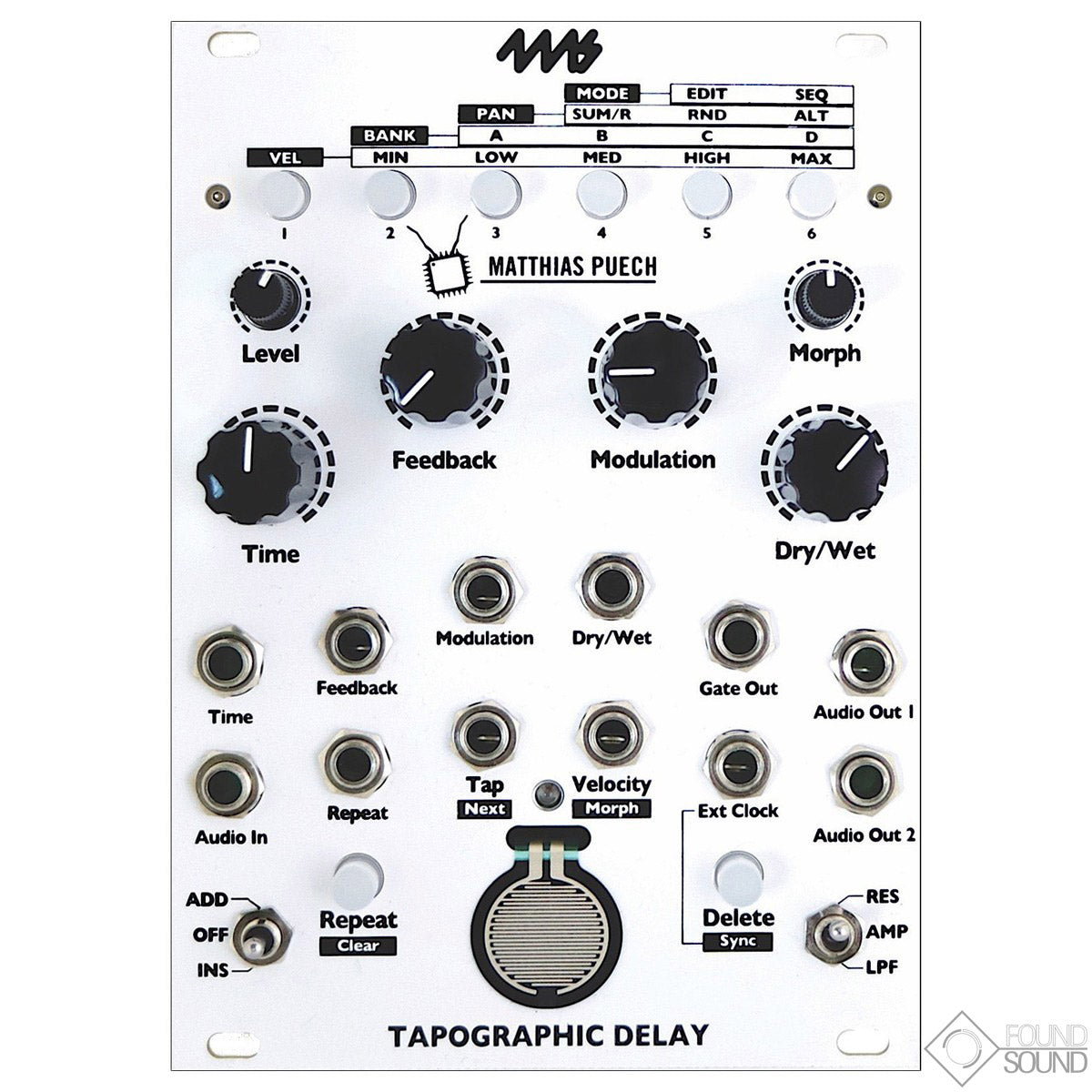

The Tapographic Delay from 4MS and Matthias Puech is a unique take on the concept of multi-tap delay, featuring a velocity-sensitive force sensor to tap the delay configurations; up to 32 taps, each with its own delay time, amplitude, and panning; per-tap filter: low-pass or resonant (pingable) band-pass; morphing between delay configurations, with adjustable morph time; two different feedback paths: a Repeat toggle and a Feedback knob; 4 banks of 6 slots to save and recall delay configurations; a tapography sequencer with forward, random walk or random directions; synchronization to an external clock; a Gate output that plays the current rhythm of delays; a maximum delay time of 174 seconds (almost 3 minutes); 16 bits/48kHz with 32 bits floating-point internal processing, 1.3ms software latency, with Mono in & stereo out. Made in the USA.
Video: https://youtu.be/DqBMy8oba9g
Product Specs
- Item Number: 6537
- Make: 4ms
- Model: Tapographic Delay
- Condition: Brand New
- Finish: White
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Delay Digital Effect Dual/Stereo Filter Reverb
- Made In: United States
- MPN: TAPO
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 18 HP 25 mm deep
- Power: 125 mA +12V 32 mA -12V 0 mA 5V
