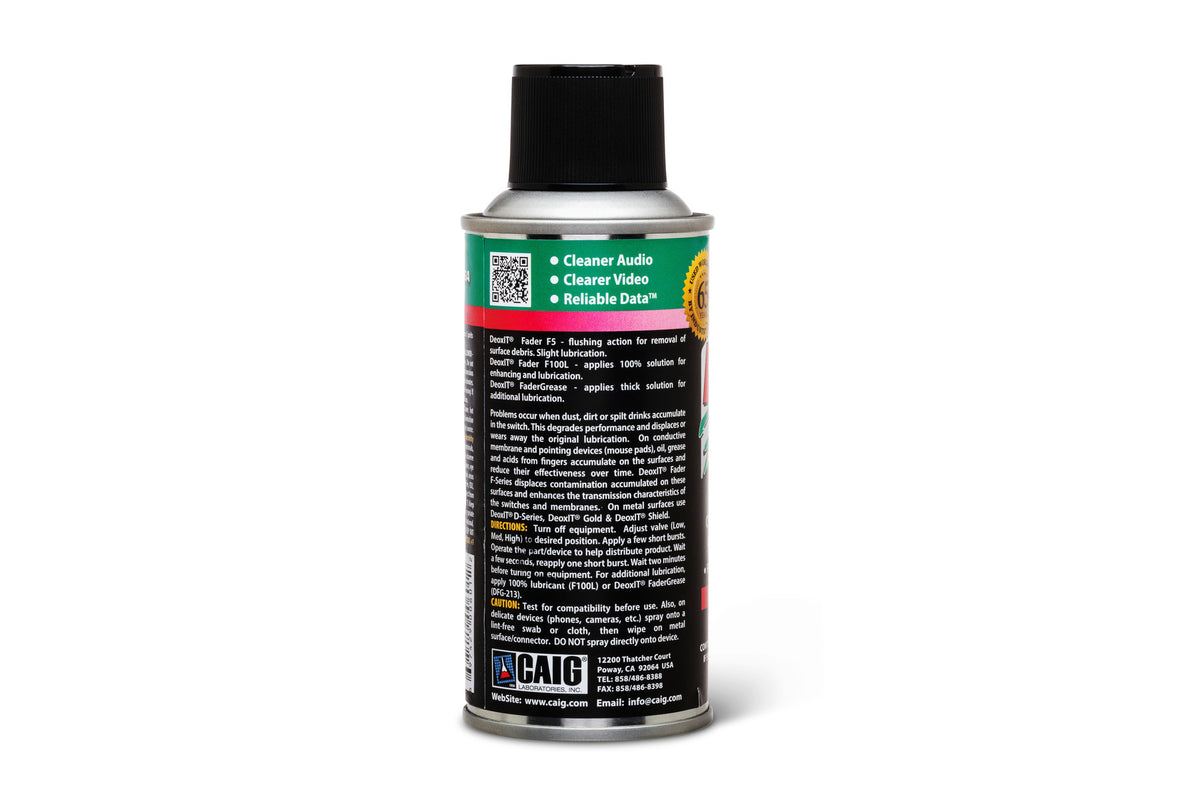

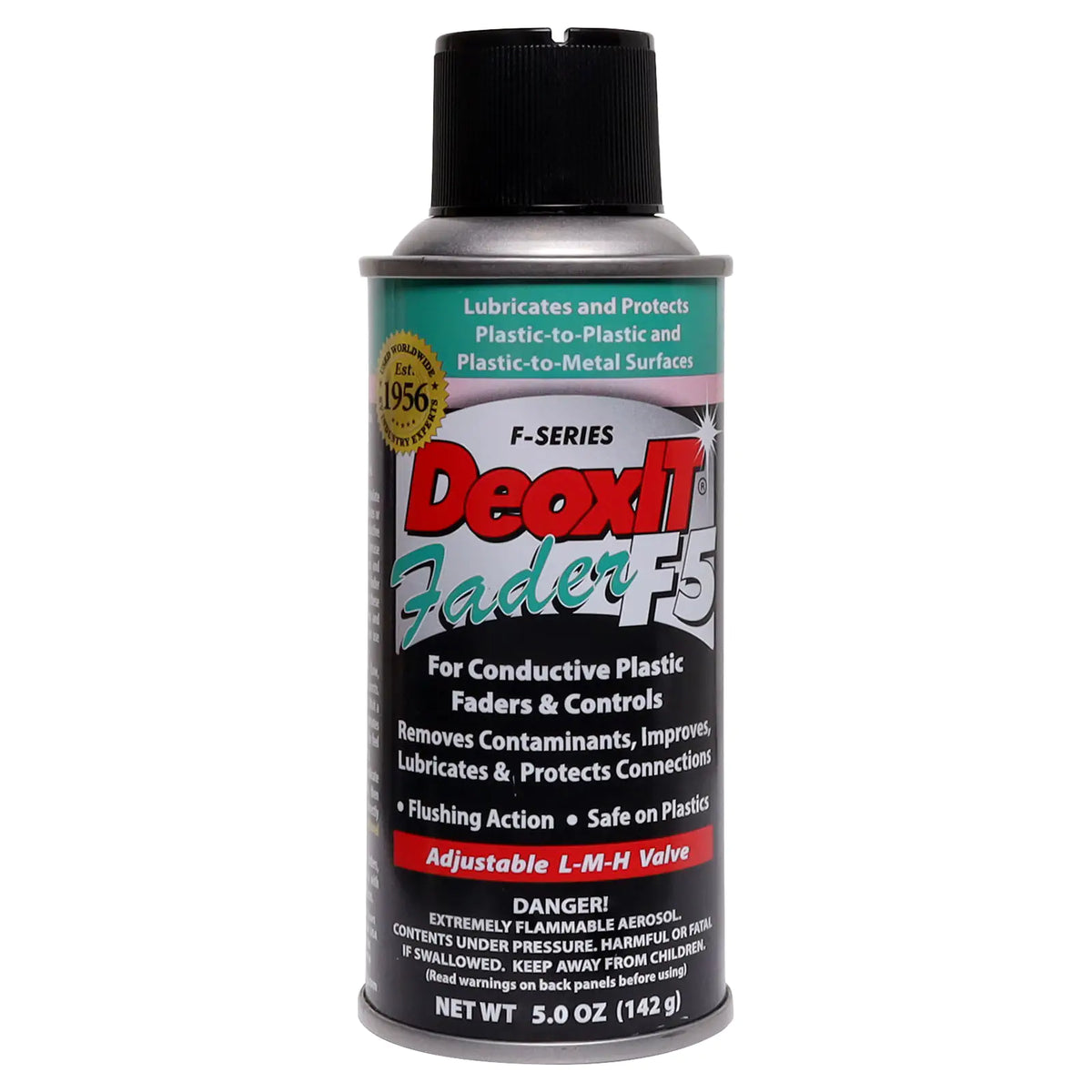

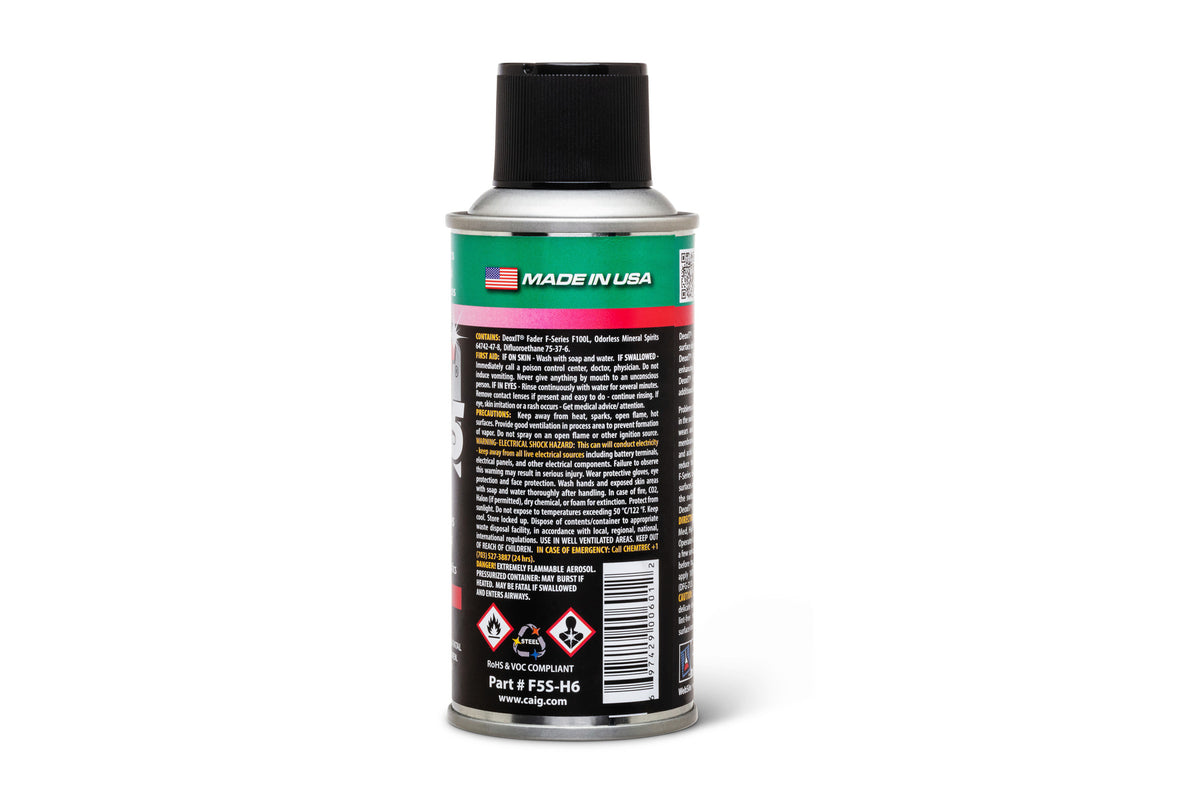

CAIG DeoxIT F5 Fader Lubricant - 5% Solution (142g)

CAIG DeoxIT F5 Fader Lubricant - 5% Solution (142g)

PRE ORDER
$49.00 AUD
$49.00 AUD
Taxes included. Shipping calculated at checkout.

Out of stock

DeoxIT® Fader F-Series is a precision lubricant and treatment for moving contact surfaces, including conductive-plastic faders, switches, potentiometers and other sliding mechanisms. It replenishes lubrication lost through wear or repeated cleaning, helping to reduce abrasion and maintain the original tactile feel of controls.

It is also suitable for conductive membrane switches and components. Oils, grease and acids transferred through repeated finger contact can build up on membrane surfaces and contribute to malfunction. DeoxIT® Fader forms a long-lasting protective layer that helps keep these contaminants away from the plastic membrane surface.

This F5S-H6 spray formulation uses an adjustable low/medium/high valve and a slower-evaporating carrier solvent for flushing away surface dirt, grease and other contaminants. It is best suited to connectors and components that have been removed from equipment or are readily accessible, where overspray is not a concern.

Features

  • Formulated for conductive-plastic controls and moving contacts
  • Helps maintain optimum signal quality
  • Replenishes lost lubrication
  • Maintains tactile feel
  • Reduces wear and abrasion
  • Approximately 1% cleaning action
  • Operating temperature range: -26°C to +150°C

Specifications

  • Part No.: F5S-H6

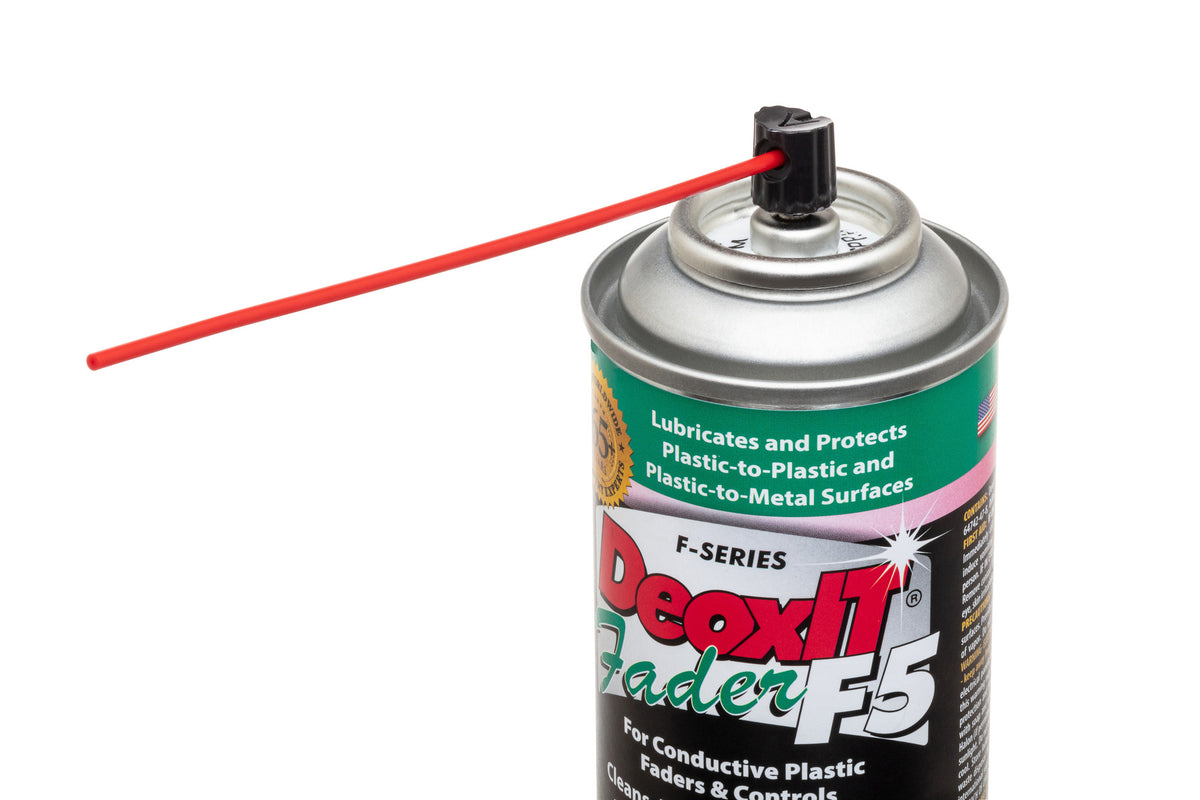

  • Applicator: Spray with flushing action
  • Valve: Adjustable low/medium/high output
  • Formulation:
  • 5% DeoxIT® Fader active ingredient
  • 75% odourless mineral spirits carrier solvent
  • 20% propellant
  • Flammability: Briefly flammable until solvent evaporates, approximately 2–3 minutes
  • Plastic compatibility: Formulation is safe on plastics; test for compatibility before use, particularly on critical or sensitive parts and vintage equipment with ageing ABS plastics.
  • Rubber compatibility: May cause temporary swelling until the solvent has evaporated.

For a quick-dry, non-drip spray, use DeoxIT® Fader FN5S-2N. For greater tactile feel, apply DeoxIT® Fader Grease after cleaning with DeoxIT® Fader F-Series.

Where fader components may include metal as well as plastic, DeoxIT® D-Series D100S-2, containing 100% DeoxIT®, is recommended.

Video: https://youtu.be/tWszZvwI6lQ
