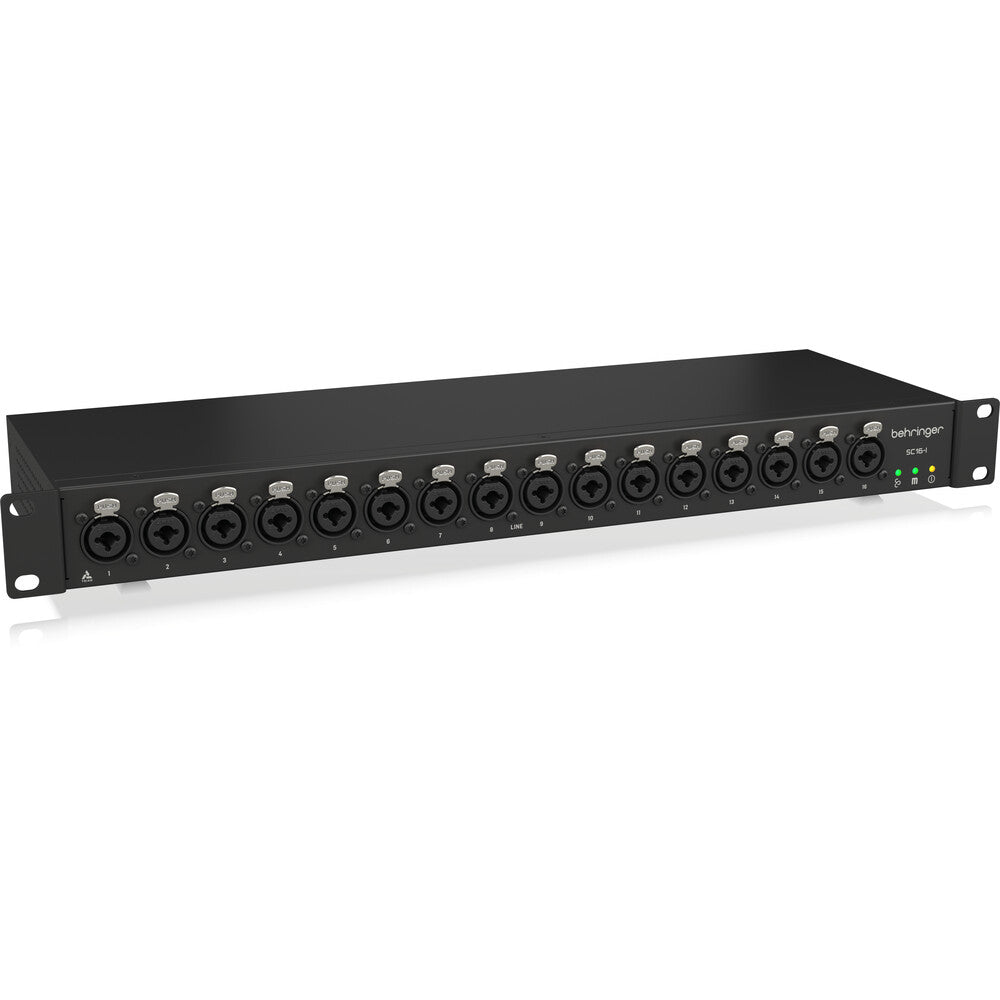

Behringer SC16-I StageConnect Interface

Behringer SC16-I StageConnect Interface

PRE ORDER
$499.00 AUD
$499.00 AUD
Taxes included. Shipping calculated at checkout.

Out of stock

The SC16-I provides a 16-channel analogue front end for StageConnect systems, carrying up to 16 sources over a single StageConnect cable.

Channels 1–8 feature TRIAD microphone preamps on balanced combo inputs, suitable for microphones and instruments. Each channel has individually switchable 48 V phantom power. Channels 9–16 provide eight balanced line-level combo inputs, accepting either XLR or TRS connections.

The integrated TRIAD preamps offer high common-mode rejection for reduced noise, stable operation across a wide range of source impedances, and precise analogue gain adjustment in 0.5 dB steps. Preamp gain and parameters can be controlled remotely from a StageConnect-enabled console or via the desktop control panel over USB.

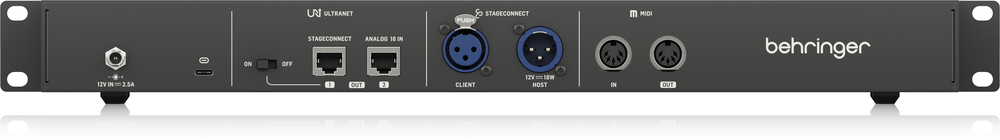

Ultranet input and output ports allow the SC16-I to integrate with Ultranet receivers from Midas, Behringer, Klark Teknik and Turbosound, supporting personal monitoring and processing directly from the stage. The unit can also transmit MIDI input commands to compatible Behringer StageConnect products, including the SC-U USB interface, allowing audio and MIDI control data to share the same infrastructure.

Features

  • 8 TRIAD mic preamps on channels 1–8
  • Balanced combo inputs for channels 1–8, accepting microphones and instruments
  • Individually switchable 48 V phantom power on channels 1–8
  • 8 balanced line-level combo inputs on channels 9–16
  • XLR and TRS compatibility on channels 9–16
  • TRIAD preamps with high common-mode rejection and stable impedance performance
  • 0.5 dB analogue gain steps for precise level adjustment
  • Remote preamp control via StageConnect-enabled consoles or USB desktop control panel
  • Ultranet input and output ports
  • Remote power delivered over the StageConnect cable
  • MIDI input command transmission to compatible Behringer StageConnect devices
