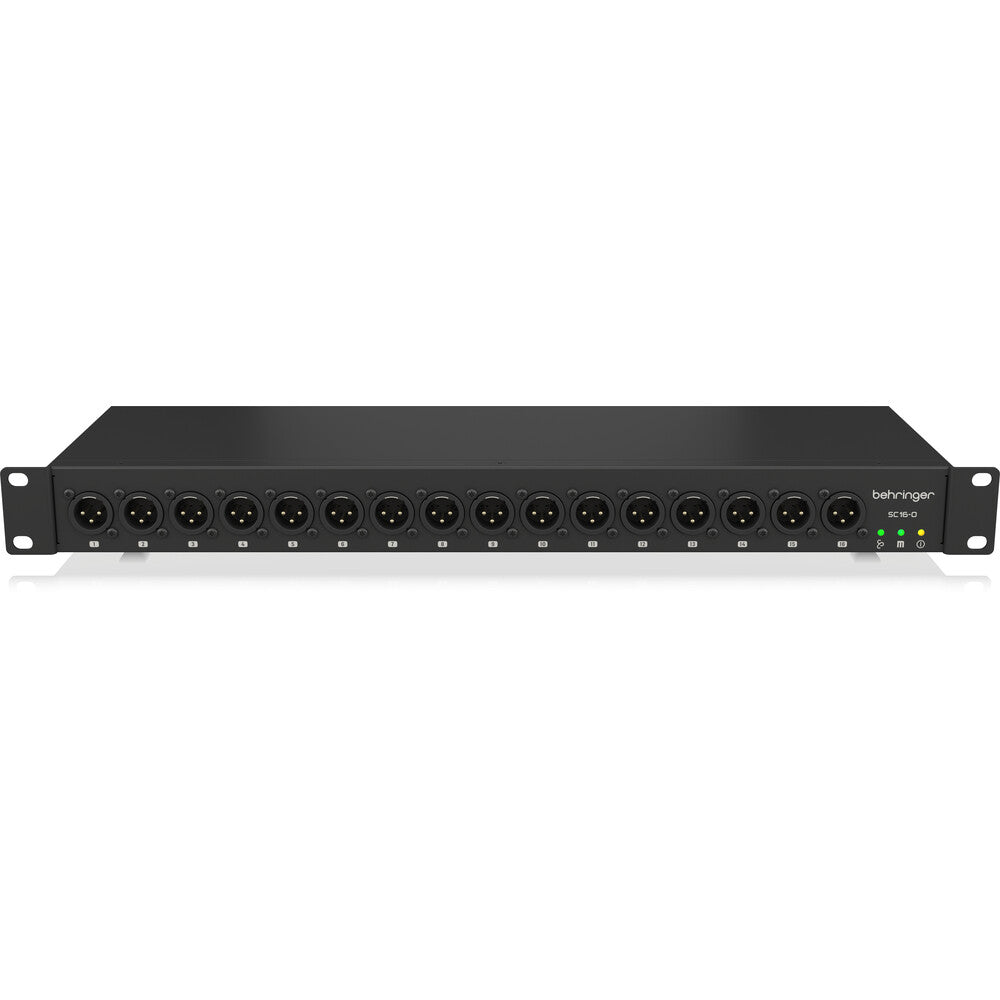

Behringer SC16-O 16-Out StageConnect Interface

SC16-O brings 16 channels of StageConnect audio into the analogue domain via 16 balanced XLR line outputs, using high-performance ESS DAC conversion. It is suited to feeding amplifiers, monitor systems, broadcast lines or a second console from a single StageConnect connection.

Audio, control data and up to 12 VDC / 18 W of remote power are carried over the same XLR cable, reducing cabling and local power requirements.

The SC16-O can operate as either a StageConnect Host, providing word clock and power to the bus, or as a Client, synchronising to an external clock source via the StageConnect bus or Ultranet input.

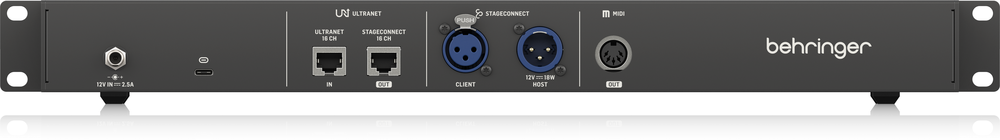

Ultranet input and output ports allow integration with Ultranet personal monitoring and processing systems, enabling StageConnect audio to move between both ecosystems without additional conversion. The unit also transmits MIDI output commands from compatible Behringer StageConnect products, including the SC-U USB interface.

Features

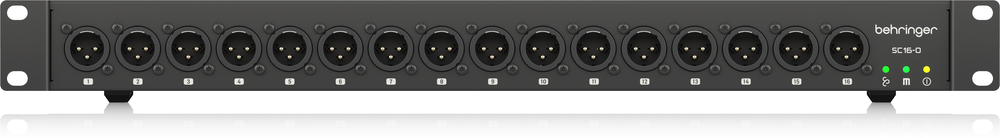

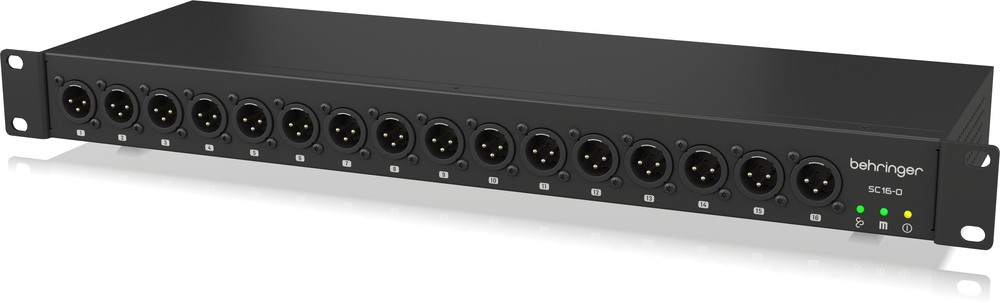

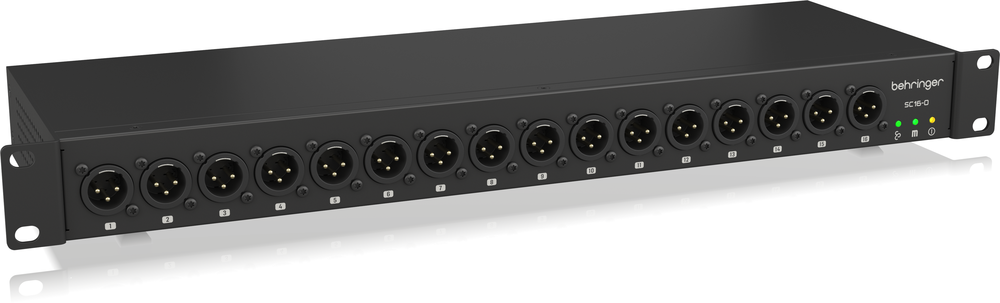

• 16 balanced XLR line outputs
• High-performance ESS DAC conversion
• StageConnect 32-channel bidirectional audio transmission
• Sub-millisecond latency at 44.1 kHz or 48 kHz, 24-bit operation
• StageConnect transmission via standard 3-pin XLR or DMX cable; microphone cable may be used for short distances
• 12 VDC / 18 W remote power carried via StageConnect connection
• Operates as a StageConnect Host or Client
• Ultranet input and output ports
• Compatible with StageConnect devices from Midas, Behringer and Klark Teknik
• Transmits MIDI output commands from compatible Behringer StageConnect devices, including the SC-U USB interface

Product Specs

• Item Number: 44063
• Make: Behringer
• Model: SC16-O StageConnect Interface
• Condition: Brand New
• Finish: Black
• Categories: pro-audio ⇒ interfaces
• Made In: China
• MPN: 0606-AED86-AU1
