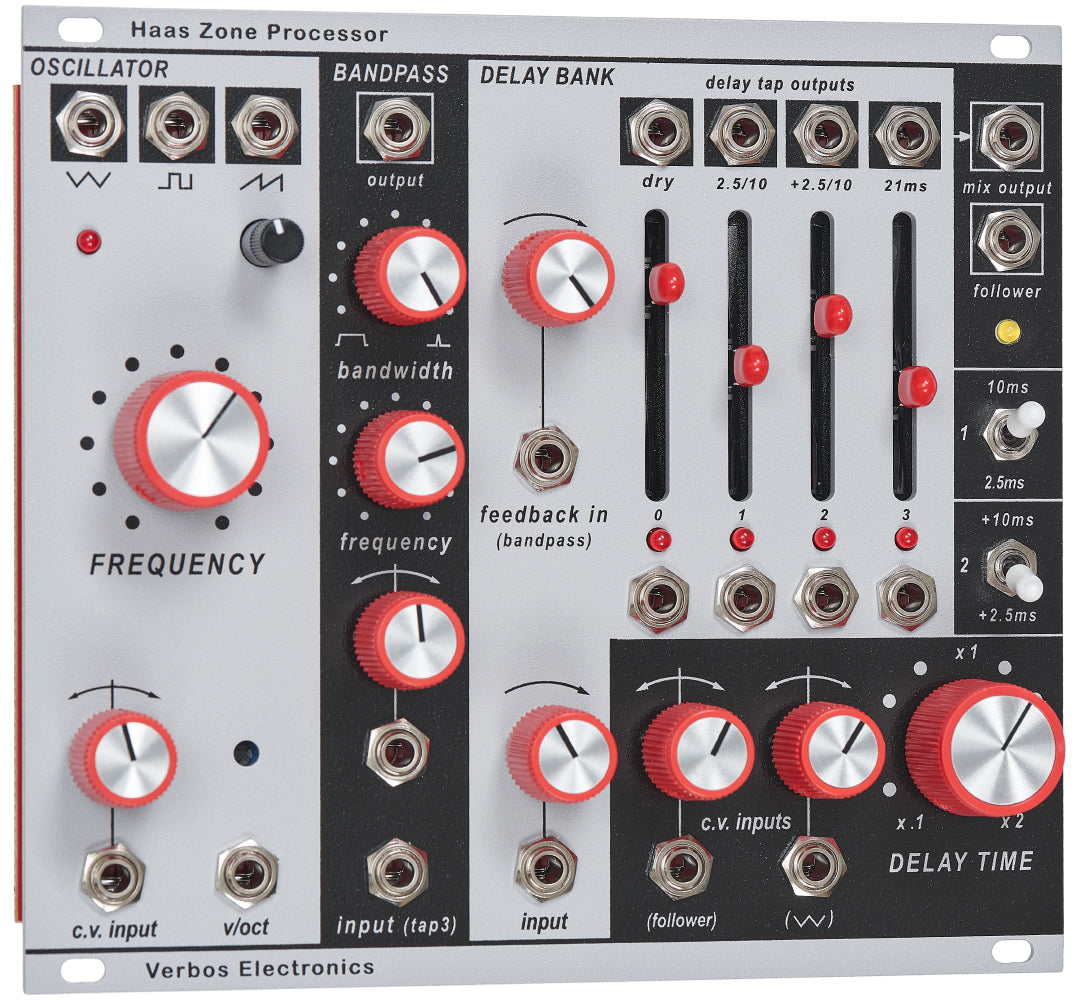

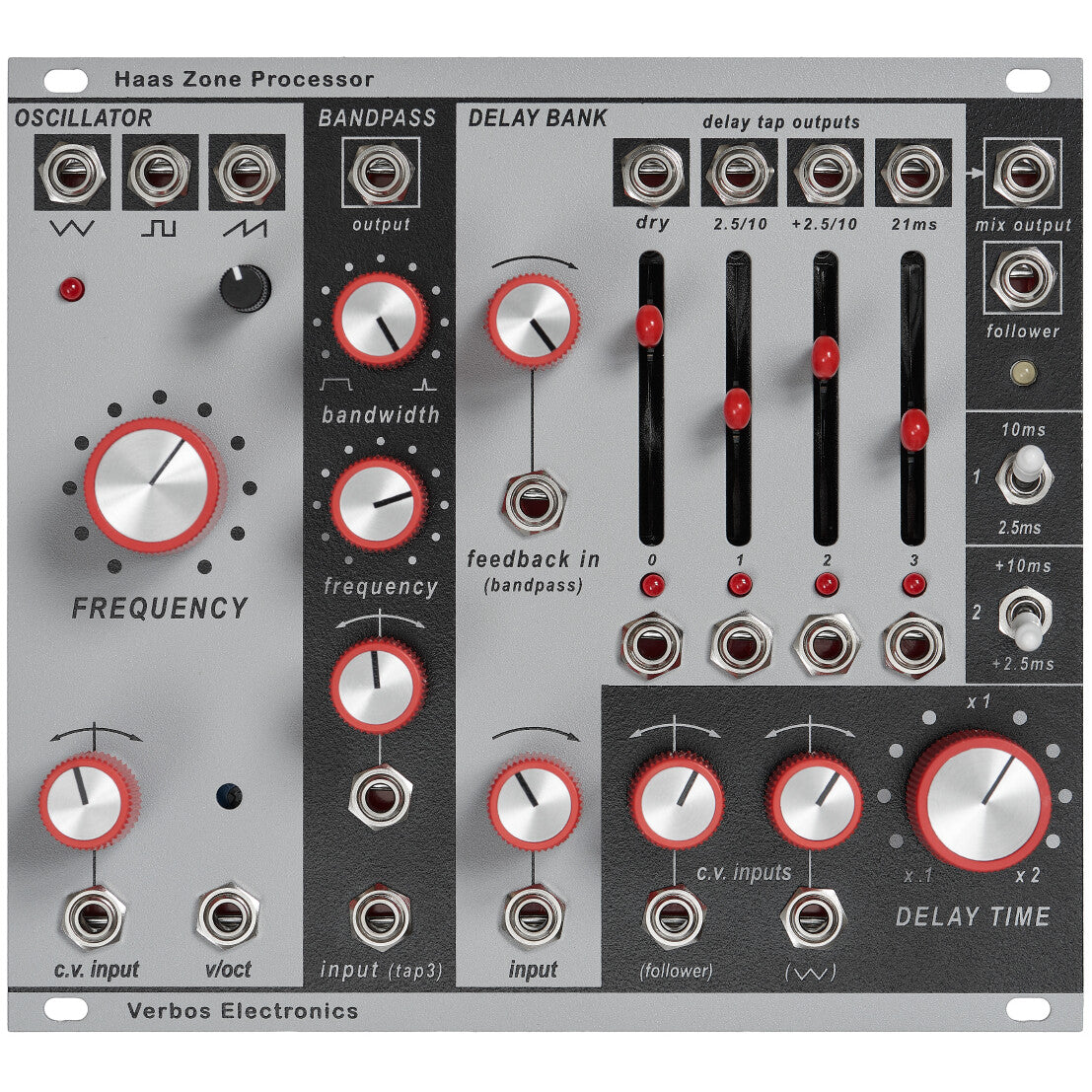

Verbos Electronics Haas Zone Processor

The Haas Zone Processor is a multi-tapped digital delay bank with analogue clocking, designed for psychoacoustic short-delay processing. Its 1–42 ms delay range and three tap outputs support flanging, chorus, automatic double tracking, resonance, waveshaping and audio-rate effects.

Alongside the delay section, the module includes a fully featured VCO, analogue bandpass filter and voltage-controlled mixer. These sections can be combined for complex time-domain processing or used to create a voice in their own right. In normalised configuration, adjusting the oscillator frequency, bandpass frequency and delay time allows several resonant frequencies to be brought into focus.

Inspired by vintage studio processors including the Marshall Time Modulator, the Haas Zone Processor also incorporates adapted versions of several of Martin Hannett’s personal patches.

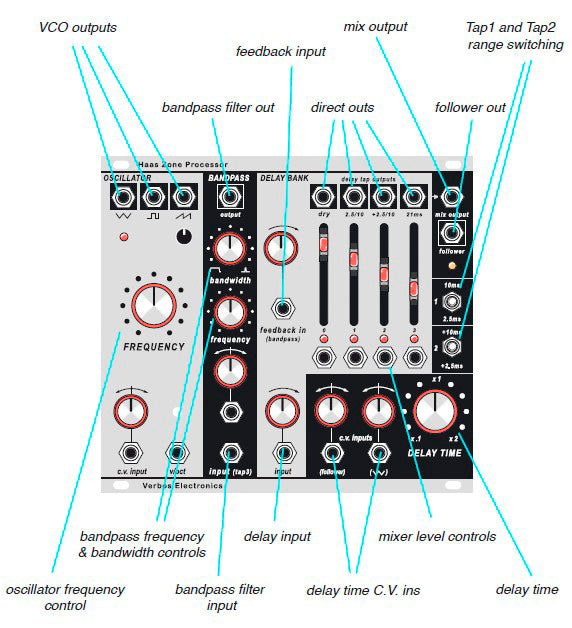

Features

• Multi-tap digital delay with analogue clocking
• Delay range of 1–42 ms
• Three delay outputs with internal tap mixer
• Suitable for short delays, chorus, flanging, audio-rate effects, waveshaping, filtering and voice duties
• VCO with three analogue waveform outputs
• VCO operates at LFO and audio rates
• Analogue bandpass filter with adjustable frequency and bandwidth
• Internal modulation sources include VCO and envelope follower
• CV inputs for delay time, VCO and filter parameters

Video: https://youtu.be/DD3GM97YtGI

Product Specs

• Item Number: 43949
• Make: Verbos Electronics
• Model: Haas Zone Processor
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Effect Delay Envelope Follower Filter Oscillator Waveshaper
• Made In: Germany
• MPN: VEHZP
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 28 HP 25 mm deep
• Power*: 110 mA +12V 55 mA -12V 0 mA 5V

* User contributed details
