EarthQuaker Devices Easy Listening Stereo Amp Simulator w/ Headphone Output

The EarthQuaker Devices Stereo Easy Listening is an all-analogue stereo amplifier and cabinet simulator designed for direct recording, live performance and headphone practice. Positioned at the end of a pedalboard or signal chain, it provides amp-style voicing and speaker cabinet simulation without digital modelling, impulse responses or conversion latency.

Its core sound is based around the warm, mid-scooped character of a classic American amplifier, with an active three-band EQ providing independent Bass, Middle and Treble control. The analogue design offers high headroom for use with effects pedals and can also be used after a digital modeller to add analogue amp and cabinet character.

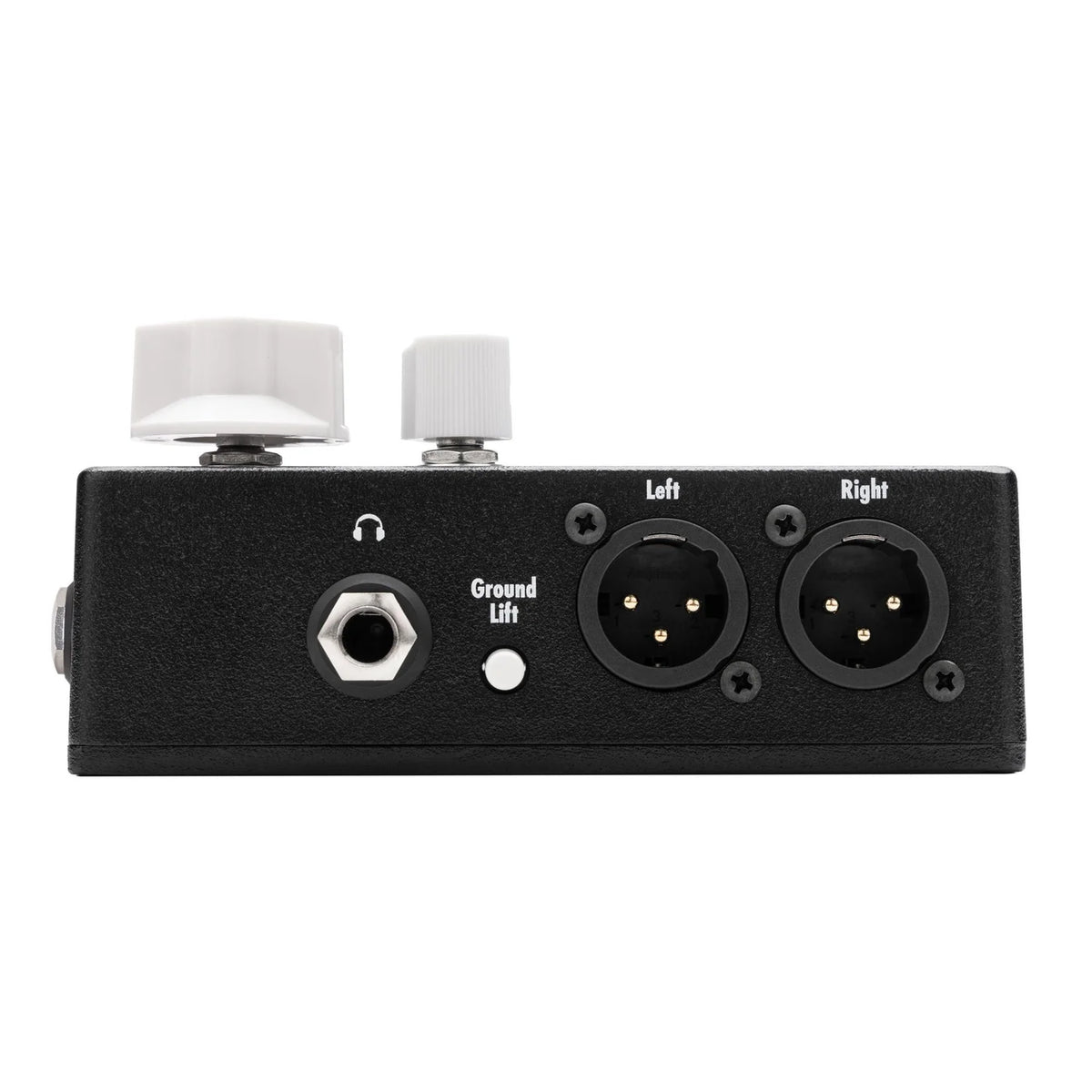

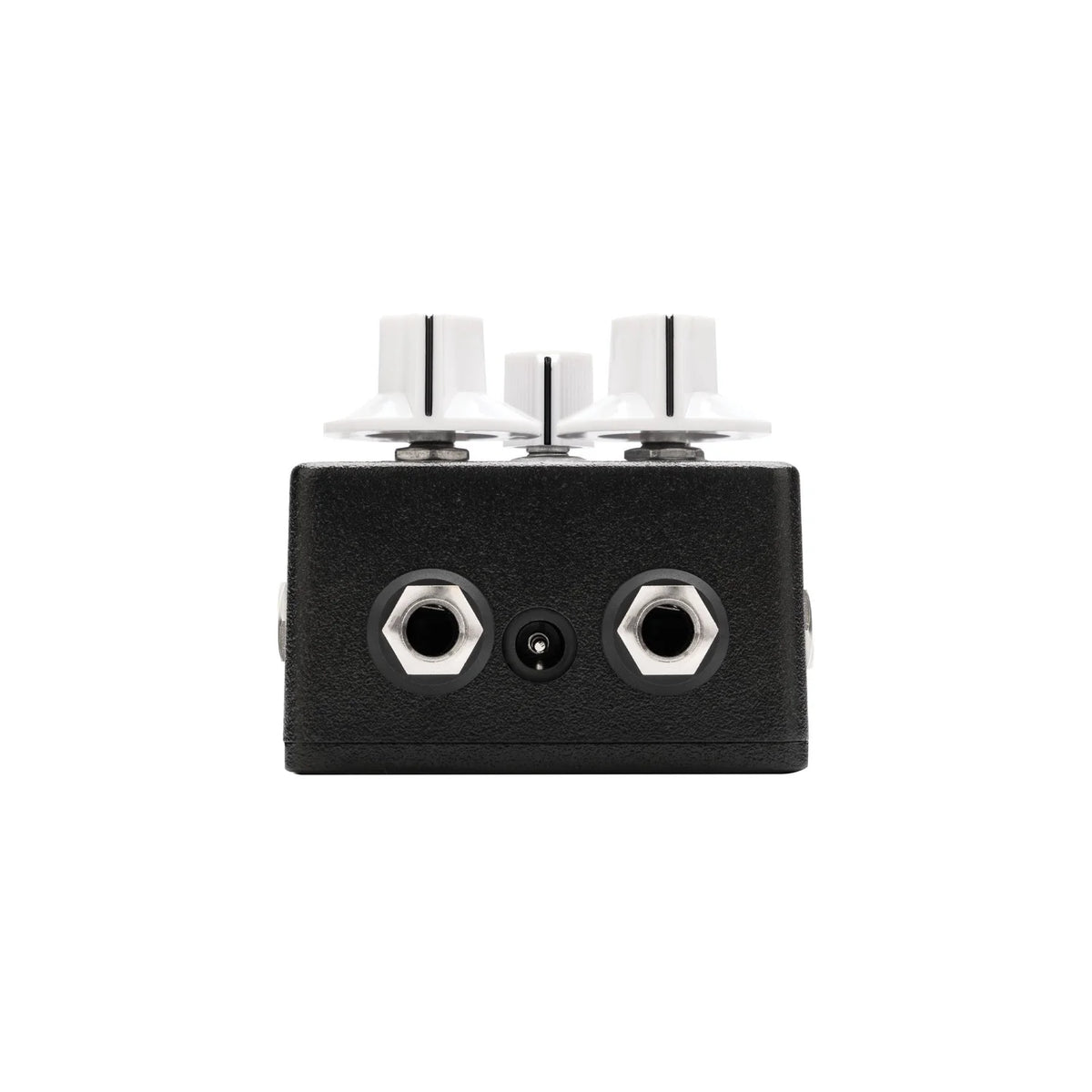

Stereo Easy Listening features independent left and right 1/4" inputs and balanced XLR outputs for connection directly to a mixer, PA or recording interface. A mono signal connected to the Left input is automatically routed through two independent preamp paths to create stereo output.

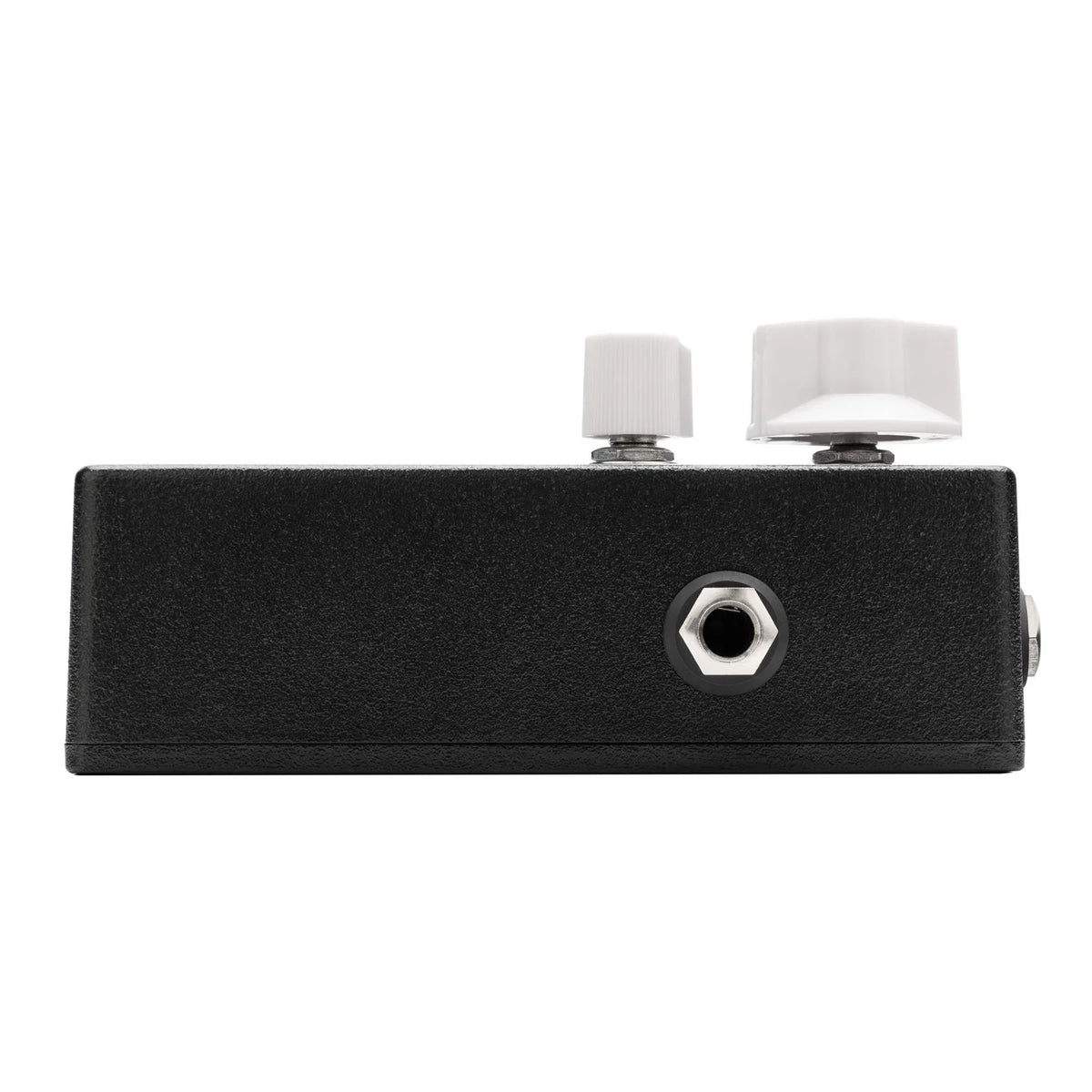

A dedicated 1/4" stereo headphone output allows the unit to operate as a standalone headphone amp. An auxiliary input with its own level control bypasses the amp and cabinet simulation, allowing backing tracks, drum machines or other external audio to be mixed with the processed guitar signal.

Specifications

• Type: Analogue Stereo Amp and Cabinet Simulator
• Signal Path: Analogue
• Amp Voicing: Classic American-Style
• EQ: Active 3-Band
• Bass: Cut/Boost up to 500Hz
• Middle: Cut/Boost from 500Hz to 2kHz
• Treble: Cut/Boost from 2kHz and Above

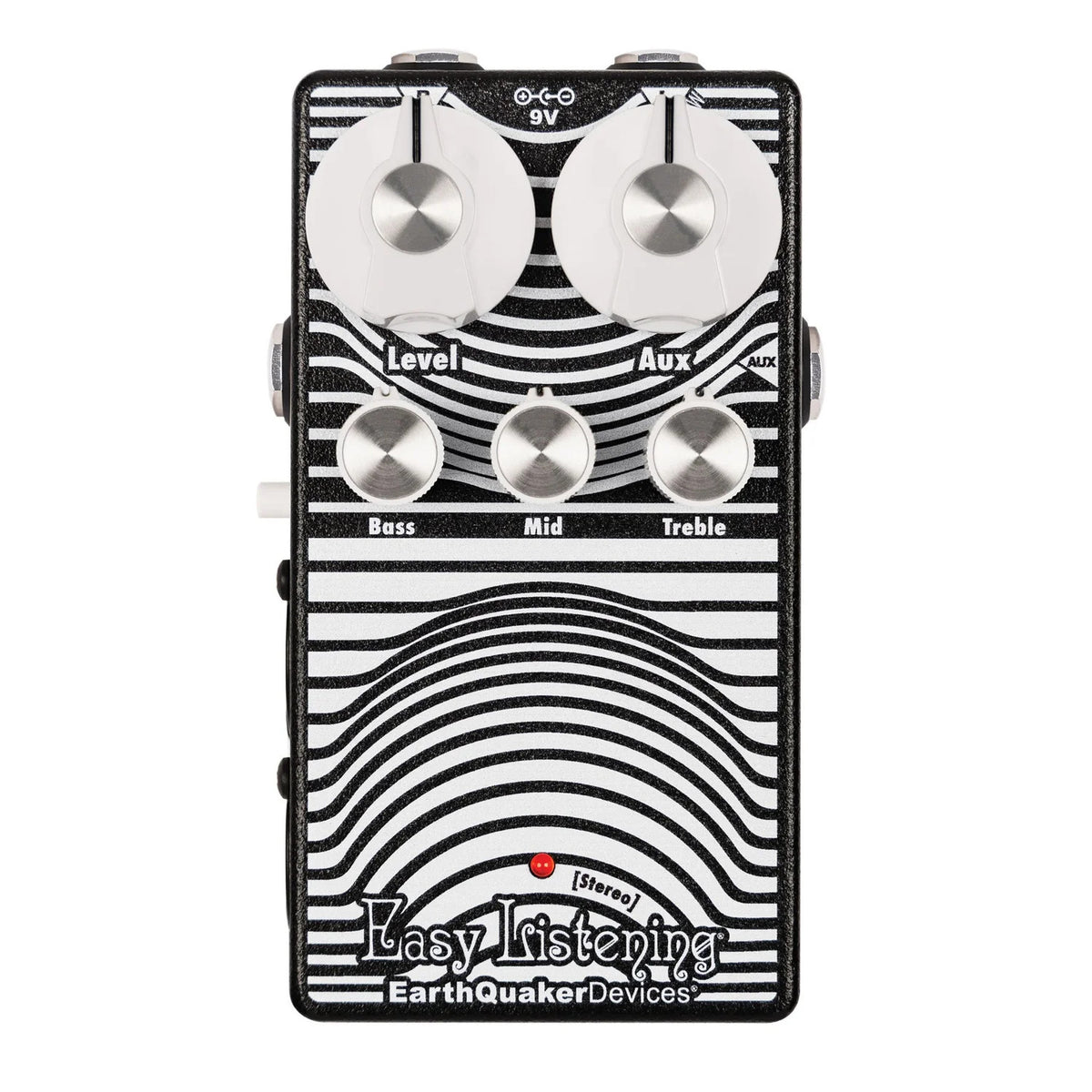

• Controls: Level, Aux, Bass, Middle, Treble
• Inputs: 2 × 1/4" Left/Right
• Mono Operation: Left Input Automatically Routes to Dual Preamp Paths
• Auxiliary Input: Dedicated Level Control, Bypasses Amp and Cabinet Simulation
• Main Outputs: 2 × XLR Left/Right
• Headphone Output: 1/4" Stereo TRS
• Input Impedance: 1MΩ
• XLR Output Impedance: 100Ω
• Headphone Output Impedance: 10Ω
• Current Draw: 200mA
• Power: 9V DC, 2.1mm Centre-Negative
• Dimensions: 127 × 70 × 64mm

Video: https://youtu.be/PrXGvRYwJEM

Product Specs

• Item Number: 43837
• Make: EarthQuaker Devices
• Model: Easy Listening Stereo
• Condition: Brand New
• Finish: Black
• Categories: effects-and-pedals ⇒ amp-simulators ⇒ pedal
• Function: Dual/Stereo Equalizer Utility
• Made In: United States
• MPN: M00012441
• Modular Grid: Pedals ⓘ ＋
• Dimensions*: 64 mm wide 127 mm high
• Power*: 200 mA / 9 V DC / Negative Center
