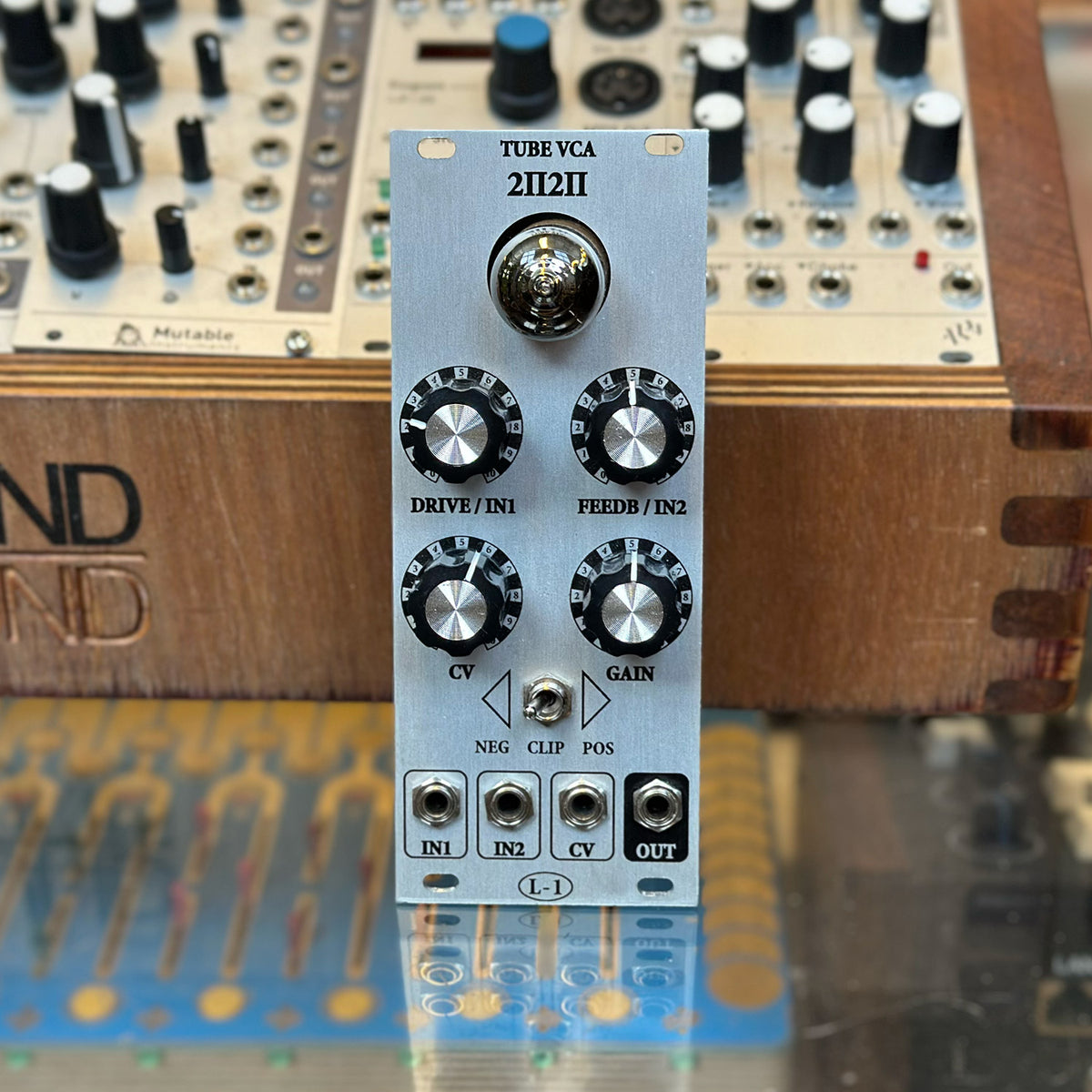

L-1 Tube VCA 2П2П

10 HP valve VCA, distortion and waveshaping module based around a Soviet 2P2P beam tetrode, originally designed for low-voltage audio amplification. The L-1 Tube VCA provides voltage-controlled gain with adjustable input drive and feedback, plus switchable positive or negative asymmetrical clipping for everything from VCA duties and timbral gating to saturated valve distortion.

Specs:

• Soviet 2P2P beam tetrode
• Voltage-controlled amplifier
• Distortion and waveshaping
• CV-controlled gain
• 5 V CV covers full gain range
• Gain offset control
• 2 audio inputs
• Independent input level controls
• Feedback control when Input 2 is unused
• Positive and negative asymmetrical clipping modes
• User-replaceable valve =* Power consumption +12 V 18 mA / -12 V 45 mA

Includes box.

Video: https://youtu.be/VxOgjZ0wD7s

Product Specs

• Item Number: 43810
• Make: L-1
• Model: Tube VCA 2П2П
• Condition: Very Good
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Distortion Tube VCA Waveshaper
• Made In: Belarus
• MPN: 43810
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 10 HP 35 mm deep
• Power*: 18 mA +12V 45 mA -12V 0 mA 5V

* User contributed details
