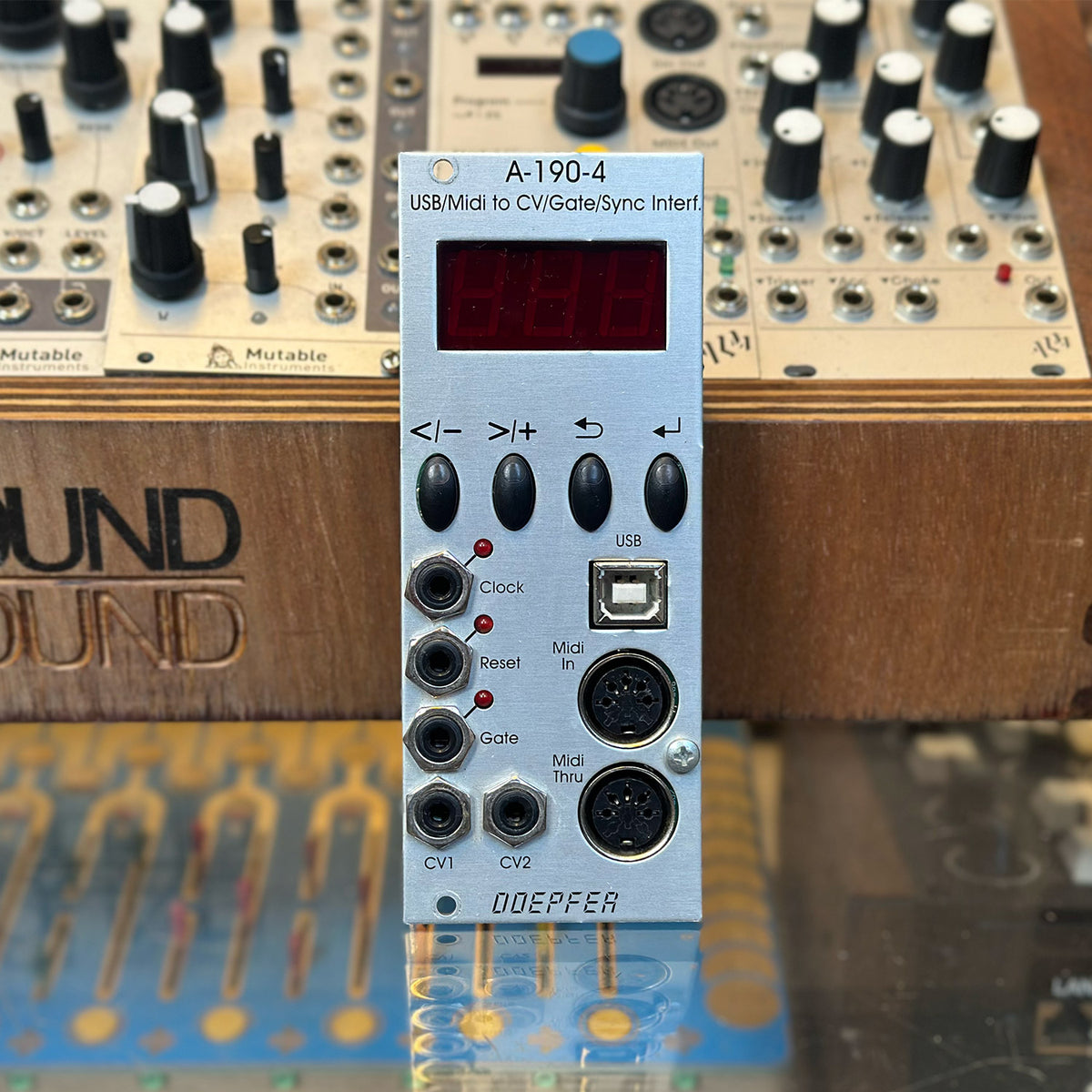

Doepfer A-190-4

The Doepfer A-190-4 is a MIDI-to-CV/Gate/Sync interface for controlling Eurorack systems via MIDI or USB. It features two CV outputs: CV1 (−3V to +10V) converts MIDI note messages to 1V/oct for pitch control with glide, pitch bend, and an onboard software LFO; CV2 (0V to +10V) can be assigned to velocity, aftertouch, or other MIDI CCs for modulating parameters like filter or amplitude. It also includes a Gate output for triggering envelopes, a MIDI-synced Clock output with selectable divisions, and a Reset output responding to MIDI transport messages. Gate, Clock, and Reset voltages are jumper-switchable between +5V and +12V.

Minor rack rash.

Product Specs

• Item Number: 43794
• Make: Doepfer
• Model: A-190-4
• Condition: Very Good
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: MIDI
• Made In: Germany
• MPN: 43794
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 10 HP 50 mm deep
• Power*: 200 mA +12V 40 mA -12V 0 mA 5V

* User contributed details
