Expert Sleepers ES-8 Bitwig Edition

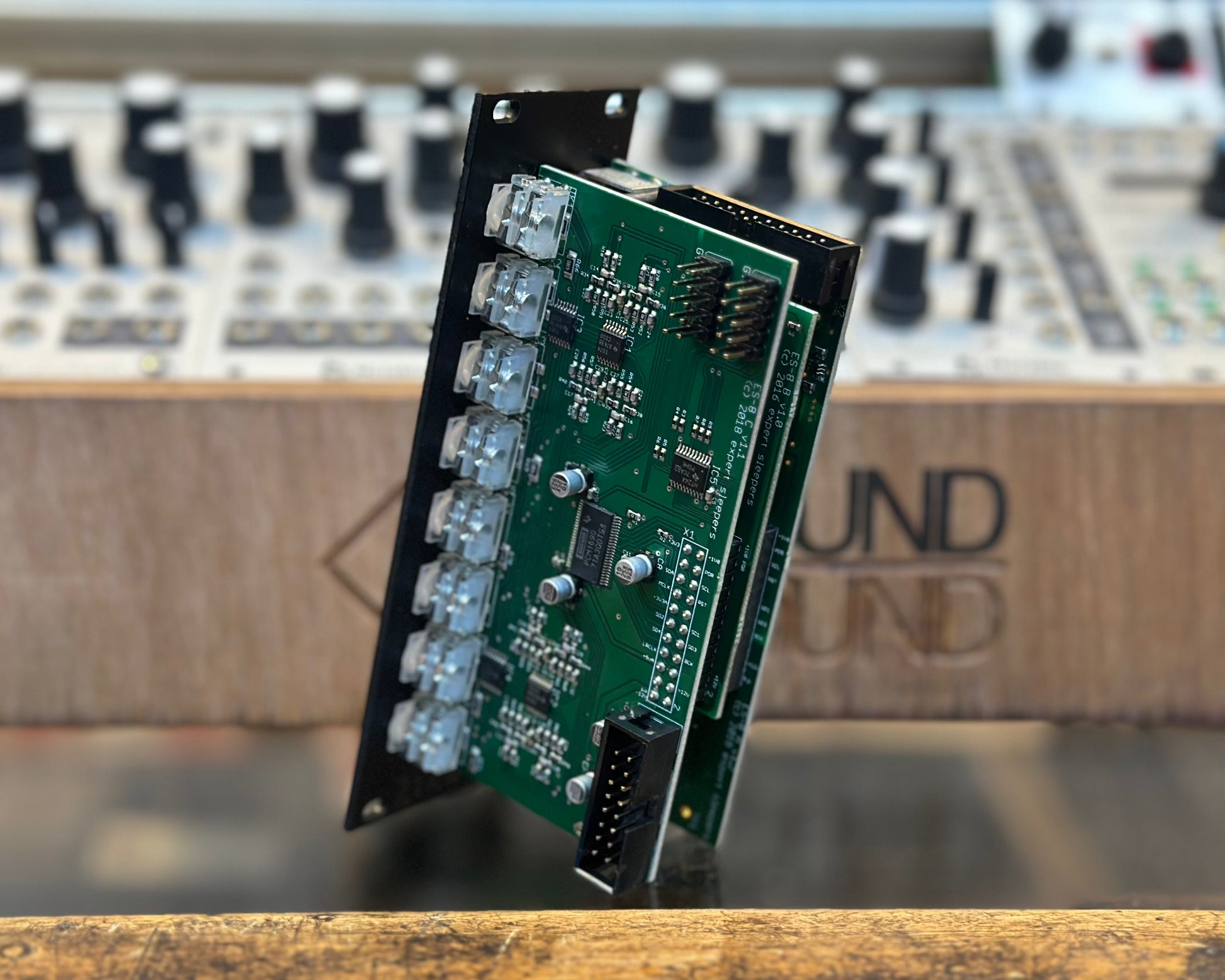

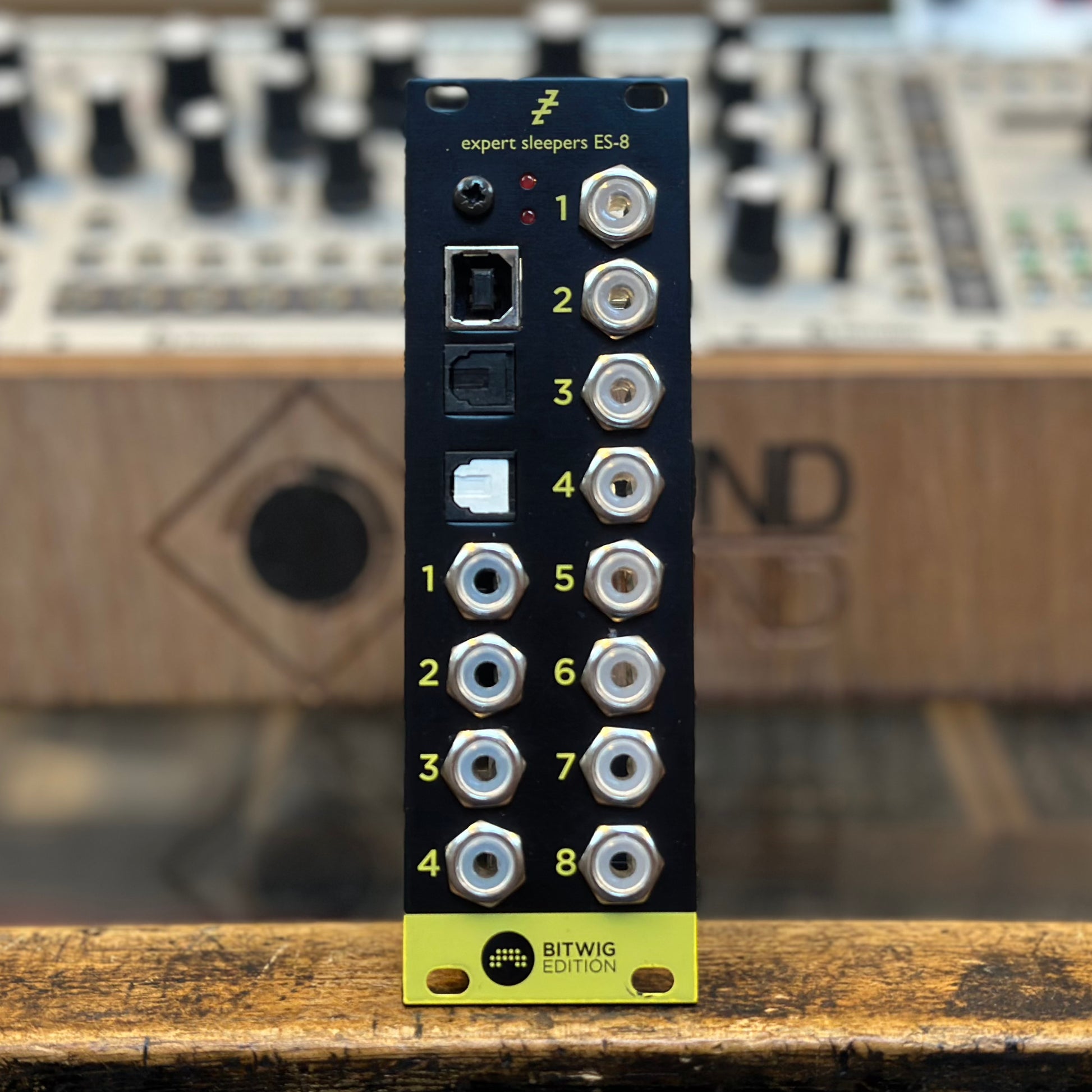

The ES-8 module (8HP) is an 8 output, 4 input audio interface in eurorack format, with DC coupled audio connections, expandable via ADAT lightpipe. This is a perfect module to integrate your hardware in your software workflow and vice versa.

Features:

• Limited edition Bitwig faceplate
• Includes Bitwig 8-Track license
• USB socket: Type B
• Driver suport: class-compliant USB 2.0 (no Windows support initially)
• Channel count: 12 in, 16 out
• Supported sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• Output connections: 8x 3.5mm jacks, DC-coupled
• Maximum output voltage: approximately +/- 10V DC
• Analogue inputs: 4x 3.5mm jacks, DC-coupled
• Input voltage range: approximately +/- 10V
• Digital I/O: 1x ADAT input, 1x ADAT output
• Expansion headers: 1 for ES-5, 1 for ES-6

Product Specs

• Item Number: 43777
• Make: Expert Sleepers
• Model: ES-8 Bitwig Edition
• Condition: Very Good
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Clock Modulator Controller External MIDI Utility
• Made In: United Kingdom
• MPN: 43777
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 8 HP 50 mm deep
• Power*: 198 mA +12V 52 mA -12V 0 mA 5V

* User contributed details
