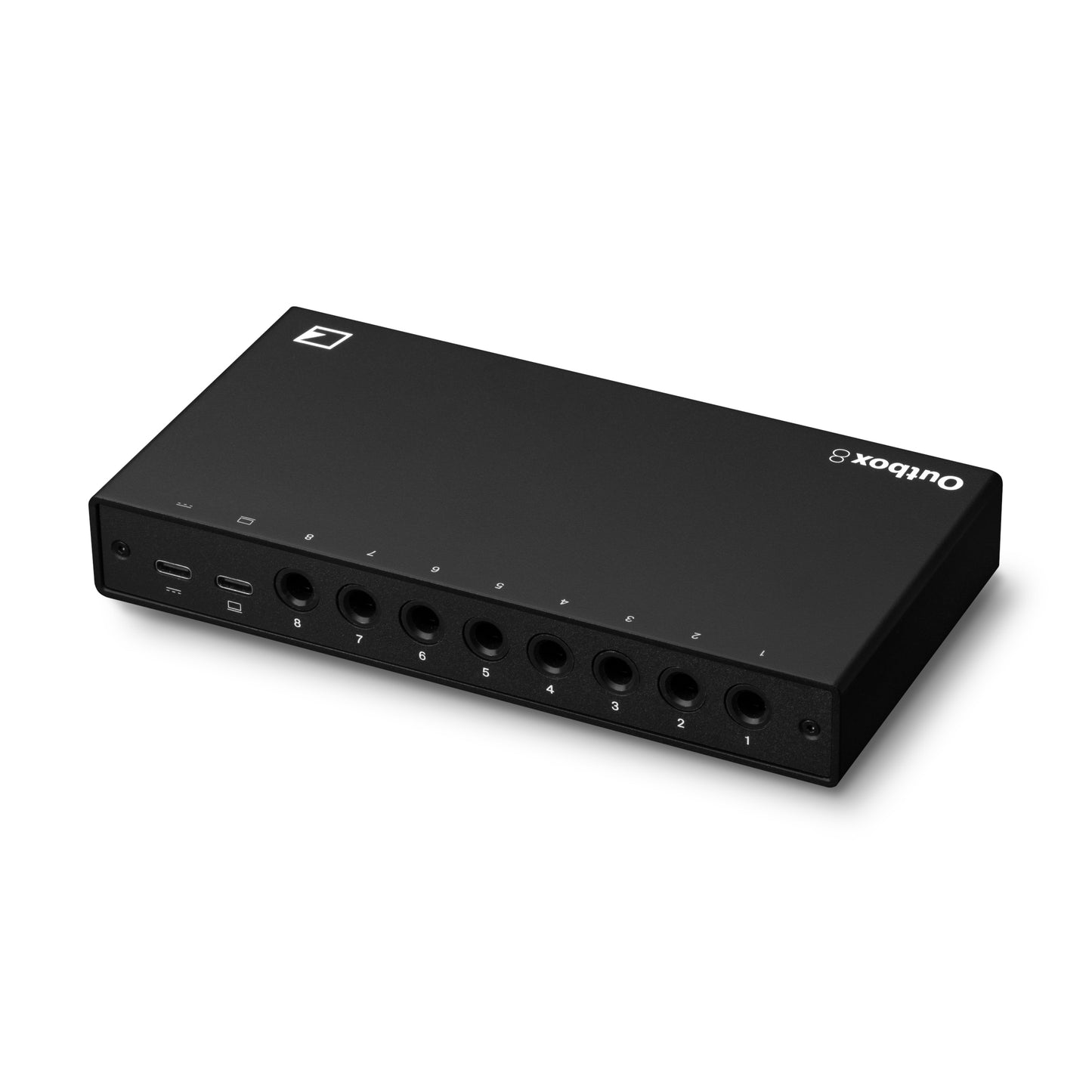

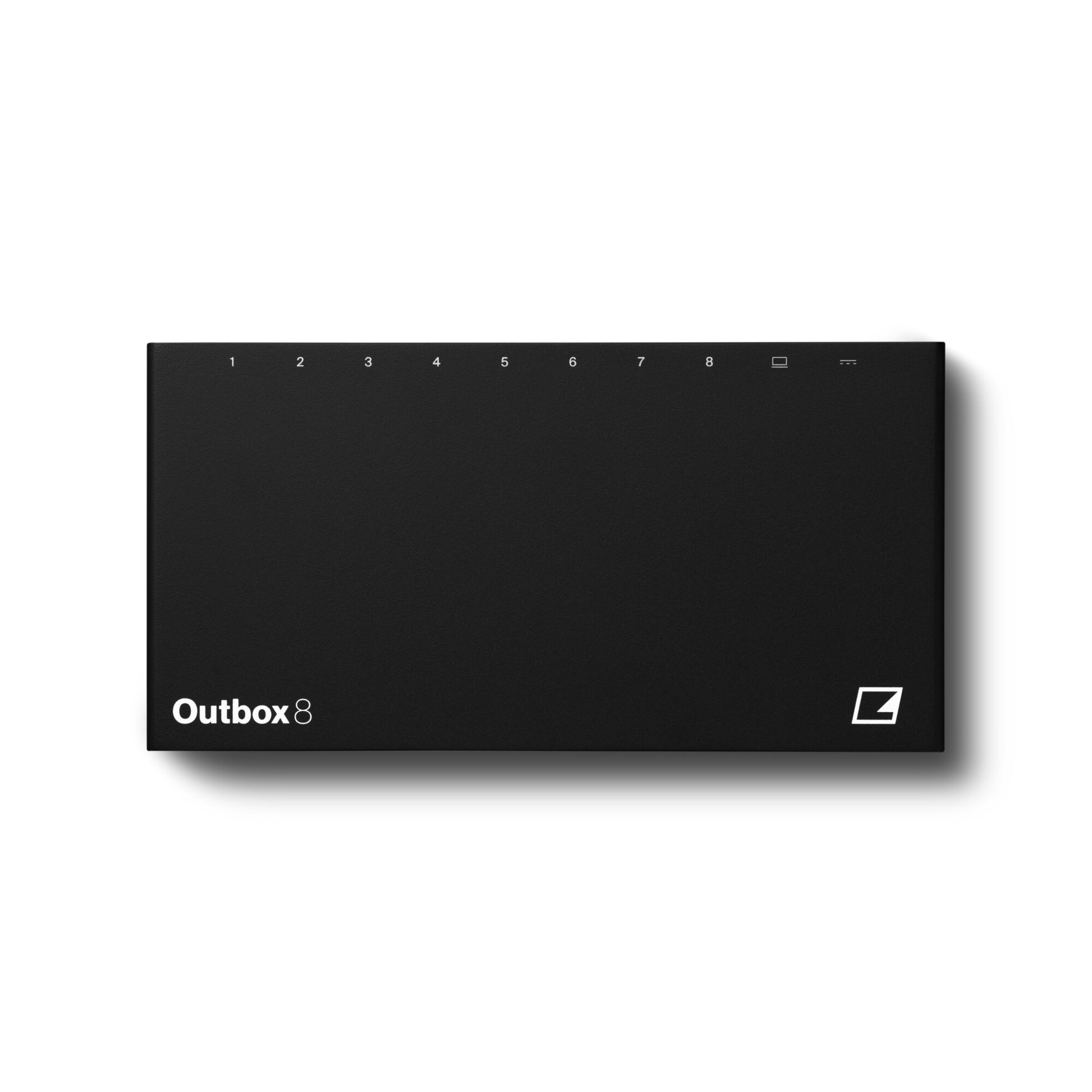

Elektron Outbox 8 Multi Output Interface

The Elektron Outbox 8 ia an eight-channel audio and CV breakout box and USB host/device designed to expand the physical connectivity of Elektron, modular and computer-based setups. Outbox 8 provides eight independently configurable DC-coupled outputs for multichannel audio or CV, and can also operate as an eight-output USB audio interface or USB MIDI-to-CV converter.

Specs:

• 8 × 6.35 mm impedance-balanced, DC-coupled outputs
• Individually configurable audio and CV outputs
• 48 kHz / 32-bit D/A conversion
• ±5 V CV output range
• V/Oct and Hz/V pitch CV
• Gate, trigger, clock and linear CV modes
• USB MIDI-to-CV conversion
• 8-output USB audio interface
• USB host and device operation
• USB 2.0 High-Speed Type-C data port
• USB-C power input
• USB Power Delivery support
• Compatible with Elektron Overbridge-enabled devices
• Supports USB class-compliant MIDI and compatible audio devices
• Power requirement 5 V / 0.5 A / 2.5 W or higher
• Dimensions 176 × 90 × 28 mm
• Weight 350 g

Video: https://youtu.be/Tq9gJvEvp7Y

Product Specs

• Item Number: 43688
• Make: Elektron
• Model: Outbox 8
• Condition: Brand New
• Finish: Black
• Categories: pro-audio ⇒ interfaces
• MPN: ELEKOUTBOX8
