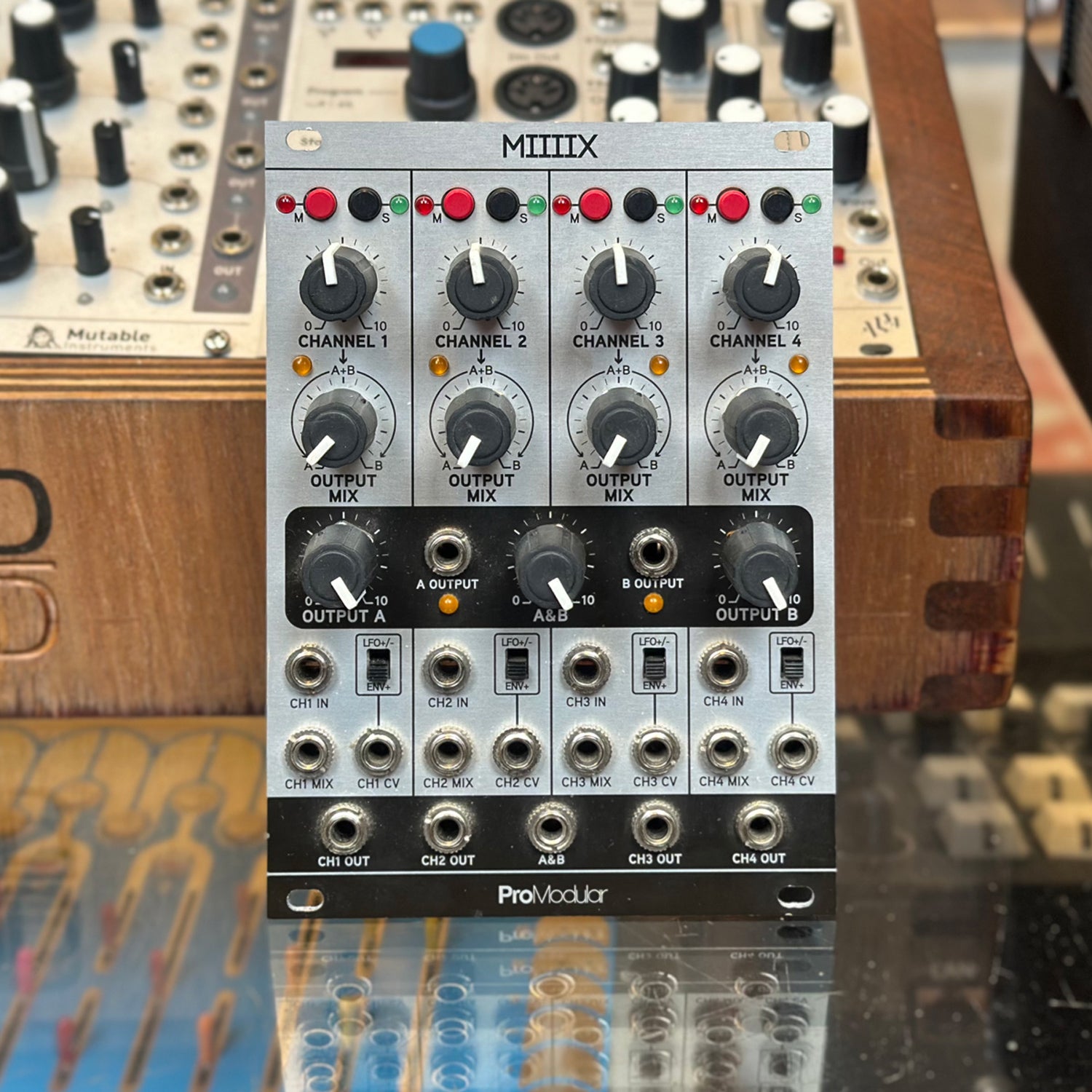

proModular MIIIIX 1.27

Four-channel Eurorack mixer, panner and VCA with CV control over level, saturation and stereo positioning. MIIIIX combines four independent logarithmic VCAs with mute/solo functionality, individual outputs and stereo headphone/line output, and can be expanded with additional MIIIIX modules for systems of up to 16 channels.

Specs:

• 4-channel mixer, panner and VCA
• 4 independent logarithmic VCAs
• Individual channel outputs
• CV control over amplitude, saturation and panning
• Unipolar Envelope and bipolar LFO CV modes
• Silent mute and solo per channel
• Dedicated left and right output attenuators
• Stereo headphone and line output
• Expandable to 16 channels with 4 linked MIIIIX modules
• Power consumption +12 V 222 mA / -12 V 185 mA quiescent
• Maximum +12 V consumption 259 mA

Includes original box and ribbon cable.

Product Specs

• Item Number: 43611
• Make: proModular
• Model: MIIIIX
• Condition: Good
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Distortion Mixer Panning VCA Quad Dual/Stereo
• MPN: 43611
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 18 HP 35 mm deep
• Power*: 259 mA +12V 185 mA -12V 0 mA 5V

* User contributed details
