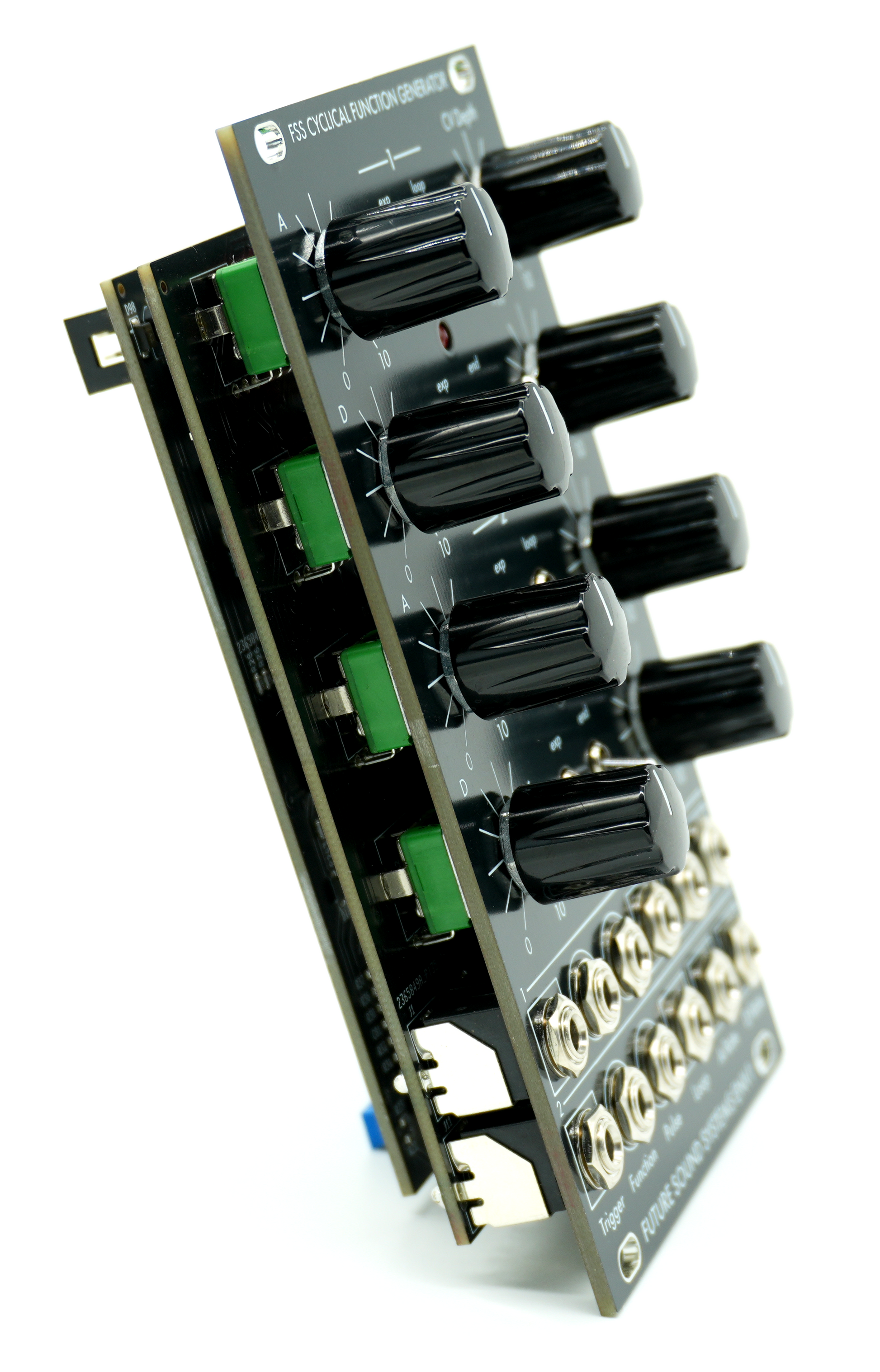

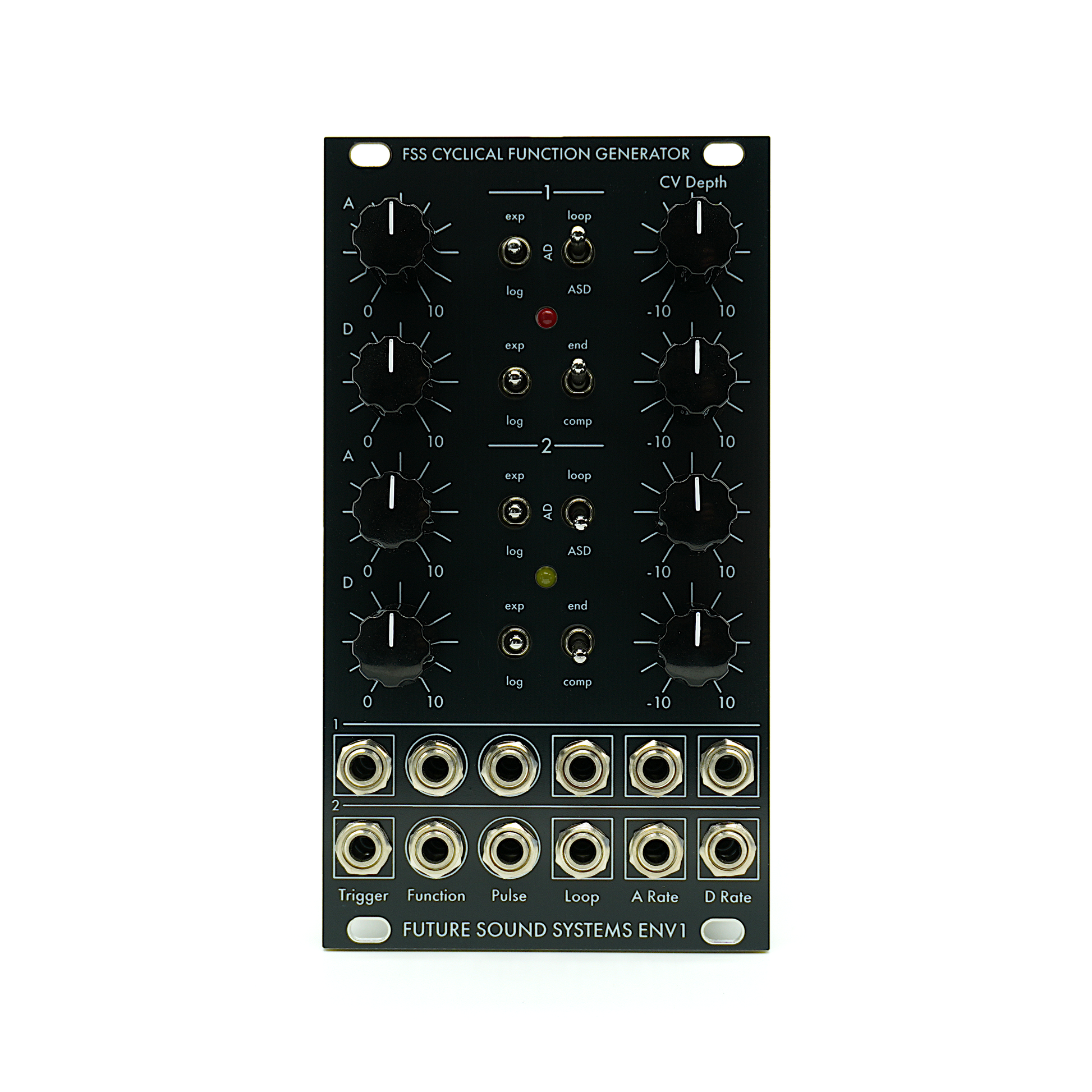

Future Sound Systems Cyclical Function Generator ENV1

Dual function generator inspired by classic West Coast synthesis, equally capable of envelopes, LFOs, audio-rate oscillation and complex modulation. Independently configurable attack and decay curves, multiple operating modes and switchable pulse outputs make it a remarkably flexible patching tool for both rhythmic and experimental systems.

Specs:

• Dual cyclical function generators
• Attack and Decay stages
• Selectable linear, exponential and logarithmic response
• CV control over Attack and Decay times
• Looping, AD and ASR operating modes
• Switchable End of Decay or comparator pulse outputs
• Pulse and comparator outputs
• Loop input per channel
• Attack and Decay times from audio rate to several minutes
• Functions as envelope, LFO, oscillator, sub-divider, pulse generator and trigger delay
• Function output range: 0V to +10V
• End of Decay pulse: 0V to +10V
• Comparator pulse: 0V to +5V
• Trigger threshold: +2.5V
• 14HP
• 40mm depth
• Power consumption: +90mA / -70mA
• Made in the UK

Video: https://youtu.be/SsPhs27prnc

Product Specs

• Item Number: 43212
• Make: Future Sound Systems
• Model: Cyclical Function Generator ENV1
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Made In: United Kingdom
• MPN: FSS-CFG
