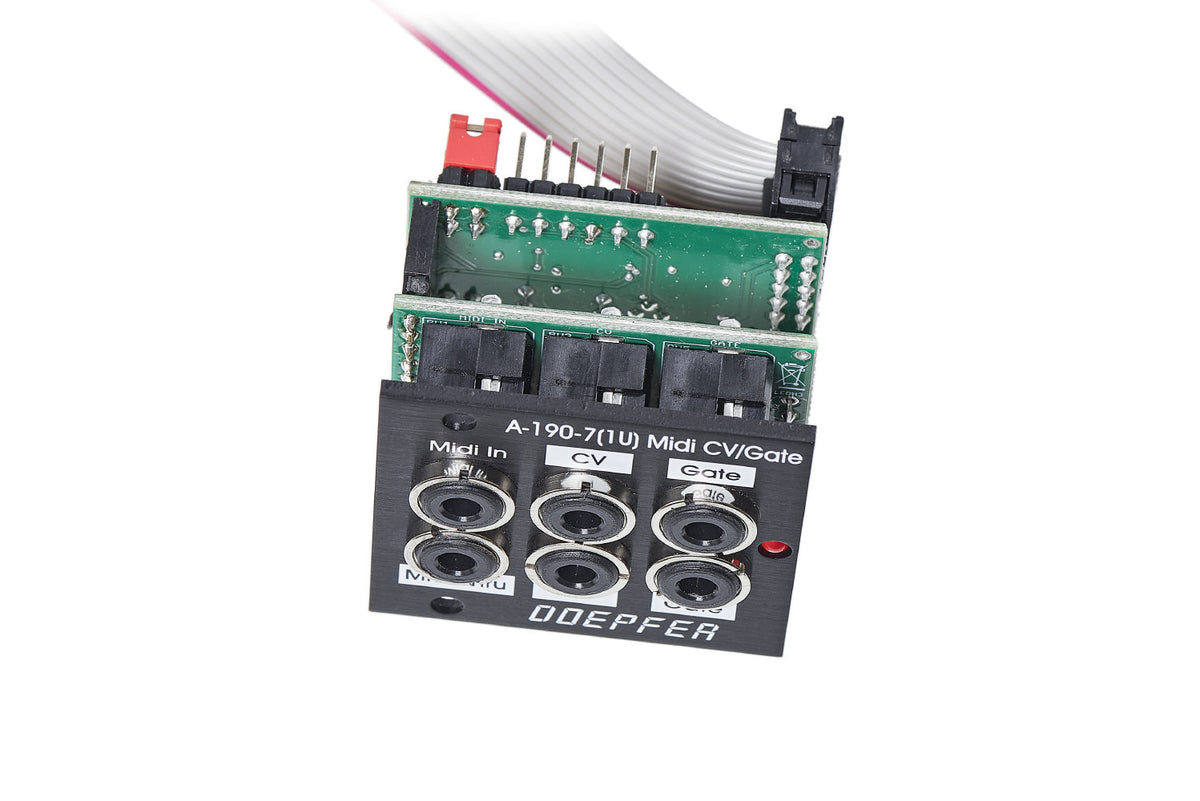

Doepfer A-190-7v 1U Micro Midi CV/Gate Interface Vintage Edition

Compact 1U monophonic MIDI to CV interface for integrating MIDI keyboards, sequencers and controllers with a Eurorack system. Simple, reliable operation with dual gate outputs and switchable TRS MIDI compatibility makes it an easy way to bring external gear into the modular world.

Specs:

• Monophonic MIDI to CV/Gate interface
• 3.5mm TRS MIDI input
• Supports TRS MIDI Type A and Type B
• MIDI channel 1 by default
• Configurable MIDI channel via solder pads
• Internal MIDI bus connection
• Two gate outputs
• CV output
• Gate output level: 0V to +10V
• CV output range: 0V to +5V
• Gate status LED
• 8HP
• 45mm depth
• Power consumption: +30mA / -10mA
• Vintage Edition (Black)
• Made in Germany

Product Specs

• Item Number: 43193
• Make: Doepfer
• Model: A-190-7v
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: MIDI
• Made In: Germany
• MPN: A-190-7v
• EAN: 4250711119072
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 8 HP 45 mm deep
• Power*: 30 mA +12V 10 mA -12V ? mA 5V

* User contributed details
