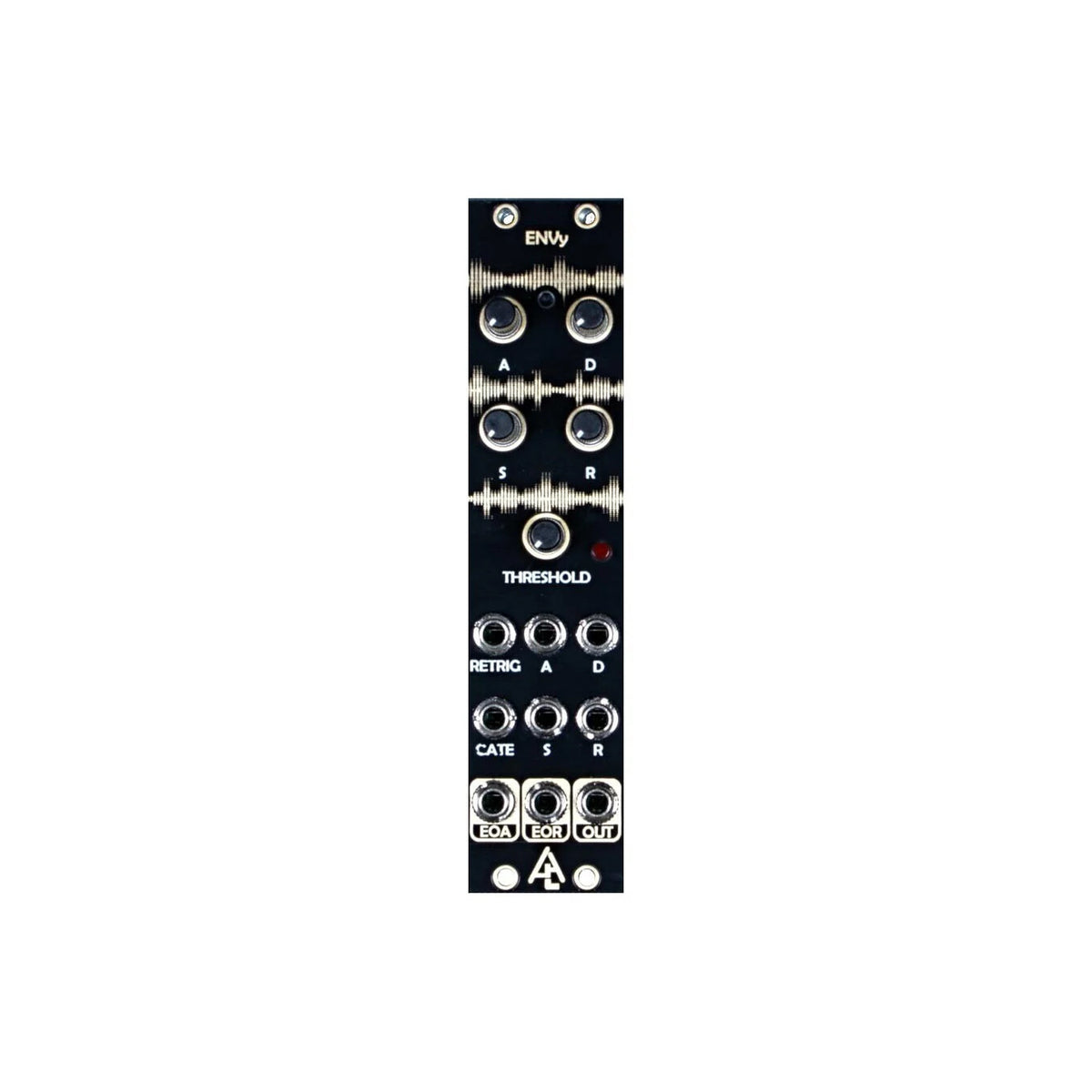

After Later Audio ENVy ADSR Style Envelope Generator

The After Later Audio ENVy is a compact 6HP ADSR envelope generator based around the classic CEM3310 integrated circuit, the same envelope chip used in iconic synthesizers including the Sequential Pro-One, Prophet-5, and Moog MemoryMoog. Combining vintage-inspired behaviour with modern Eurorack functionality, ENVy provides fast, responsive envelope shaping for both traditional and experimental patching.

In addition to comprehensive control over the Attack, Decay, Sustain, and Release stages, each parameter features its own CV input for dynamic modulation. The module also includes adjustable gate threshold detection, selectable envelope timing via an internal jumper, delayed End of Attack and End of Release trigger outputs, and support for retriggering while a gate remains high, allowing for more expressive and complex modulation patches.

Specifications

• Width: 6HP
• Envelope Type: ADSR
• Envelope IC: CEM3310
• Controls: Attack, Decay, Sustain, Release, Threshold
• CV Inputs: Attack, Decay, Sustain, Release
• Trigger Outputs: End of Attack, End of Release
• Gate Behaviour: Sustain Length Determined by Gate Duration
• Retrigger: Supported During High Gate After Sustain
• Attack Time Range: 0.5ms to 750ms (Selectable via Internal Jumper)

Product Specs

• Item Number: 42946
• Make: After Later Audio
• Model: ENVy
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator
• Made In: United States
• MPN: ALA-ENVY
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 25 mm deep
• Power*: 28 mA +12V 25 mA -12V ? mA 5V

* User contributed details
