Fancy Synthesis

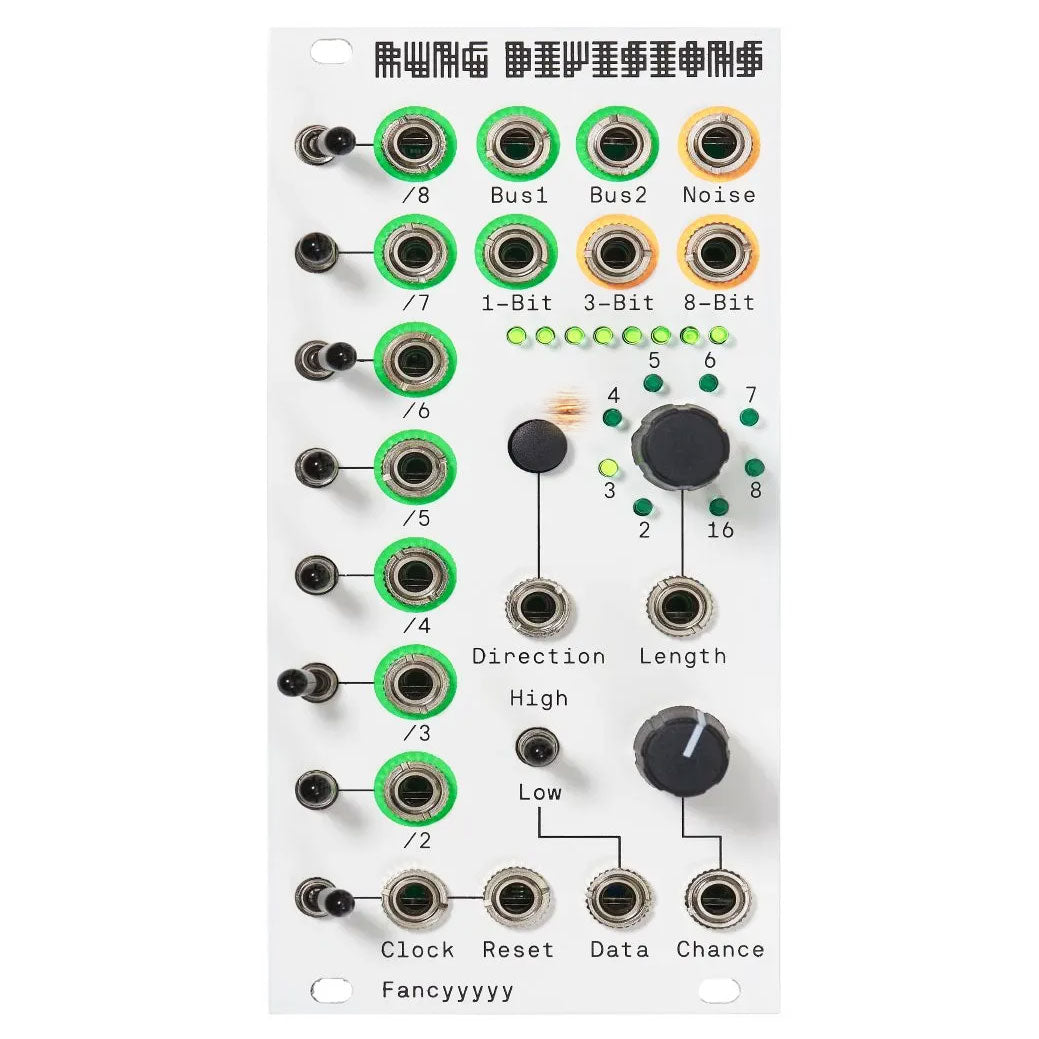

Fancy Synthesis Rung Divisions

Fancy Synthesis Rung Divisions

PRE ORDER
$619.00 AUD
$619.00 AUD
Taxes included. Shipping calculated at checkout.

Out of stock

Rung Divisions is a multifunction digital logic module that combines a universal shift register, programmable pulse divider, stepped voltage generator, analogue noise source, and binary logic processor into a remarkably versatile rhythmic and sequencing tool. Designed to operate across an exceptionally wide frequency range, it moves effortlessly between slow generative modulation, evolving rhythmic structures, and audio-rate digital synthesis.

At its core, Rung Divisions functions as a complex polyrhythmic gate generator capable of producing predictable sequences, pseudo-random patterns, chaotic rhythms, and looping stepped control voltages. Voltage control over pattern length, shift direction, and loop probability allows sequences to continuously evolve or settle into repeating cycles, creating rhythmic behaviours reminiscent of visual stroboscopic effects where patterns appear to slow, reverse, or lock into place.

Built entirely from solid-state and discrete logic circuitry, the module remains stable from sub-audio modulation through to 40kHz operation. This makes it equally effective for driving multiple voices with evolving gate patterns, generating stepped control voltages, processing digital logic, or creating aggressive audio-rate textures through self-patching and feedback.

Propagation delay compensation has been specifically engineered to support complex feedback networks, allowing outputs to be safely patched back into inputs for increasingly intricate and unpredictable behaviour. Expansion headers also provide compatibility with future modules including K-ACCUMULATOR and additional logic-based expanders.

Features

  • Universal shift register
  • Bidirectional data shifting
  • Polyrhythmic clock divider
  • Random and looping stepped sequencer
  • Chaotic stepped voltage generator
  • Dual gate bus with three-position switches
  • Voltage control over pattern length
  • Voltage control over shift direction
  • Voltage control over loop probability
  • Analogue noise output
  • Clock pulse-width manipulation
  • 1-bit, 3-bit and 8-bit data encoding
  • Optimised for self-patching and feedback
  • Propagation delay compensation
  • Solid-state and discrete logic design
  • Expansion headers for future modules
  • Compatible with K-ACCUMULATOR

Specifications

| Specification | Details | |---|---| | Function | Universal Shift Register / Clock Divider / Logic Processor | | Clock Range | 0Hz - 40kHz | | Shift Register | Bidirectional | | Gate Bus | Dual | | Noise Source | Analogue | | Pattern Control | Length, Direction, Loop Probability (CV Controllable) | | Data Encoding | 1-bit, 3-bit, 8-bit | | Logic Design | Solid-State & Discrete | | Expansion | Rear Expansion Headers |

Applications

  • Polyrhythmic gate generation
  • Random and looping sequencing
  • Stepped CV generation
  • Binary logic processing
  • Chaotic modulation
  • Audio-rate digital synthesis
  • Feedback patching
  • Multi-voice rhythmic control

Video: https://youtu.be/iUCxxVFRcaw
