Vestax

Vestax DCR-2500F

Vestax DCR-2500F

USED
$599.00 AUD
$599.00 AUD
Taxes included. Shipping calculated at checkout.

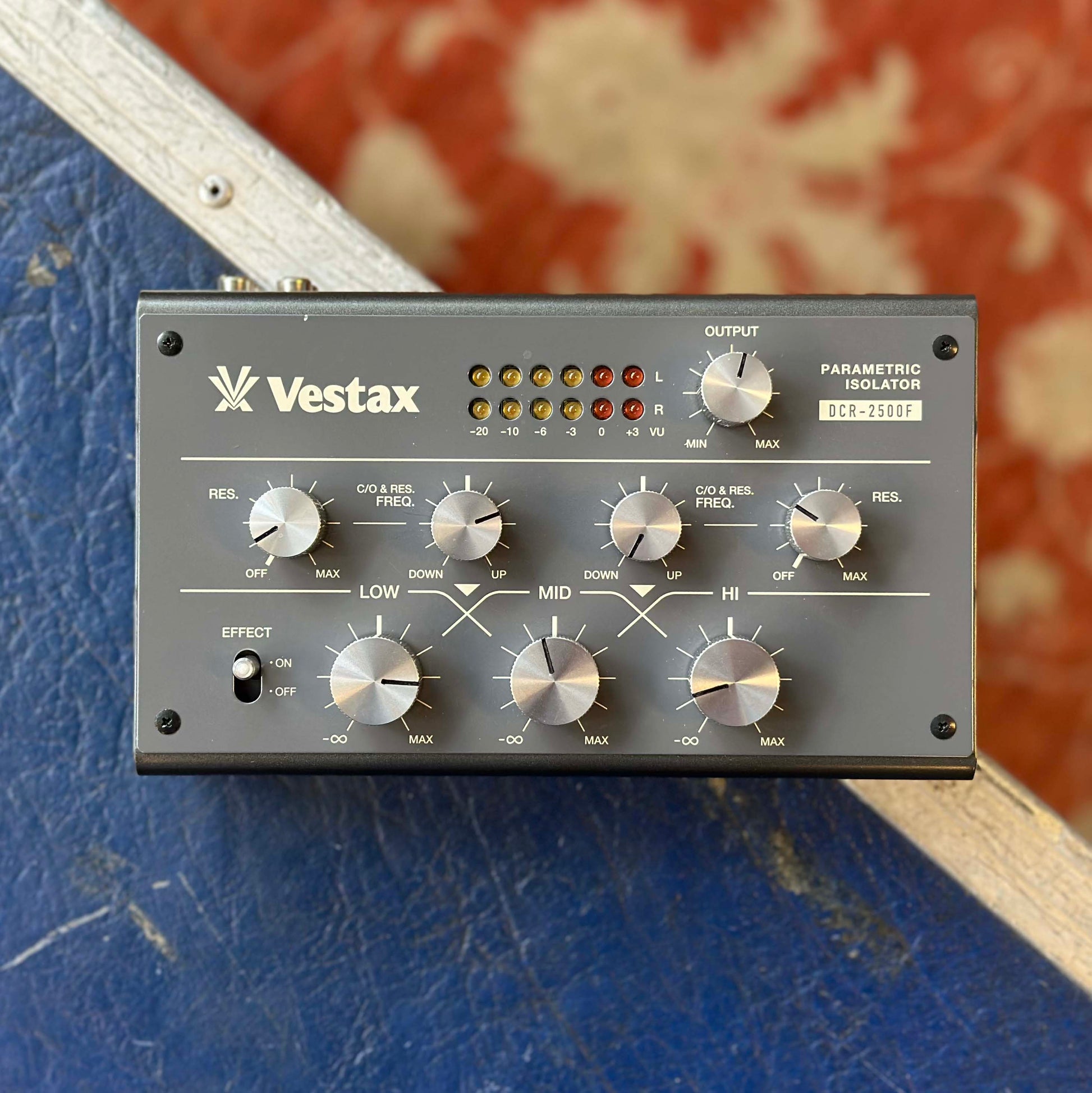

A high quality parametric isolator taking over the original electric circuit of Vestax DCR-1500. The crossover point can be adjusted steplessly and widely anytime with the C/O & resonance pots, giving you control over the full range of frequencies on both ends. The LOW, MID and HI pots cut/boost the coresponding ranges along with a master output pot to tame or boost resonant sweeps. The effect switch allows you to bypass the filters quickly and efficiently with a VCA control circuit to minimise noise when toggling the switch.

Features

  • Input: -10dBu RCA pin jack stereo input, with +10dBu level matching switch/ 490kΩ
  • Output: -10dBu RCA pin jack stereo input/ 35Ω
  • Number of isolation bands： 3 (High / Middle / Low)
  • Isolation boost and cut range: -∞ to +6dB (±0dB at center position)
  • Crossover frequency range:LOW-MID 68Hz to 705Hz. ( 270 Hz at center position)MID-HI . 2.85kHz to 16.5kHz. (4.9kHz at center position）
  • Resonance peak level:+10dBu
  • THD+N (Total harmonic distortion + noise):0.005％
  • Noise level: A-wt AES17(20kHz) input shorting- 101dBu when effect OFF- 87dBu when effect ON

Includes power supply.

Video: https://youtu.be/evWhES9mTlI
