Kingsley Juggler V3 Tube Preamp

The Juggler V3 is an incredibly functional and configurable tube preamp pedal that outshines its predecessors in tone and interface usability. Based on a Dumble ODS style preamp, early versions of the Juggler were designed to hit the front of the amp. The V3 has been optimized for hitting the power amp directly to take full advantage of the preamp and dual 12AX7 tubes within this stomp box.

Features

3 footswitches - On/Off - Drive/Mid Boost - EQ Lift/Mid Boost Note that the Drive footswitch can automatically activate the mid boost at the same time if desired. This way you can have the clean channel with no Mid Boost but the Drive channel with Mid Boost. The EQ lift/Mid Boost footswitch can activate either the EQ lift or the Mid Boost. The Mid Boost can also be set to be on at all times.

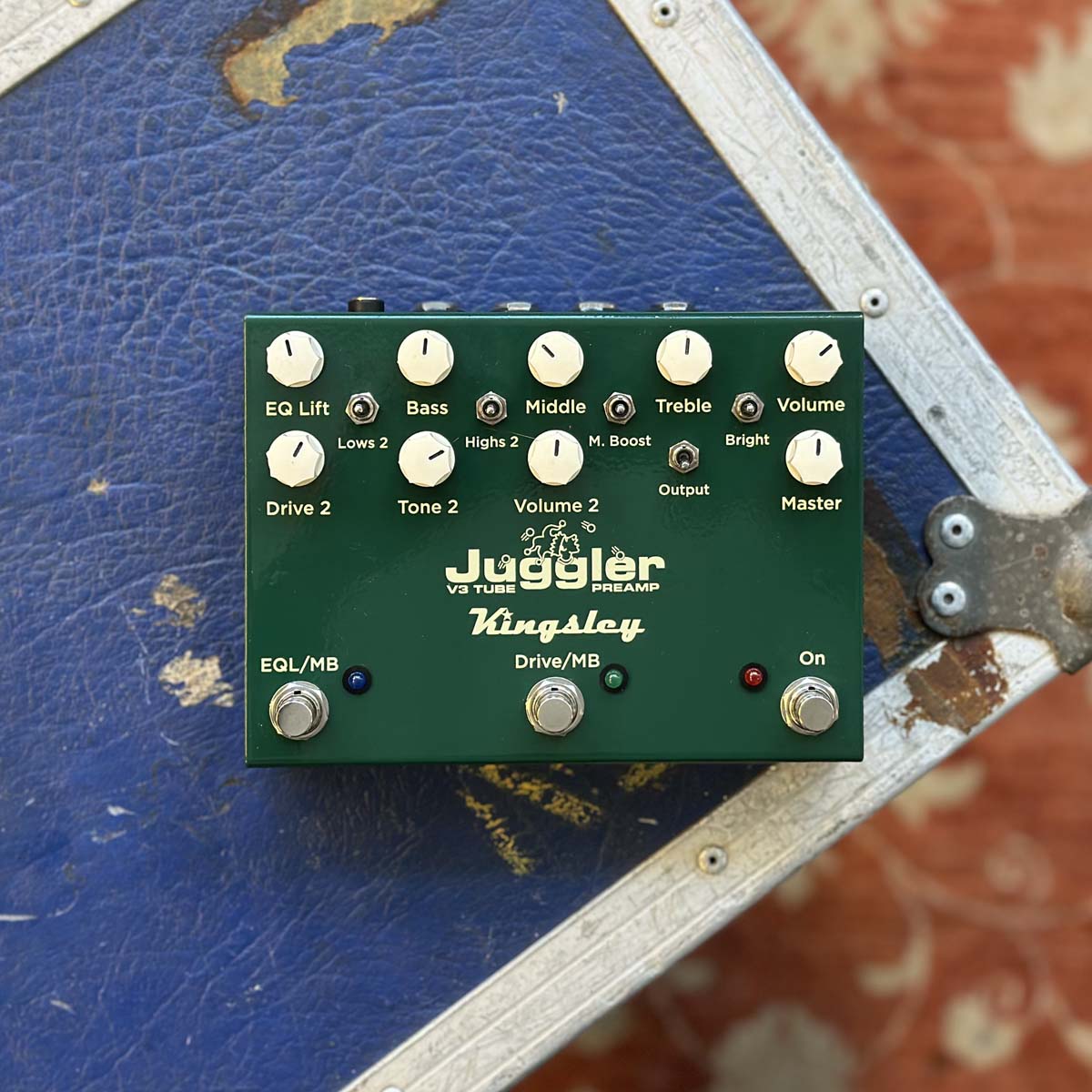

Clean channel: Volume, Treble, Middle, Bass, 3-way Bright switch, Mid boost switch, EQ lift footswitch, EQ lift level pot

Drive channel: Drive, Tone, Volume, 3-way Lows switch, 3-way Highs switch

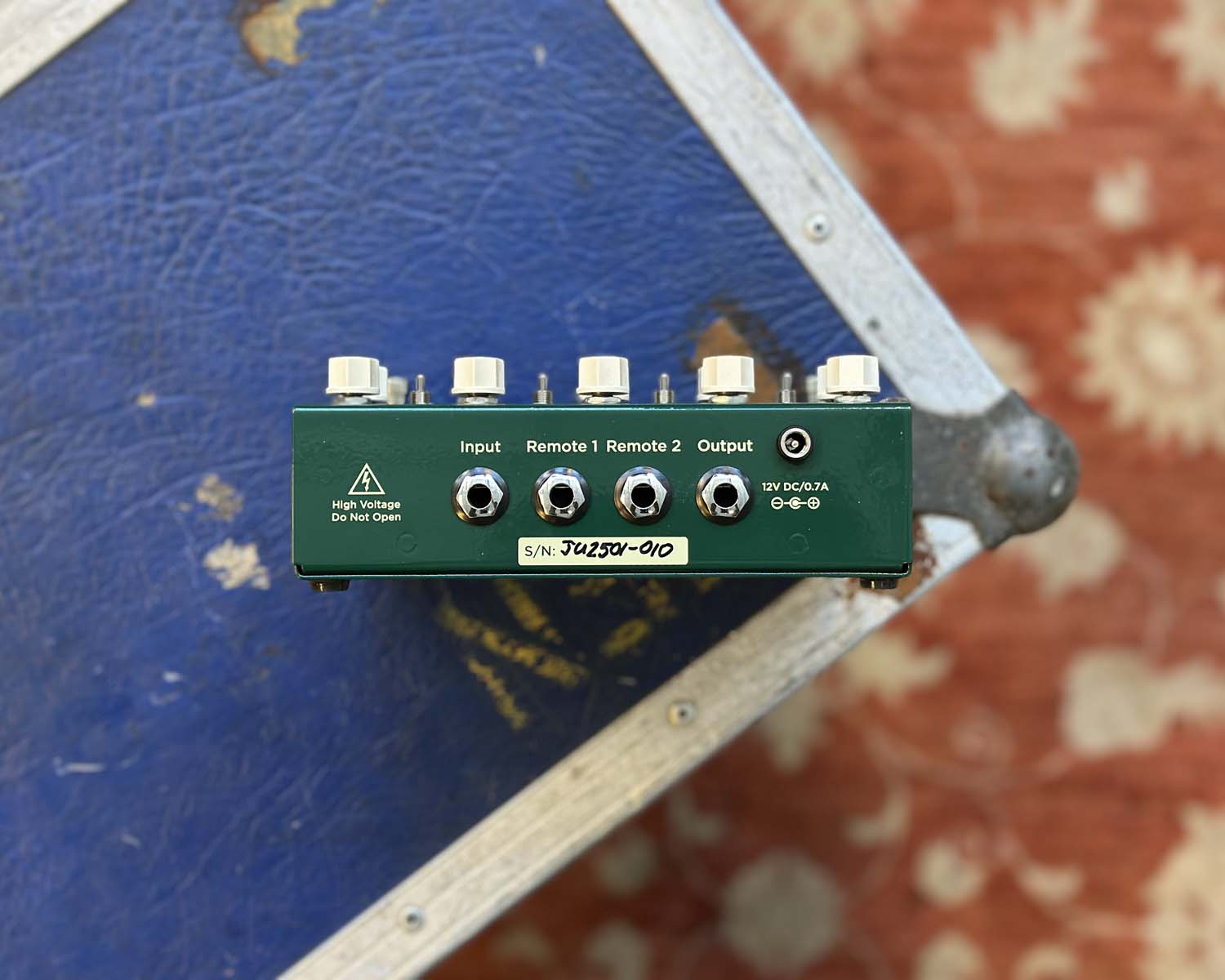

Other features: global Master Volume, 3-way Output switch (front of amp use, instrument level preamp use, full output preamp use), Two remote jacks for channel select, EQ lift and Mid Boost functions (one jack is a TRS jack that can be used for channel select or Mid Boost alone, or both channel select and Mid Boost select), high voltage mosfet buffer output (no need for an effects loop as the output impedance is already low and the Output switch and Master Volume make it very easy to add effects after the whole preamp).

Includes original box & 12v centre negative power supply (USA Clip - requires travel adaptor for use).

Video: https://youtu.be/ZFOw3h0LIj4

Product Specs

• Item Number: 42767
• Make: Kingsley
• Model: Juggler V3 Tube Preamp
• Condition: Very Good
• Finish: Dark Green
• Categories: effects-and-pedals ⇒ preamps ⇒ pedal
• Year: 2022
• Made In: United States
• MPN: 42767
