Meris Ottobit X Modular 80s Texture Engine Pedal

Stereo lo-fi effects processor combining bit crushing, glitch, sequencing, filtering and time-based effects in a modular digital architecture. The Meris Ottobit X features six glitch modes including vinyl-style scratching, three filter types, dual VHS delay and reverb engines, and a 16-step sequencer for creating everything from vintage digital textures to complex rhythmic effects.

Specs:

• 11 processing categories
• 6 glitch modes: Grain Freeze, Stutter, Push Loop, Wikki Wikki, Tape Stop and Stutter Step
• Wikki Wikki vinyl scratching with loop, break and backspin
• 3 filter types: Ladder, State Variable and Otto Tron
• Dual VHS delay and reverb engines
• Variable playback speed
• 16-step sequencer
• Approximately 48 assignable sequencer parameters
• 99 preset locations across 33 banks
• 18 artist presets
• 3-preset Favourite Bank
• Deep Modifier expression routing
• Hold Modifier performance control
• Colour touchscreen
• 24-bit AD/DA conversion
• 32-bit floating-point DSP
• 115 dB typical signal-to-noise ratio
• Premium analogue signal path

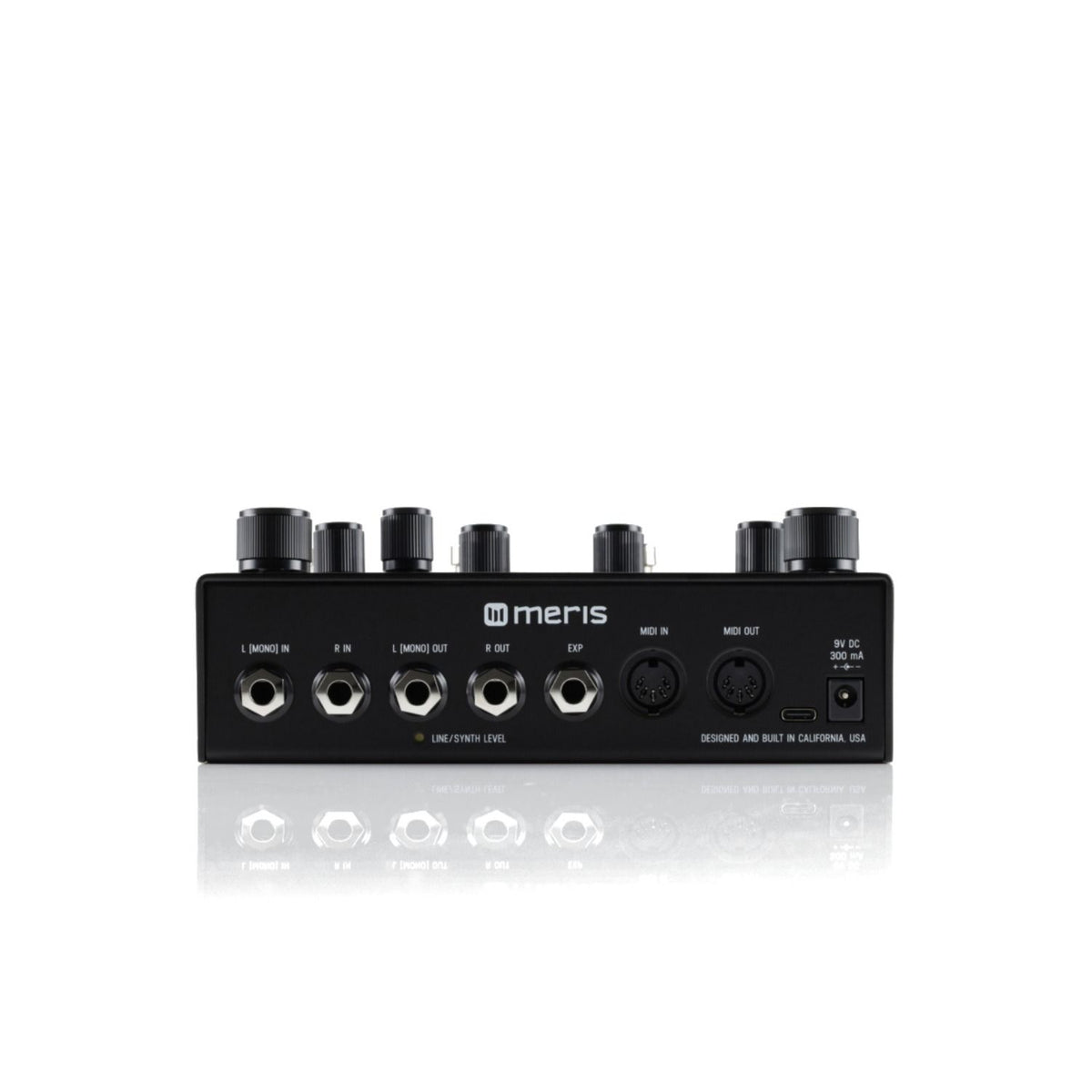

• Stereo inputs and outputs
• Switchable instrument and line-level operation
• MIDI In and Out via DIN
• USB-C MIDI connectivity
• MIDI clock synchronisation
• Dedicated expression pedal input
• Selectable true or buffered bypass
• 9 V DC centre-negative power
• 300 mA current draw
• Dimensions 184 × 114 × 51 mm
• Made in California, USA

Video: https://youtu.be/sOdbotUP5ZM

Product Specs

• Item Number: 42664
• Make: Meris
• Model: Ottobit X
• Condition: Brand New
• Finish: Black
• Categories: effects-and-pedals ⇒ multi-effect-unit ⇒ pedal
• Function: Digital Glitch Dual/Stereo MIDI Multieffect
• Made In: United States
• MPN: MER-OBX
• Modular Grid: Pedals ⓘ ＋
• Dimensions*: 184 mm wide 114 mm high
• Power*: 300 mA / 9 V DC / Negative Center

* User contributed details
