Flock Audio Patch SE

Flock Audio Patch SE

PRE ORDER
$2,029.00 AUD
$2,029.00 AUD
Taxes included. Shipping calculated at checkout.

Out of stock

The Flock Audio PATCH se is a digitally controlled 24-input, 24-output analogue patchbay designed to replace traditional physical patching with software-controlled routing. Its 100% analogue signal path provides routing, multing and patch recall without A/D or D/A conversion, allowing analogue studio equipment to remain connected while signal paths are configured from the PATCH software.

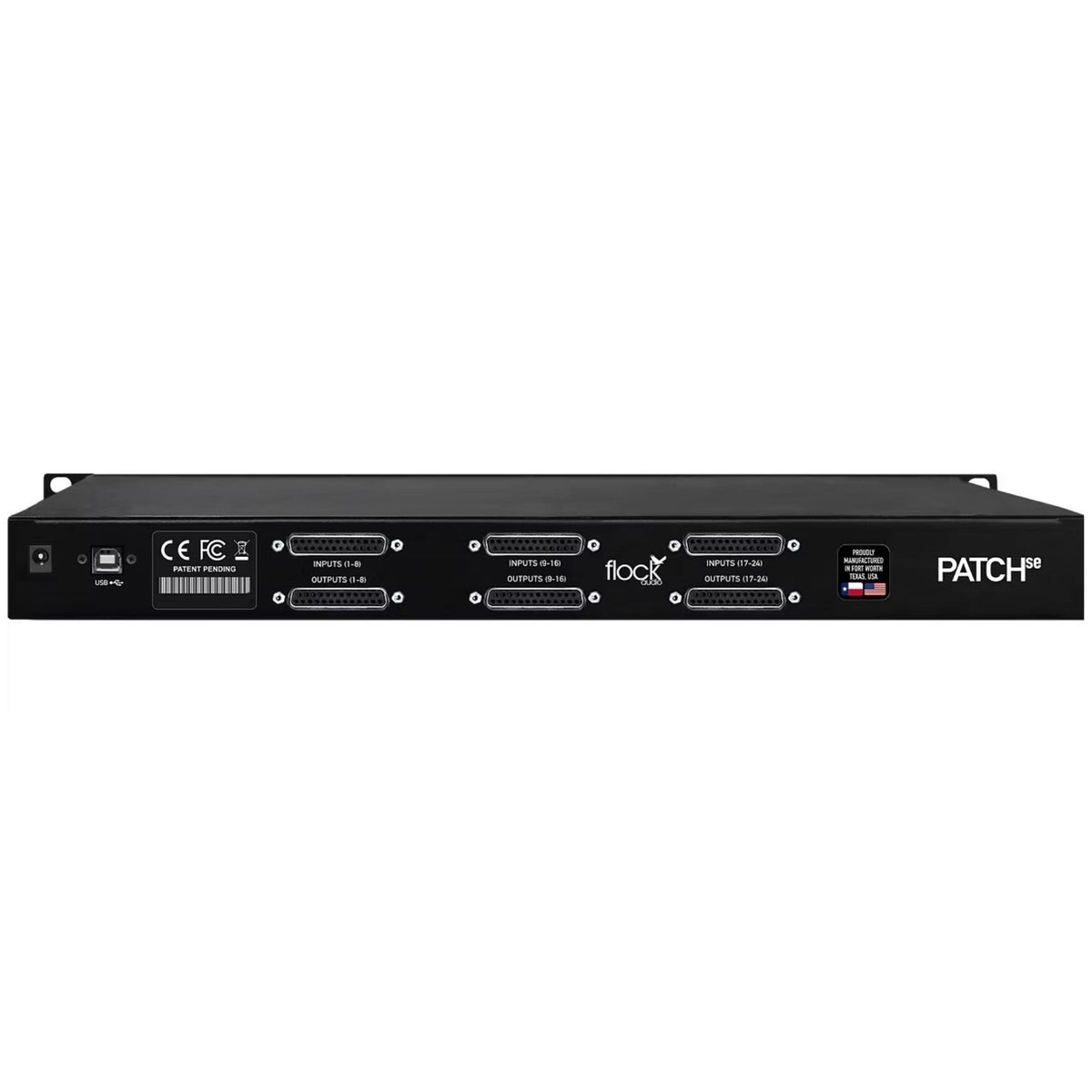

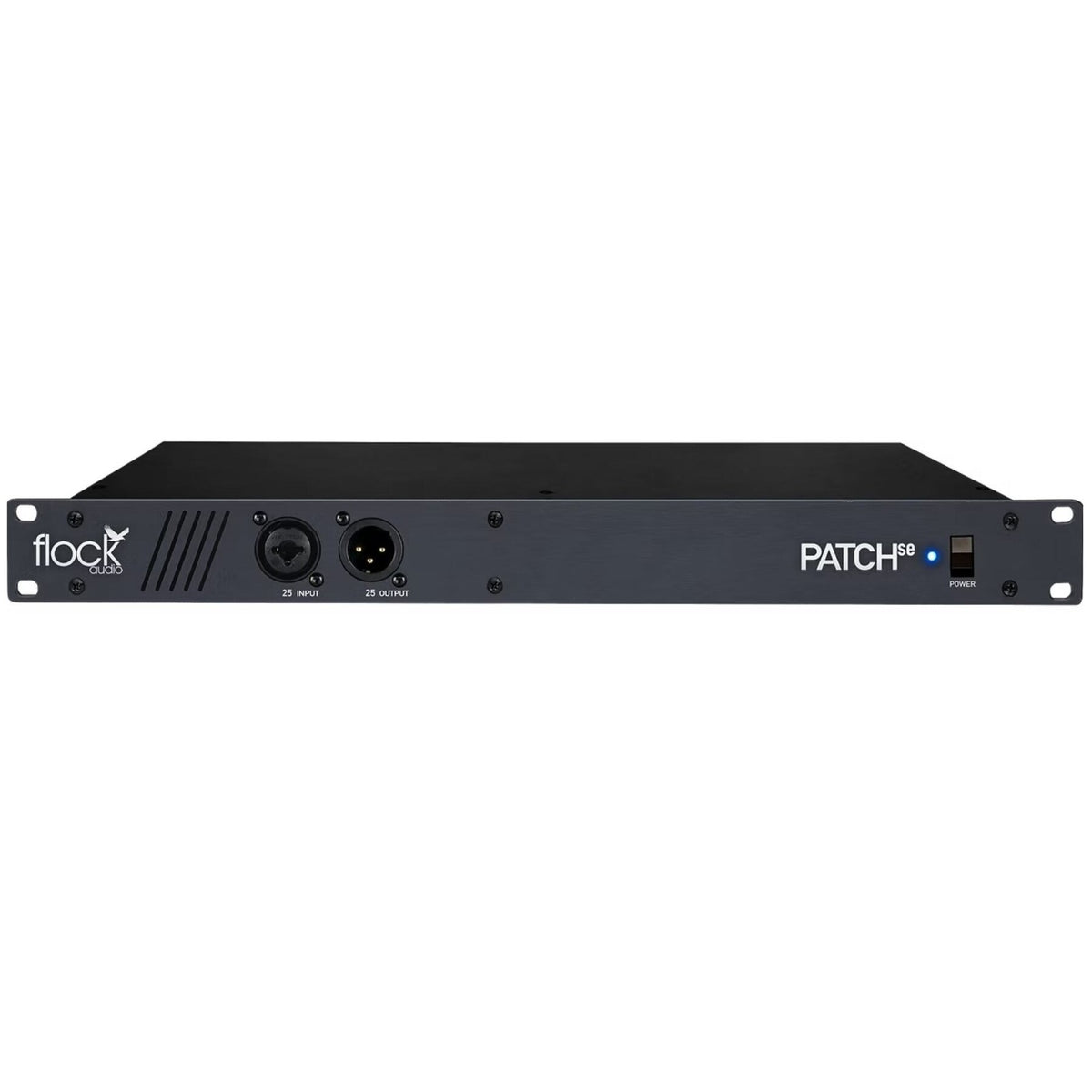

The 48-point routing matrix provides 24 inputs and 24 outputs via rear-panel DB-25 connectors using the Tascam-standard pinout. A front-panel XLR/TRS combo input and XLR output provide convenient access for temporarily connecting equipment without reaching behind the rack.

Routing is controlled using Flock Audio's PATCH and PATCH DX software for macOS, Windows and iOS. Complete routing configurations can be created, stored and recalled, while signals can be multed to multiple destinations without changing their level or impedance.

PATCH se uses a fanless internal design and dispenses with phantom-power switching to concentrate on +4dB line-level analogue routing. For larger installations, multiple PATCH-series units can be combined, with support for systems incorporating up to 10 additional compatible PATCH devices.

Specifications

  • Type: Digitally Controlled Analogue Patchbay
  • Routing Matrix: 24 Inputs × 24 Outputs
  • Total Connection Points: 48
  • Signal Path: 100% Analogue
  • Conversion: None
  • Routing Latency: None
  • Rear Connections: DB-25 / D-Sub
  • DB-25 Pinout: Tascam Standard
  • Front Input: XLR / 1/4" TRS Combo
  • Front Output: 3-Pin XLR
  • Computer Connection: USB-B
  • Routing Software: Flock Audio PATCH / PATCH DX
  • Software Compatibility: macOS, Windows and iOS
  • Routing Functions: Patch Creation, Storage, Recall and Multing
  • Phantom Power: No
  • Cooling: Fanless
  • Expansion: Supports Integration with Additional PATCH-Series Units
  • Compatible Expansion Models: PATCH lt, PATCH, PATCH vt and PATCH xt

Includes Power adapter & 25cm USB-A to USB-B Cable.
