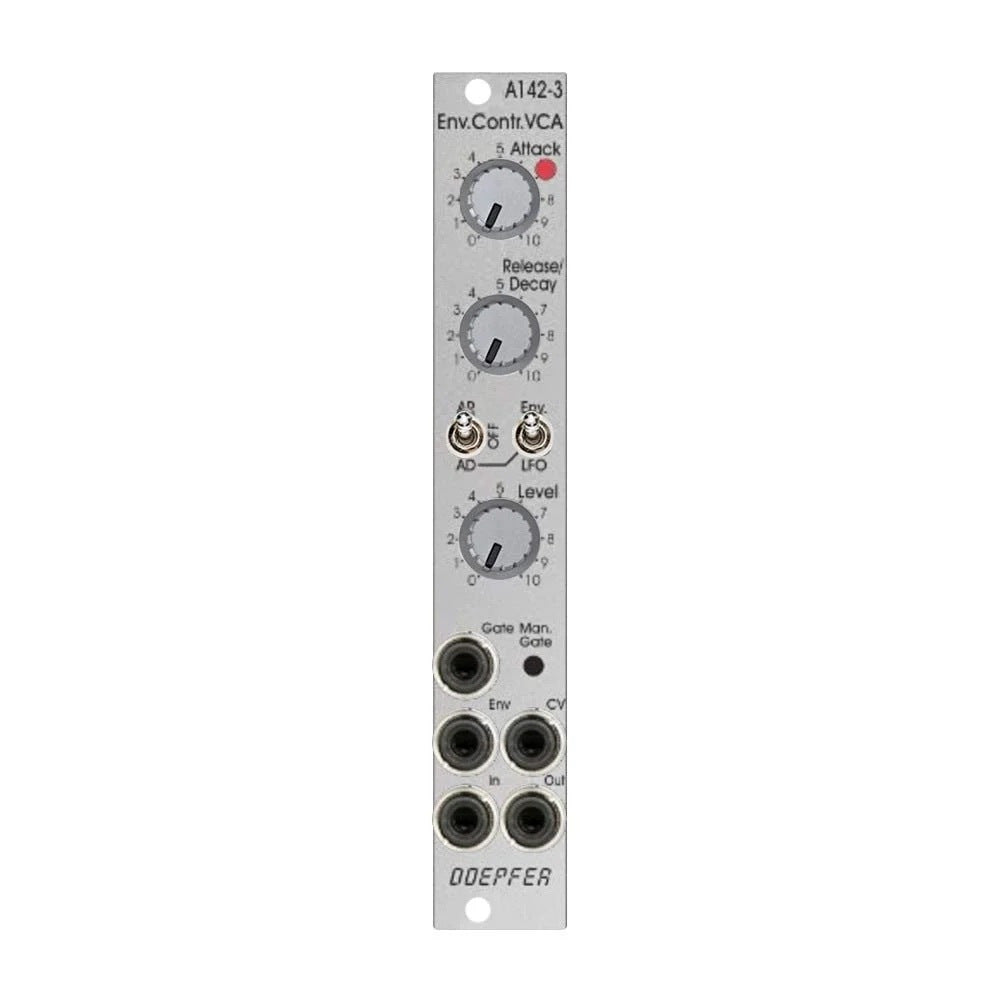

Doepfer A-142-3 Envelope/LFO Controlled VCA

The Doepfer A-142-3 combines an envelope generator and VCA into a compact 4HP module, making it an easy way to create complete percussive voices with minimal patching. Switchable between AD, AR and looping LFO modes, it offers hands-on control over attack and decay/release times, plus a manual gate button for instant triggering. An independent envelope output lets you animate filters or other modulation destinations, while external CV can take over VCA control for even greater flexibility.

Specs

• Combined AD/AR envelope generator, LFO and VCA
• Switchable AD, AR and looping LFO modes
• Attack and release/decay controls
• Manual VCA input level control
• Gate input with manual trigger button
• Audio VCA input and output
• Dedicated envelope output
• External CV input for VCA control
• Rear jumper configuration for extended functions
• Audio-only VCA
• 4HP Eurorack module
• Made in Germany

Product Specs

• Item Number: 42588
• Make: Doepfer
• Model: A-142-3
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator VCA
• Made In: Germany
• MPN: A-142-3
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 20 mm deep
• Power*: 20 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
