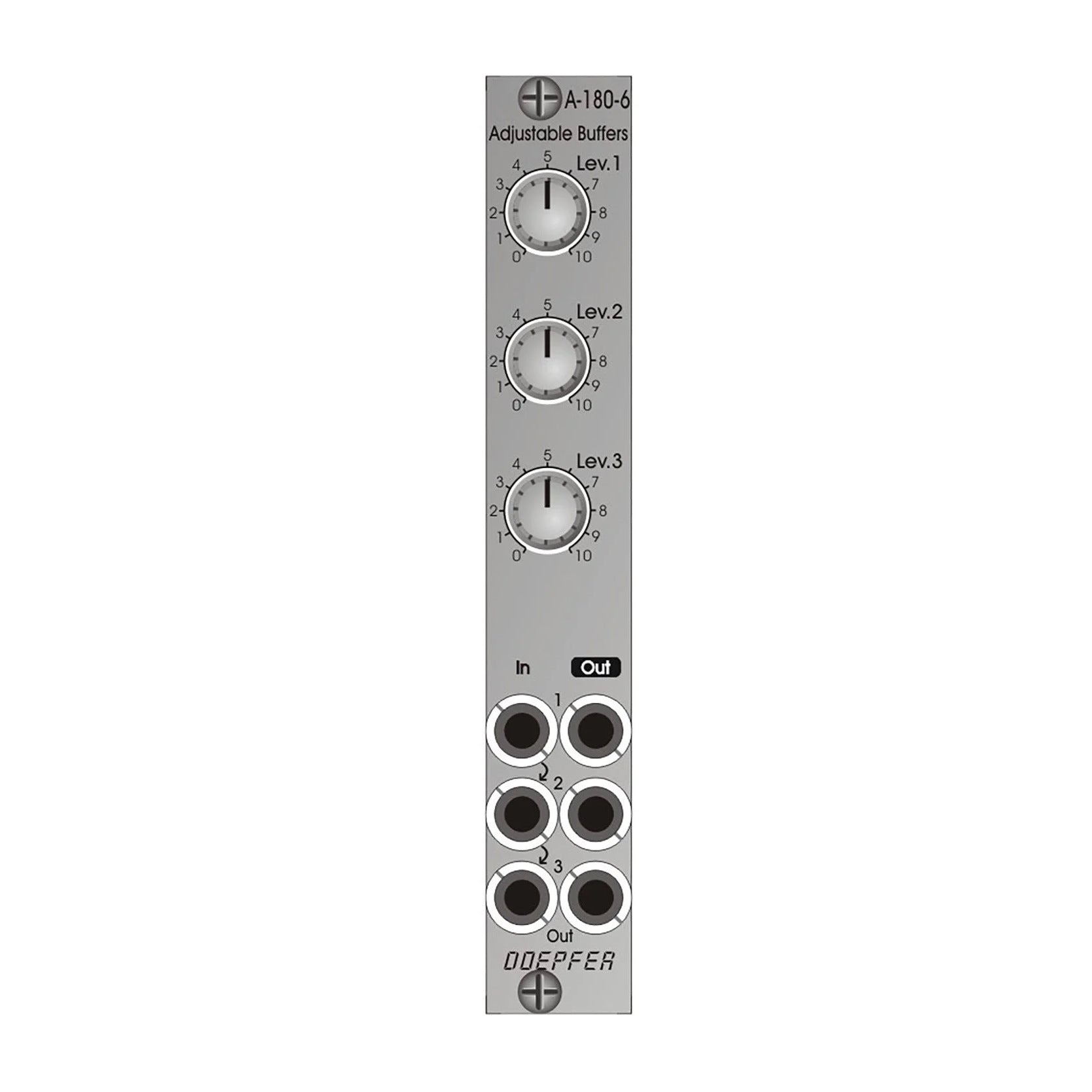

Doepfer A-180-6 Triple Adjustable Buffer/CV Source

The Doepfer A-180-6 Buffer is a compact utility module designed for buffering, distributing and scaling signals throughout a Eurorack system. The A-180-6 features three independent channels with dedicated level controls, making it equally useful for attenuating modulation signals, distributing CV to multiple destinations, or providing manual voltage control when no input is connected. Normalled inputs allow the module to function as a buffered multiple with independent output levels on each channel.

Specs

• Eurorack buffered multiple and signal scaler
• Three independent buffer channels
• Dedicated level control per channel
• DC-coupled design
• Suitable for CV and audio signals
• Normalled inputs across all channels
• Functions as a buffered multiple
• Independent output scaling per channel
• Manual voltage source when inputs are unpatched
• Maximum gain of 1x per channel
• Suitable for signal distribution and attenuation

Product Specs

• Item Number: 42587
• Make: Doepfer
• Model: A-180-6
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Controller CV Modulation Multiple
• Made In: Germany
• MPN: A-180-6
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 30 mm deep
• Power*: 10 mA +12V 10 mA -12V 0 mA 5V

* User contributed details
