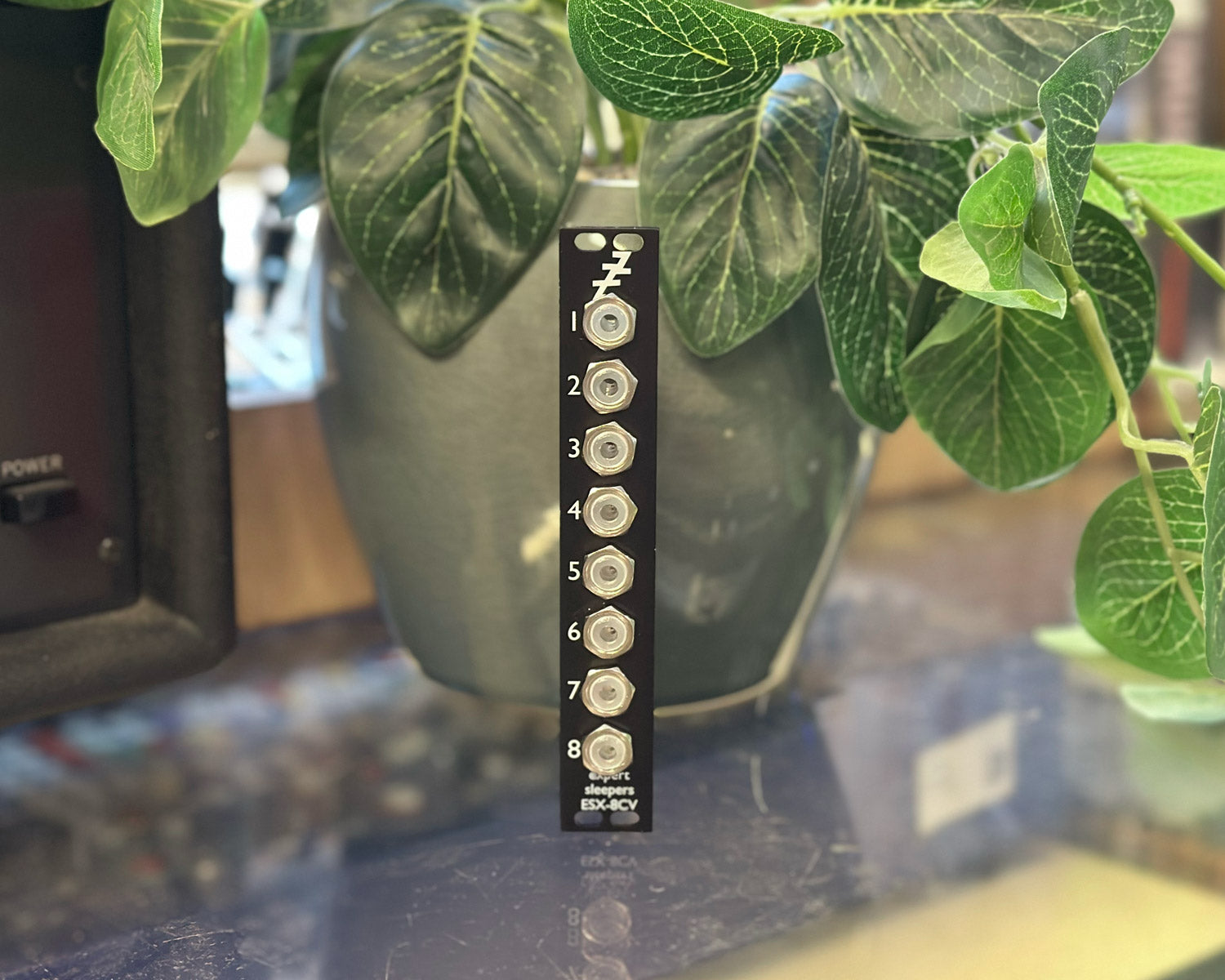

Expert Sleepers ESX-8CV MkII CV Expander

The ESX-8CV is an expansion module for the ES-4, ES-40 or ES-5, adding eight CV outputs from one expansion header.

In order to squeeze eight 12 bit channels through one 8 bit connection, the channels are time-multiplexed and so effectively run at between one-third and one-twenty fourth of the audio sample rate. For example, if the audio interface/DAW is running at 48kHz, the ESX-8CV's outputs are running at between 16kHz and 2kHz, depending on how many channels are active. This is still plenty fast enough for most CV purposes, except for audio-rate modulation and the very fastest envelopes. Because the outputs are still derived from the audio stream, they retain the advantages of the ES-3/4 over traditional MIDI-based interfaces, that is, rock solid timing and absence of jitter.

Read More

Video: https://youtu.be/EC0MlvU-umo

Product Specs

• Item Number: 42513
• Make: Expert Sleepers
• Model: ESX-8CV MkII
• Condition: Very Good
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Expander
• Made In: United Kingdom
• MPN: 42513
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 49 mm deep
• Power*: 41 mA +12V 33 mA -12V 0 mA 5V

* User contributed details
