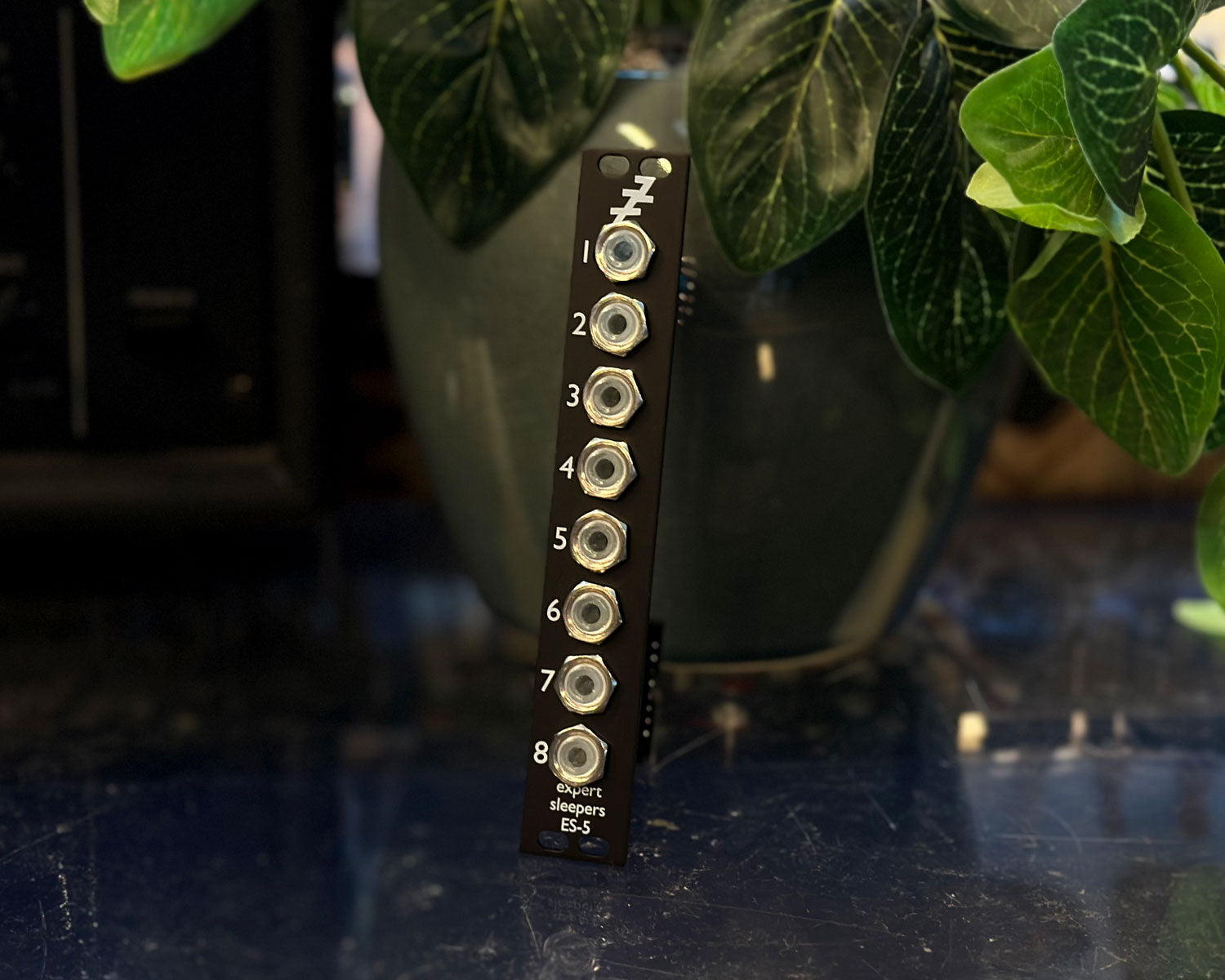

Expert Sleepers ES-5 mk2 Gate, Clock and Sync Expander for the ES-3

Expert Sleepers ES-5 mk2 Gate, Clock and Sync Expander for the ES-3

The Expert Sleepers ES-5 is a gate, clock, sync, and MIDI expansion module designed for use with the Expert Sleepers ES-3 Lightpipe/CV Interface. By piggybacking on a single stereo output pair from the ES-3, the ES-5 dramatically expands the number of available digital outputs within an Expert Sleepers modular control system.

The module provides eight independent digital outputs capable of handling gates, triggers, clocks, sync signals, and MIDI transmission directly from compatible software environments. In addition to its own outputs, the ES-5 also functions as a hub for further expansion, supporting up to six additional expansion modules such as the ESX-8GT Gate Expander or ESX-4CV.

This architecture allows a single ES-3 system to scale into a highly flexible modular control environment capable of handling large numbers of gates, clocks, drum triggers, sequencer signals, MIDI outputs, and CV expansion duties from a DAW or software sequencer.

The ES-5 integrates particularly well with Silent Way, Max/MSP, Ableton Live, Bitwig Studio, VCV Rack, and other software environments capable of routing digital control data through the ES-3 platform.

Features

  • Expansion module for the Expert Sleepers ES-3
  • Provides eight digital gate/clock/sync/MIDI outputs
  • Uses one stereo channel pair from the ES-3
  • DC-coupled outputs
  • LED indicator per channel
  • Supports further system expansion via onboard headers
  • Compatible with:
  • ESX-8GT Gate Expander
  • ESX-4CV
  • Additional Expert Sleepers expansion modules
  • Suitable for clocks, triggers, gates, sync, and MIDI transmission
  • Integrates tightly with DAW-based modular control systems

Connectivity

Digital Input

  • Connection from ES-3 module

Outputs

  • 8 × 3.5mm DC-coupled outputs
  • Output voltage:
  • 0V / 5V

Expansion

The ES-5 includes six expansion headers for connecting additional modules such as:

  • Expert Sleepers ESX-8GT
  • Expert Sleepers ESX-4CV
  • Other compatible Expert Sleepers expanders

Designed For

  • DAW-controlled modular systems
  • Clock and trigger generation
  • Modular drum sequencing
  • MIDI-to-modular workflows
  • Silent Way systems
  • Expanded ES-3 routing setups
  • Hybrid Eurorack/software environments

Includes ribbon cable.

Video: https://youtu.be/87Y2M7P8FeQ
