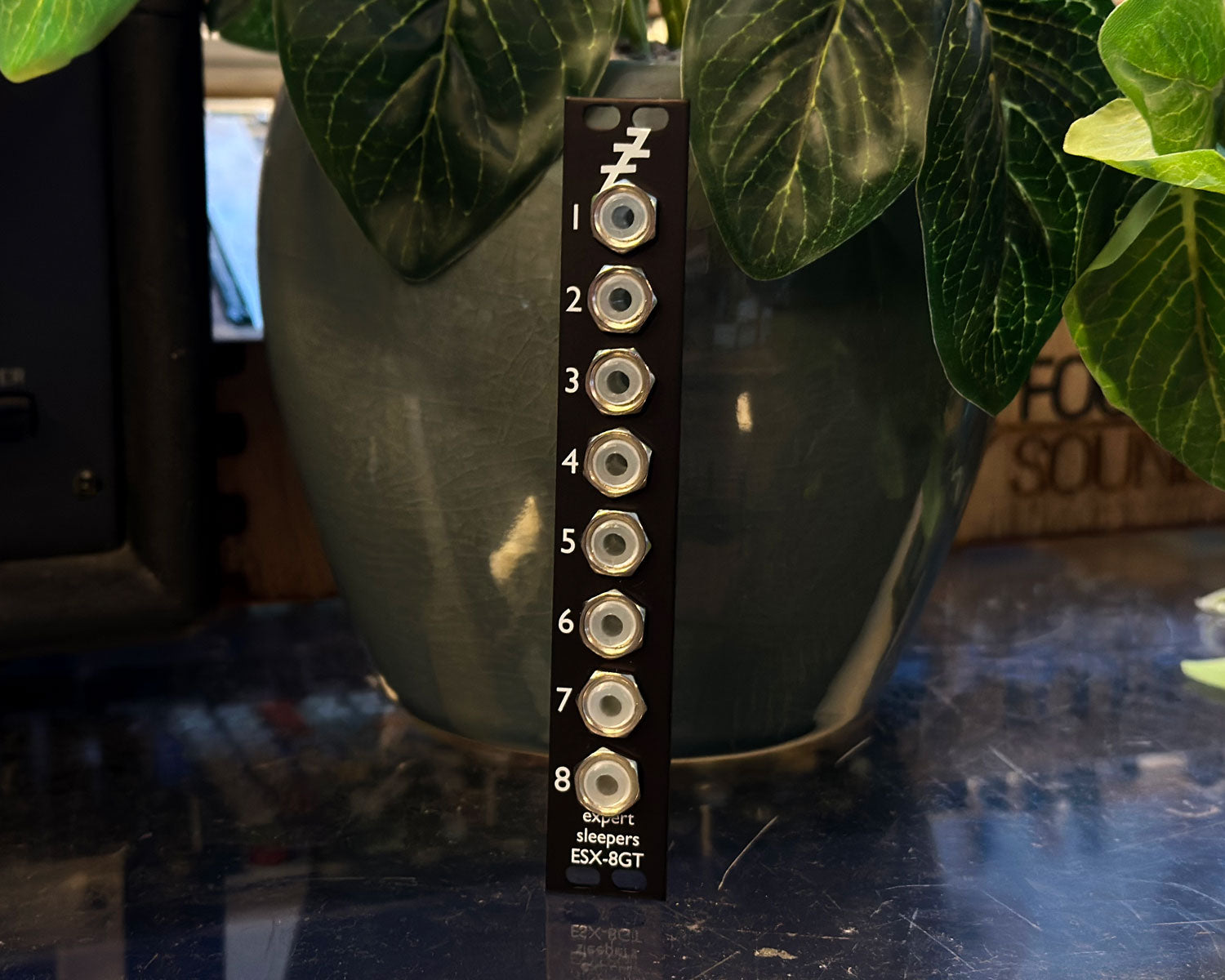

Expert Sleepers ESX-8GT Mk III Gate Expander with MIDI Outs

The ESX-8GT is an expansion module for the ES-4, ES-40, ES-5 or FHX-8GT, adding 8 on/off outputs for use as gates, triggers, clocks etc. from one expansion header.

The ES-4/5 Controller software (part of Expert Sleepers Silent Way) also allows the ESX-8GT outputs to be used for DIN sync or MIDI output* (note - not just MIDI clock output, but as an actual MIDI port, capable of sending any MIDI messages). Since these outputs are driven from an audio connection, they have sample-accurate timing, which no USB MIDI interface can claim. See the accessories page for the necessary cables. Note there is also the ESX-8MD module, which is dedicated to MIDI and DINsync duties.

Includes ribbon cable.

Product Specs

• Item Number: 42444
• Make: Expert Sleepers
• Model: ESX-8GT Mk III
• Condition: Very Good
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: MIDI Digital Expander
• Made In: Scotland
• MPN: 42444
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 24 mm deep
• Power*: 5 mA +12V 0 mA -12V 0 mA 5V

* User contributed details
