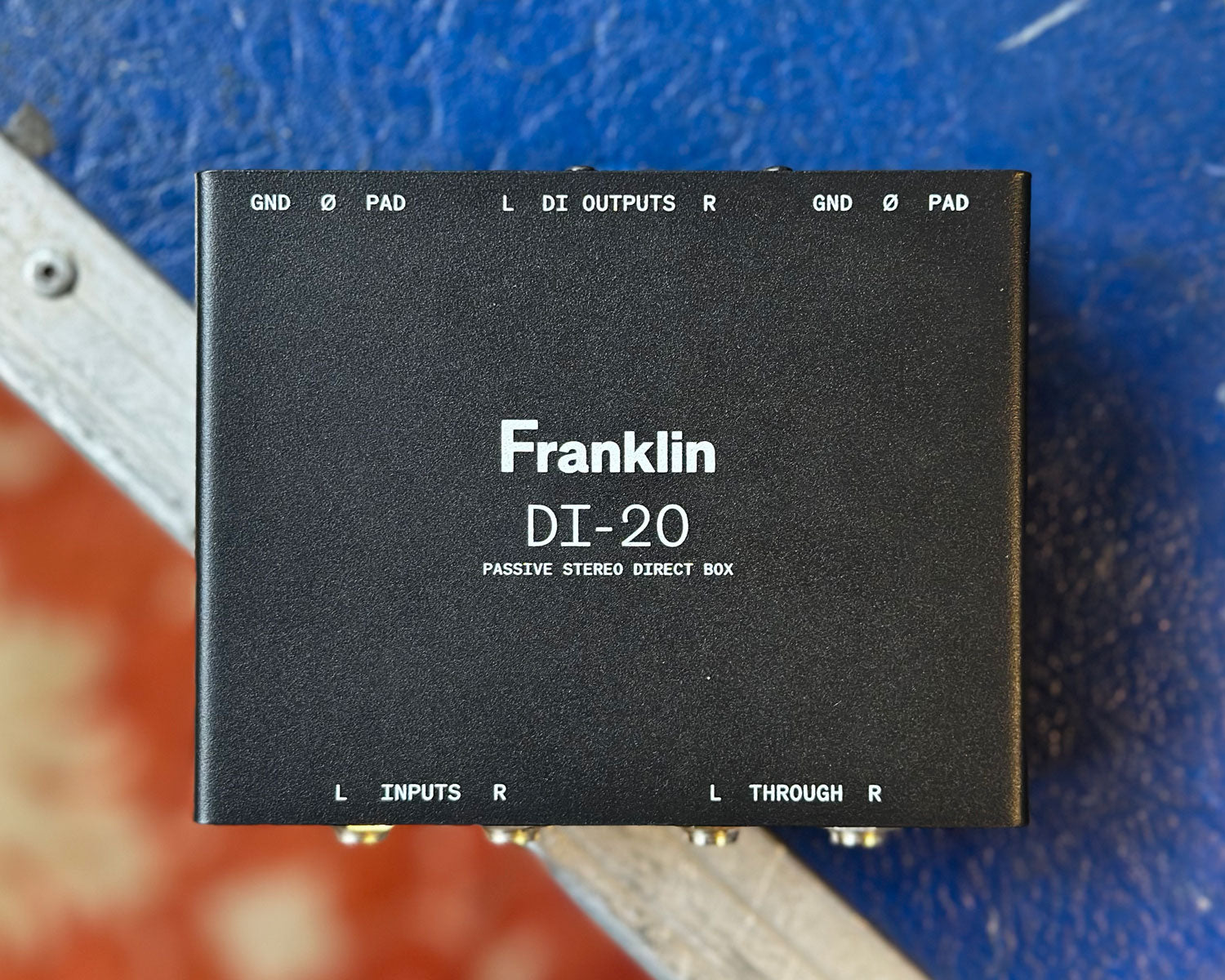

Franklin Audio DI-20 Stereo Passive DI Box

Aussie-made low-profile stereo DI/re-amp box made for synths, drum machines, pedals and stereo effects setups.

Built around dual custom-wound transformers with high headroom, low noise and a clean, uncoloured response, so it gets stereo sources into mic pres or recording chains without adding hum, tone shift or extra nonsense.

Compact desktop-friendly format that sits easily in a studio or live setup. Simple, quiet, useful box for getting stereo gear interfaced properly.

Specs:

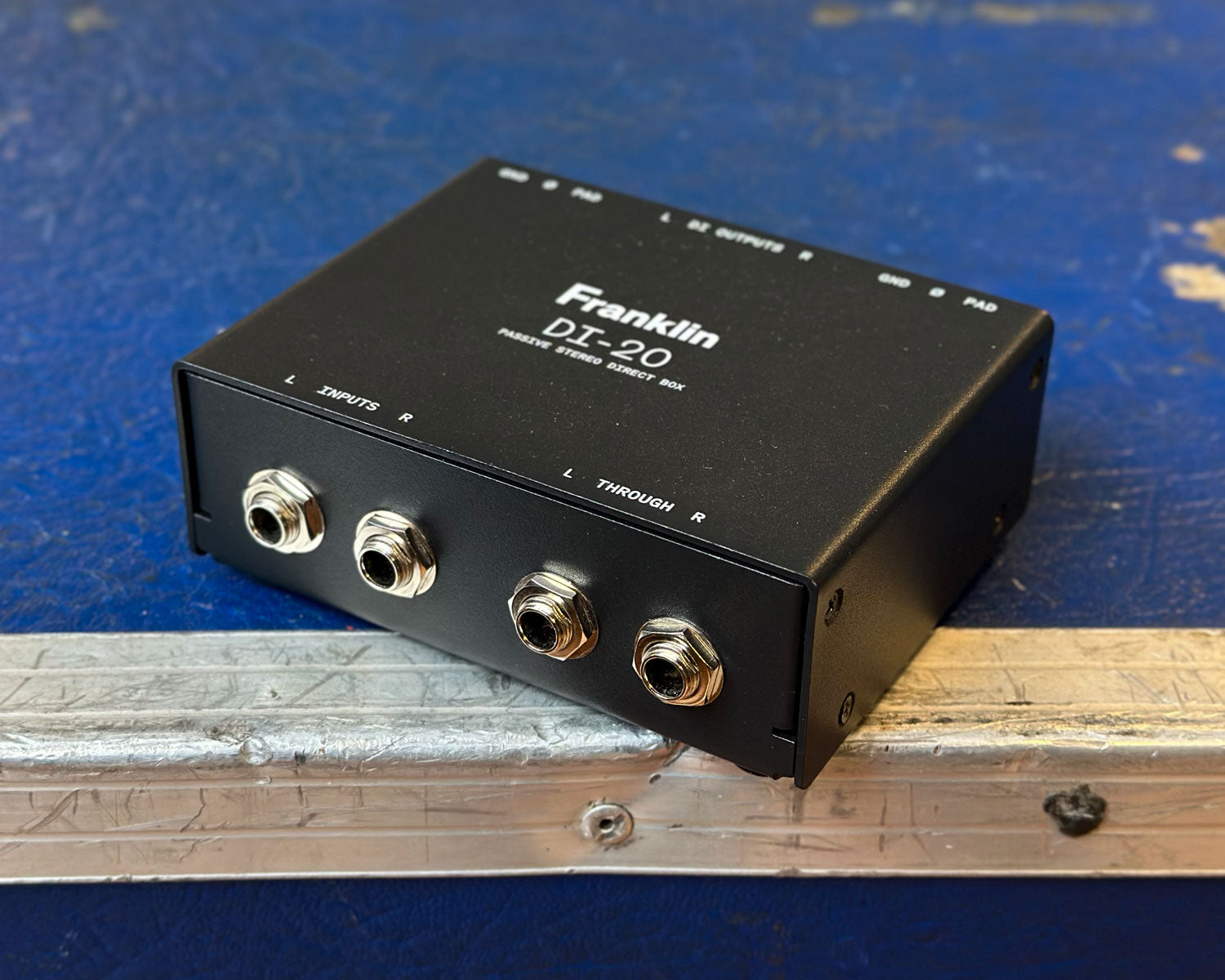

• 2 × 6.35 mm TS unbalanced inputs

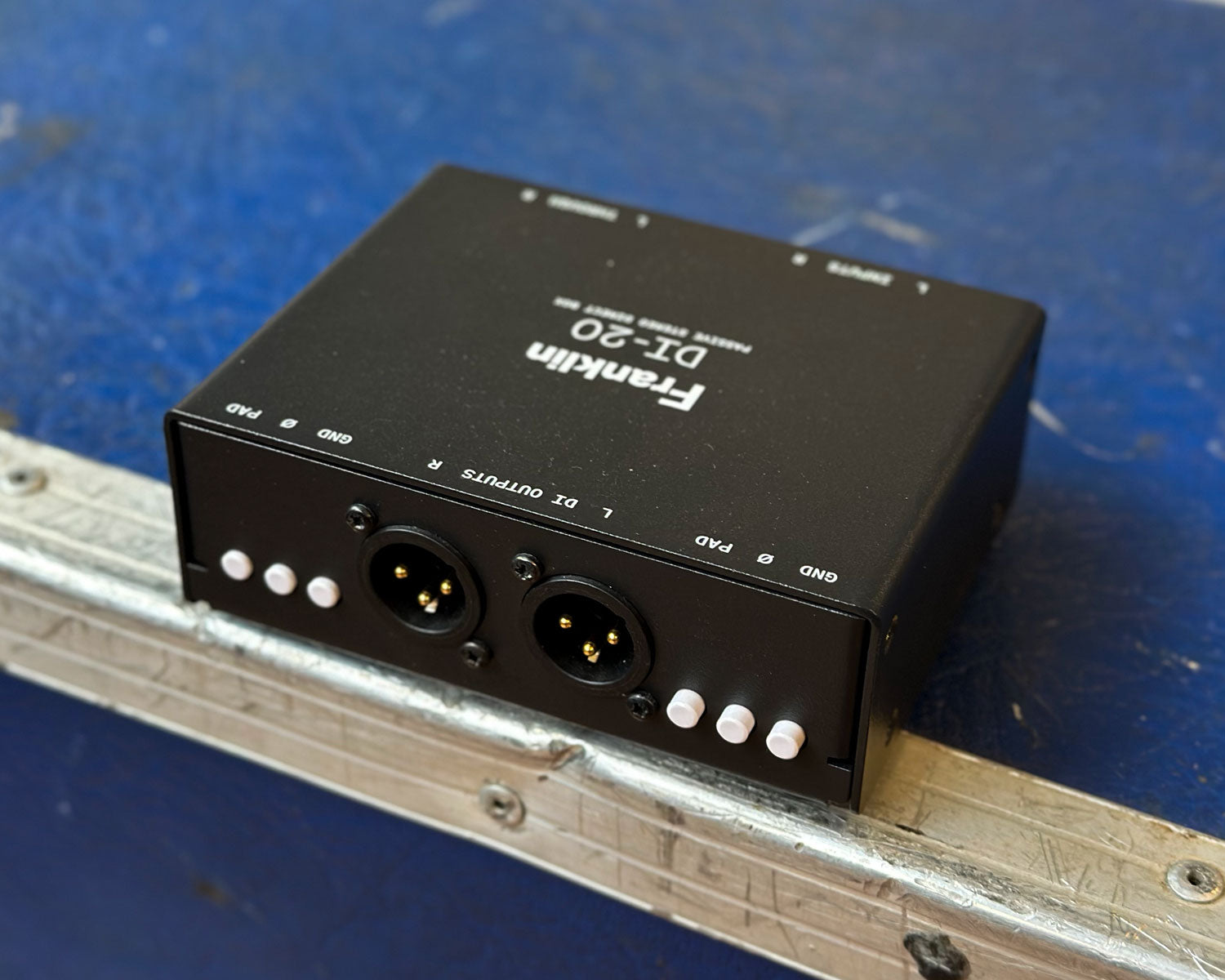

• 2 × XLR balanced microphone-level outputs
• 2 × 6.35 mm TS unbalanced thru outputs
• Passive operation
• 20 Hz – 20 kHz frequency response (±0.2 dB)
• 10 Hz – 50 kHz frequency response (±1 dB)
• 150 kΩ input impedance
• 150 Ω output impedance

• +22 dBu maximum input level

• -22 dB gain range
• -42 dB gain range with PAD engaged
• 0.001% THD+N at 1 kHz, +20 dBu input
• 0.07% THD+N at 1 kHz, -20 dBu input
• < -105 dBV noise floor

Product Specs

• Item Number: 42411
• Make: Franklin Audio
• Model: DI-20
• Condition: Very Good
• Finish: Black
• Categories: pro-audio ⇒ di-boxes
• Made In: Australia
• MPN: 42411
