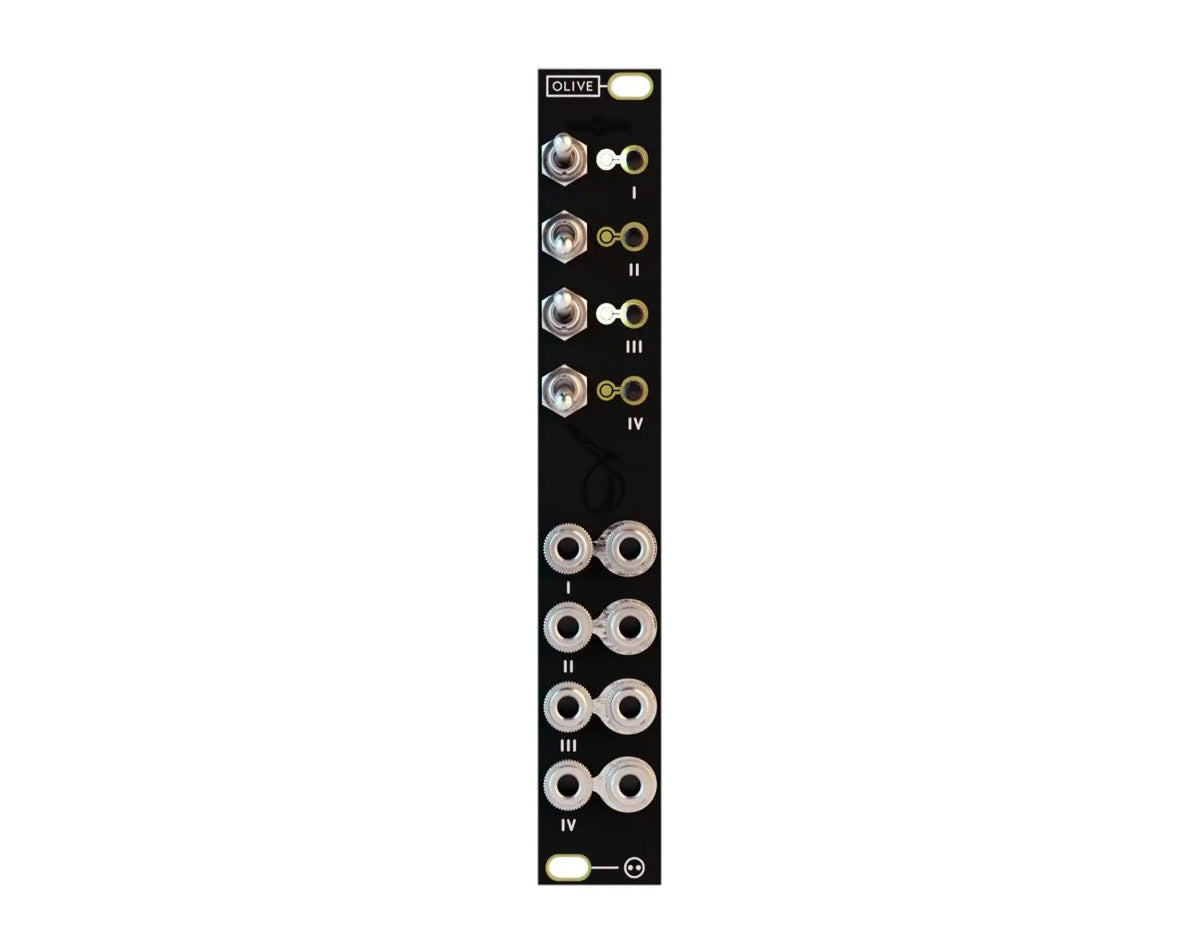

NOH Modular Olive

The NOH Modular Olive is a quad performance gate module. It lets the input through the output only when the respective push buttons are pressed, and it can be latching or momentary depending on which mode is selected with the toggle switch. LEDs will light up to indicate when the signal comes through. When nothing is connected to an input, the module will automatically input +5V instead.

Video: https://youtu.be/AhKdBiSd21w

Product Specs

• Item Number: 42326
• Make: NOH Modular
• Model: Olive
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Controller Quad Switch Utility
• Made In: United Kingdom
• MPN: NOHM04
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 4 HP 27 mm deep
• Power: 10 mA +12V 10 mA -12V 0 mA 5V
