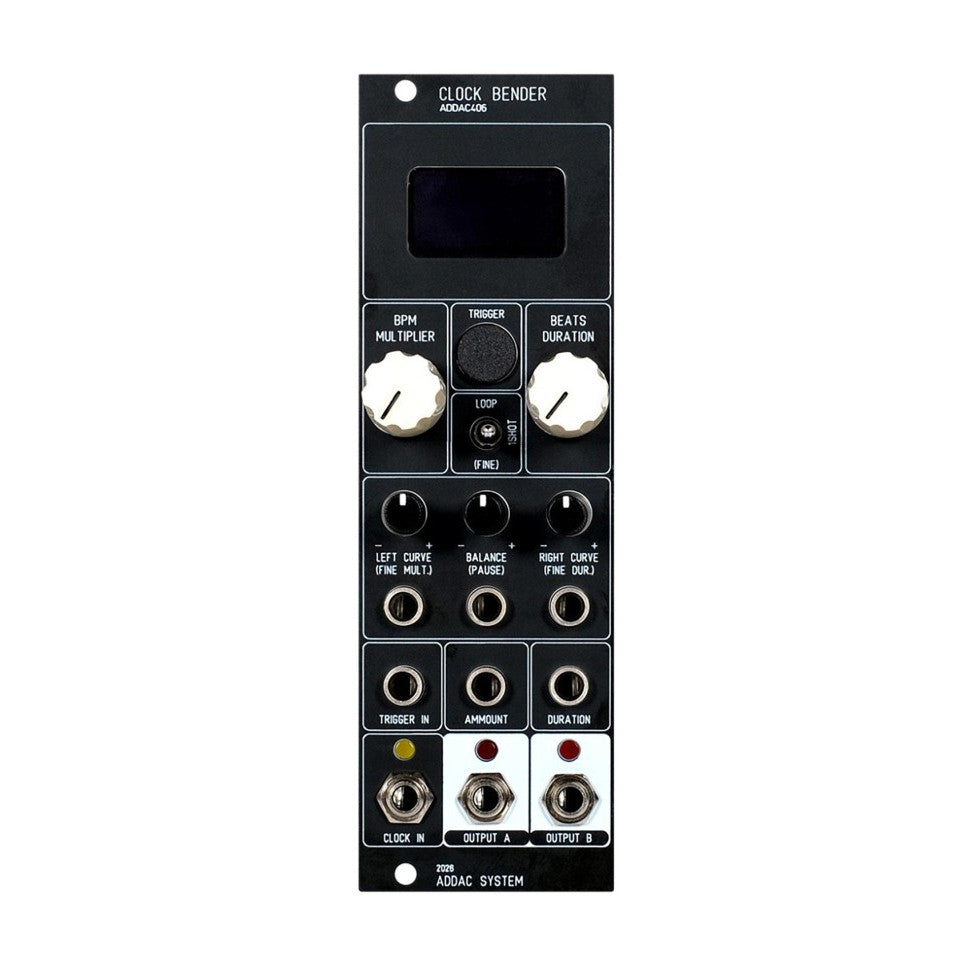

ADDAC System ADDAC406 Clock Bender

The ADDAC406 is a dual-channel clock modulation module designed for creating controlled accelerations and decelerations from an incoming clock source. Rather than generating static divisions or multiplications, the Clock Bender allows clock rates to smoothly transition between tempos over a defined number of beats, opening up possibilities for evolving polyrhythms, bouncing-ball effects, tempo ramps and other unconventional timing structures. All major parameters can be voltage controlled, allowing clock manipulation to become an active part of a patch. An OLED display provides clear visual feedback, while loop and one-shot modes make it easy to create anything from repeating tempo shifts to momentary rhythmic events.

Specs

• Dual-channel clock modulation module
• Single clock input
• 2 independent clock outputs
• Creates controlled clock accelerations and decelerations
• BPM Multiplier control for target tempo selection
• Beats Duration control for defining transition length
• Balance control for modulation shape adjustment
• Adjustable curve response from linear to exponential
• Voltage control over modulation parameters
• Loop mode for continuous operation
• One-shot mode for triggered tempo changes
• Fine control mode with pause functionality
• Trigger input for starting and retriggering functions
• Multifunction button with short, long and double-press actions
• OLED display for visual feedback
• Suitable for complex clocking, evolving rhythms and experimental timing applications

Product Specs

• Item Number: 42248
• Make: ADDAC System
• Model: ADDAC406 Clock Bender
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Made In: Portugal
• MPN: ADDAC406
