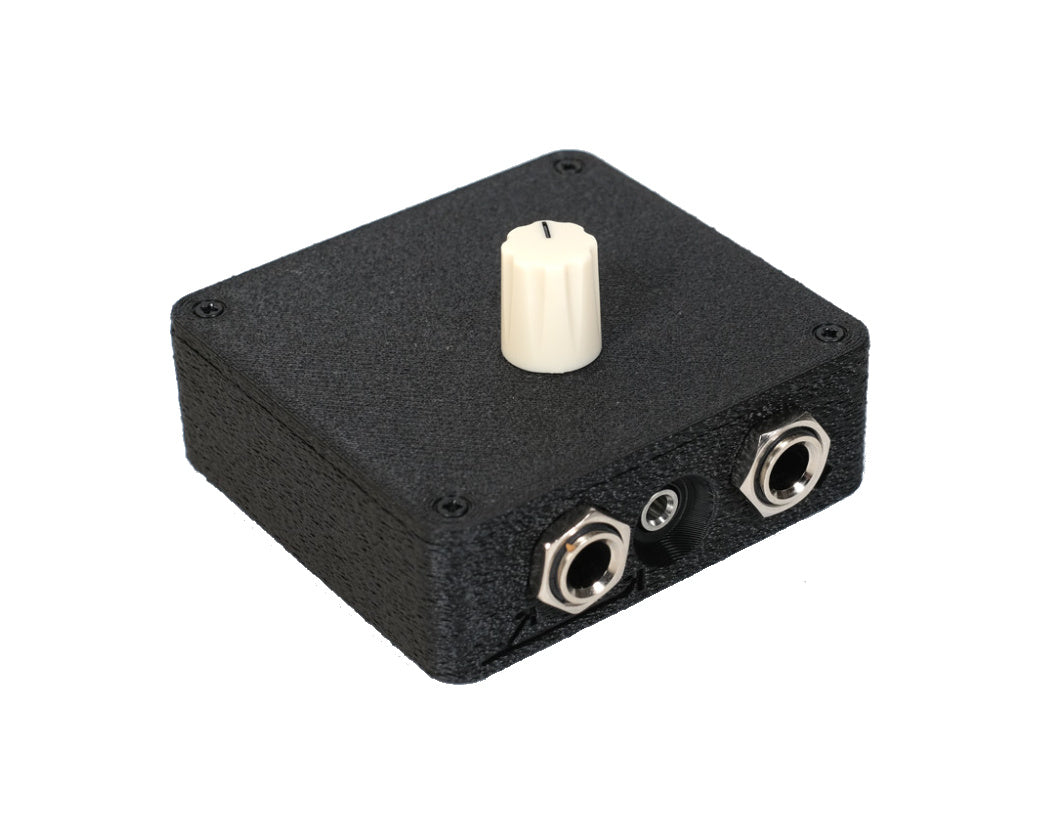

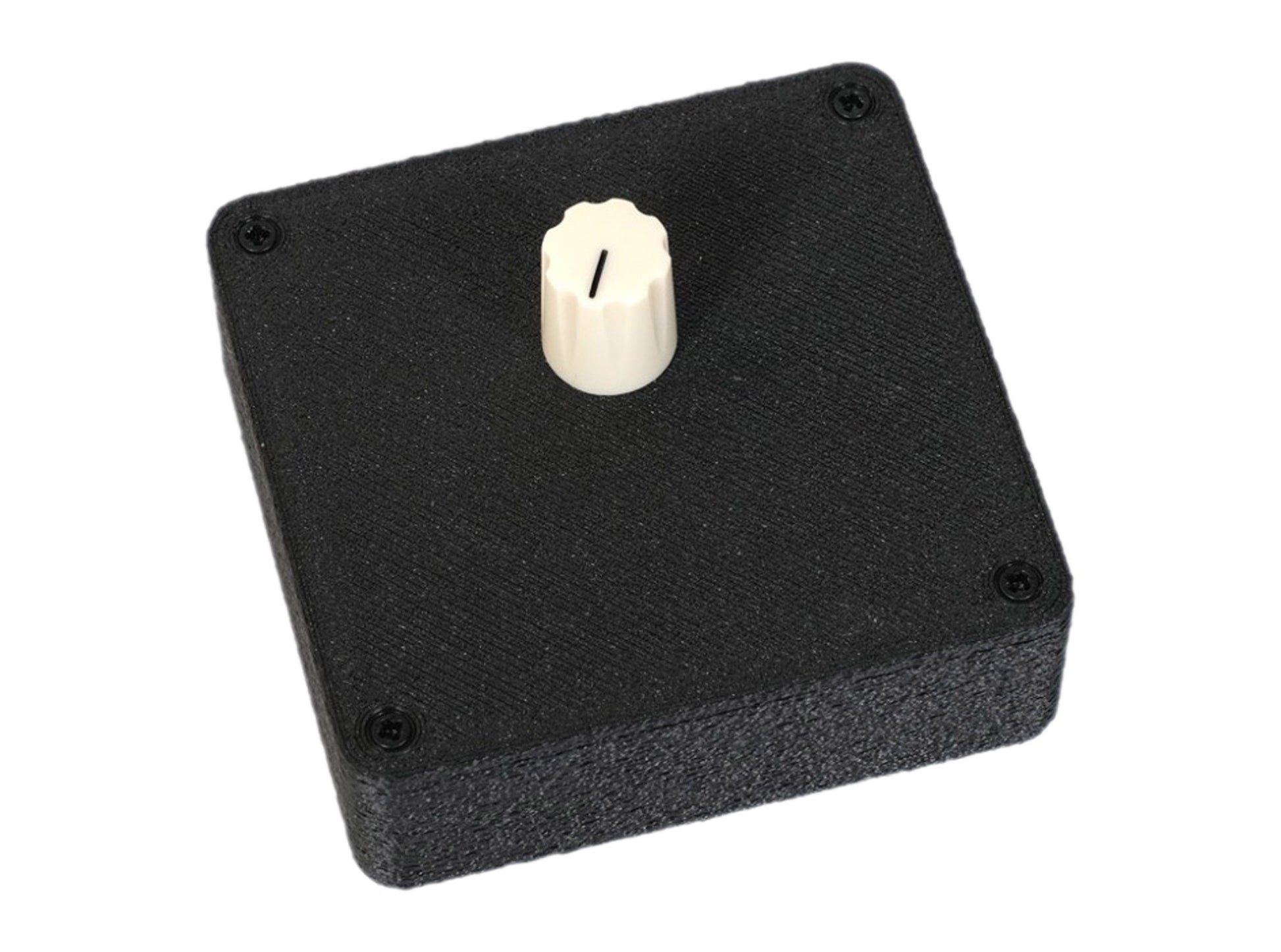

ADDAC System ADDAC005 CV 2 Expression Control Effect Pedals TRS Inputs

A compact converter designed to bridge modular synths and expression-enabled pedals. The ADDAC005 allows CV signals to control pedal parameters directly via a standard TRS expression input, removing the need for custom cables or external attenuation. Its passive design draws the required reference voltage from the connected pedal, while the onboard attenuator provides precise control over modulation depth and can also function as a manual expression control when no CV source is connected.

Specs

• Standalone CV to expression converter
• Converts CV signals for TRS expression pedal inputs
• Compatible with guitar pedals and other expression-controlled devices
• Passive operation
• Powered by the connected pedal's expression circuit

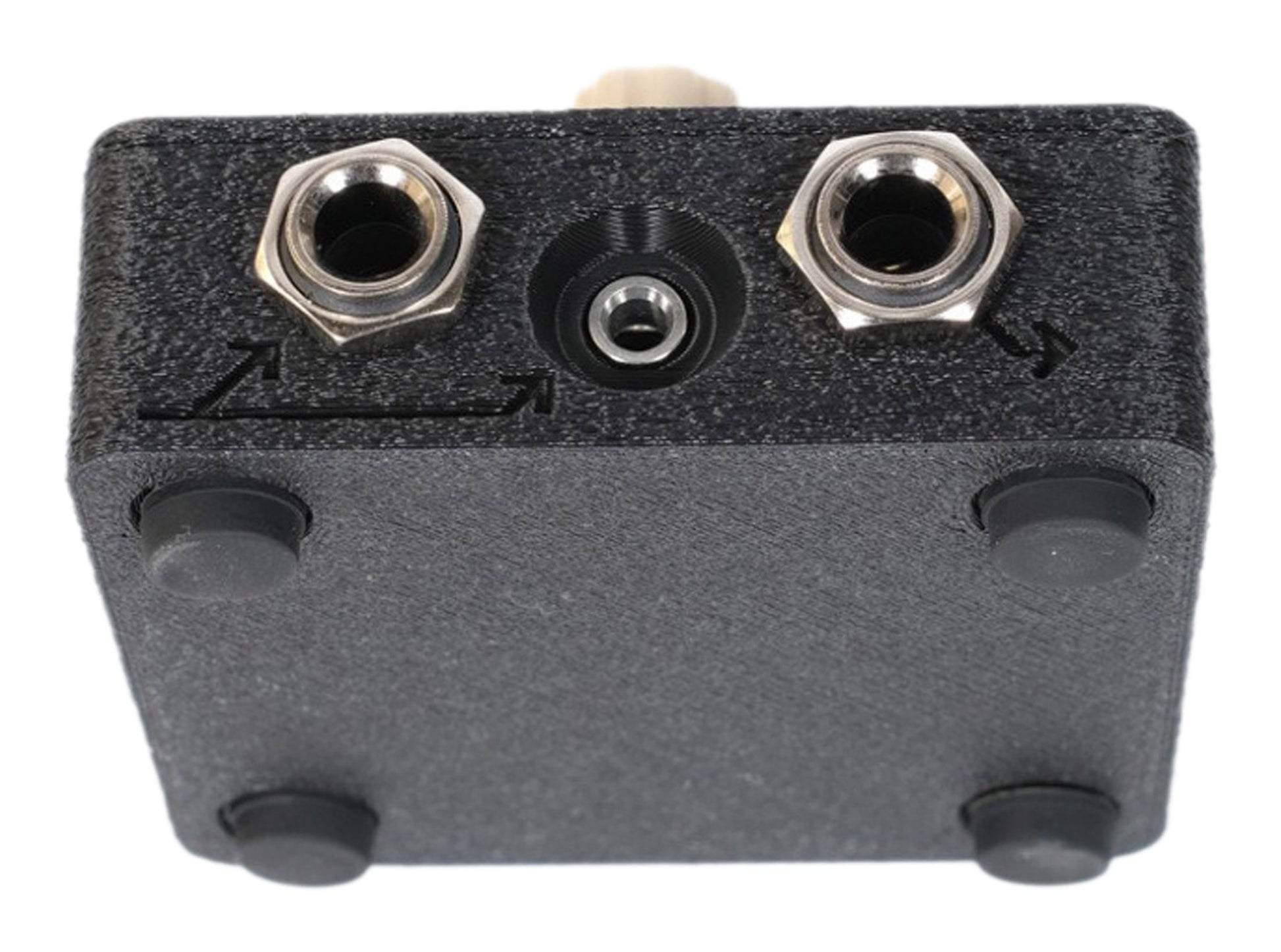

• 3.5 mm CV input
• 1/4" CV input
• TRS expression output
• Attenuator control for scaling CV range
• Attenuator functions as manual expression control when no CV is present
• 3.5 mm input takes priority when both inputs are connected
• No external power required
• Designed for integrating modular synthesisers with pedals

Product Specs

• Item Number: 42247
• Make: ADDAC System
• Model: ADDAC005 CV 2 Expression Control Effect Pedals TRS Inputs
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Made In: Portugal
• MPN: ADDAC005
