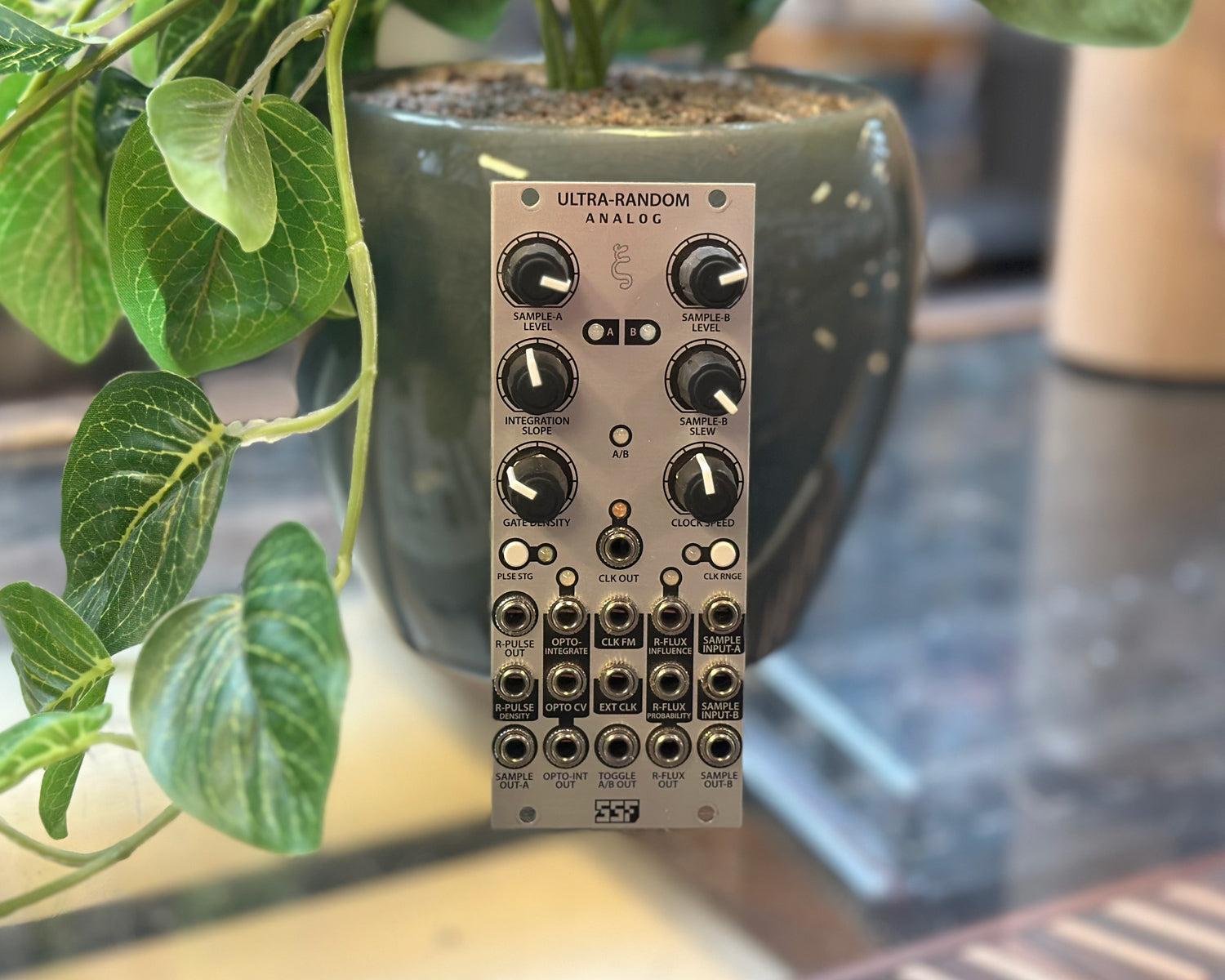

SSF Ultra-Random Analog

Analog Comprehensive Random Source with 5 Unique Outputs The URA is a random voltage source with 5 unique random outputs. 2 of which are derived from independent white noise sources snagged by 2 discrete sample and hold circuits. While the S&Hs are normaled to these noise generators, any signal can be patched into them - even non random sources, if desired. The S&H inputs have level attenuators. S&H #2 features an adjustable slew on the output. A temperature compensated 1V/OCT tracking main clock is hardwired to S&H #1 and normaled to an external clock input jack, which is wired to S&H #2. A range button sports two modes - one goes from sub to high speed audio rate, the other goes even slower to low sub audio. 1V/OCT FM input. The Toggle A/B output will toggle sampling the inputs of S&H 1 and 2. A very slight propagation delay in the sample pulse permits this output to take unique samples from the two noise sources. In effect this is a unique random source derived from two completely unrelated noise sources. A jumper selects the Toggle circuit to either always use the main clock - or - to use an external clock if patched in. Random Flux is a smooth random voltage derived from noise and jerky oscillations. Works like a 4th sample and hold with lots of slew/integration applied. The sample timing is wired to the External clk input - which is normaled to the main clock. The Flux can be influenced by positive CV - processed via an internal vactrol. The +/- probability is also voltage controllable. The random pulse output is an additional clock and digital noise source with 7 stages/divisions. The undivided pulse is the most random and the last division is much more regular. In between is well, um - in between those two degrees of randomness. As an audio source, more regularity exhibits more of a discernible tone embedded in the digital pitched noise. The density/pitch of the gates/noise is adjustable and voltage controllable from sub to audio rate. Last is an independent vactrol integrator. The integrator smooths out pulses into triangle-shaped voltages at the output. Therefore, the random pulses are normaled to the integrator input - but any signal can be patched into it for processing. This vactrol integrator is different from a normal integrator in that the output is a non-linear curve rather than a linear one. Think of loose S-curves along the expected linear output. The integrator speed is adjustable and voltage controllable as well.

Includes box and manual.

Video: https://youtu.be/nw3M-Lr7Wog

Product Specs

• Item Number: 42218
• Make: SSF
• Model: Ultra-Random Analog
• Condition: Excellent
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Random Sample and Hold Noise Clock Generator Envelope Generator Slew Limiter Clock Modulator Oscillator
• Year: 2014
• Made In: United States
• MPN: 42218
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 10 HP 33 mm deep
• Power: 76 mA +12V 47 mA -12V 0 mA 5V
