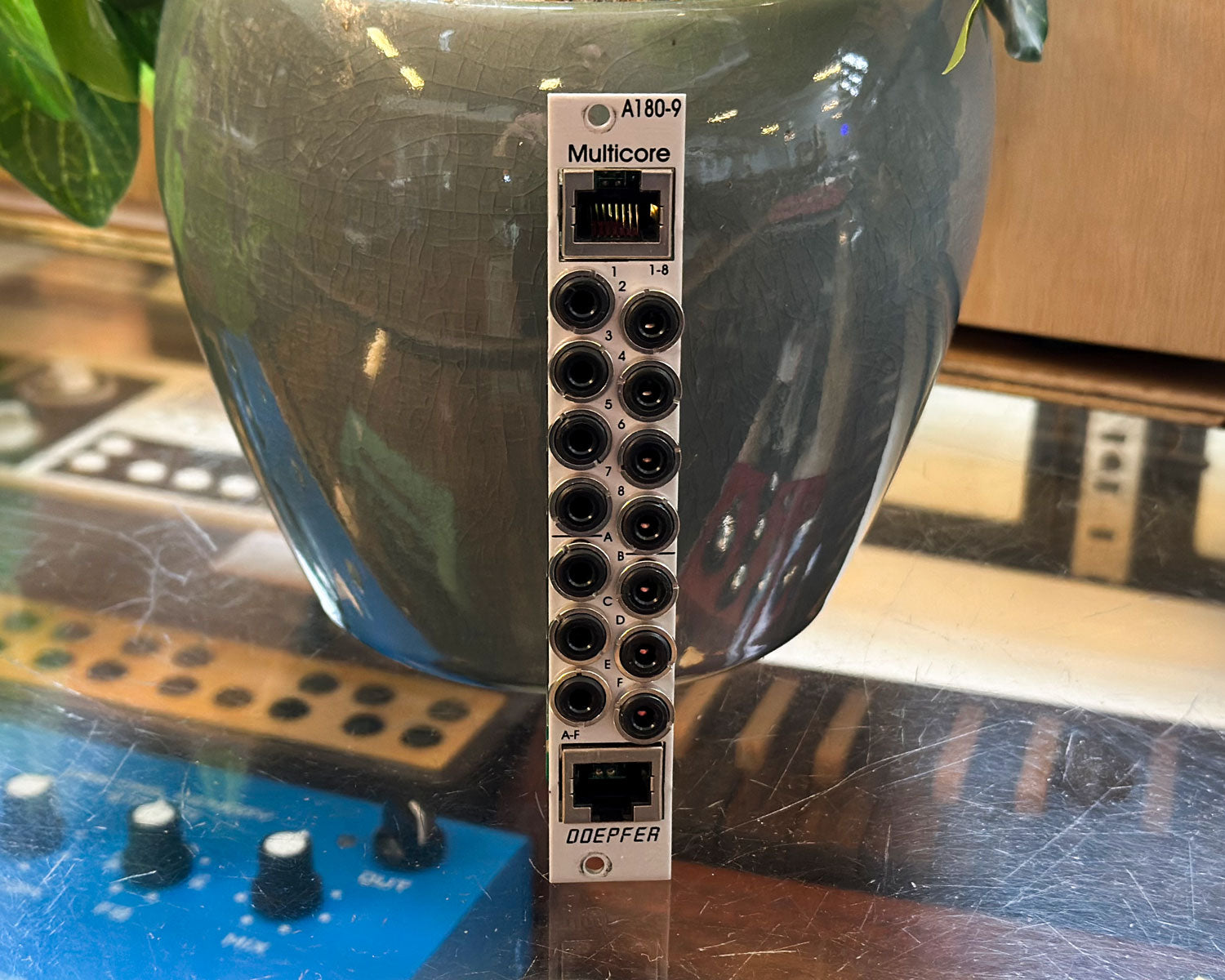

Doepfer A-180-9 Multicore

A-180-9 is a simple but useful tool when it comes to networking multiple systems or enclosures. Sold as a pair of 2 x 4HP modules, it is used to connect up to 14 audio or control signals between different A-100 enclosures with common network cables (RJ45). These cables are available worldwide in different lengths and colours easily. 2 black network cables with a length of 0.5m are included.

The upper network connection is connected to the 8 sockets 1-8, the lower one to the 6 sockets AF. In this way, the modules in the different housings for live applications can be completely pre-patched. The signals required simultaneously in the housings (eg Clock, Start, Stop, Master CV) are then connected to only one or two network cables.

Product Specs

• Item Number: 41977
• Make: Doepfer
• Model: A-180-9
• Condition: Very Good
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Utility
• Made In: Germany
• MPN: 41977
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 25 mm deep
• Power*: Module does not draw current

* User contributed details
