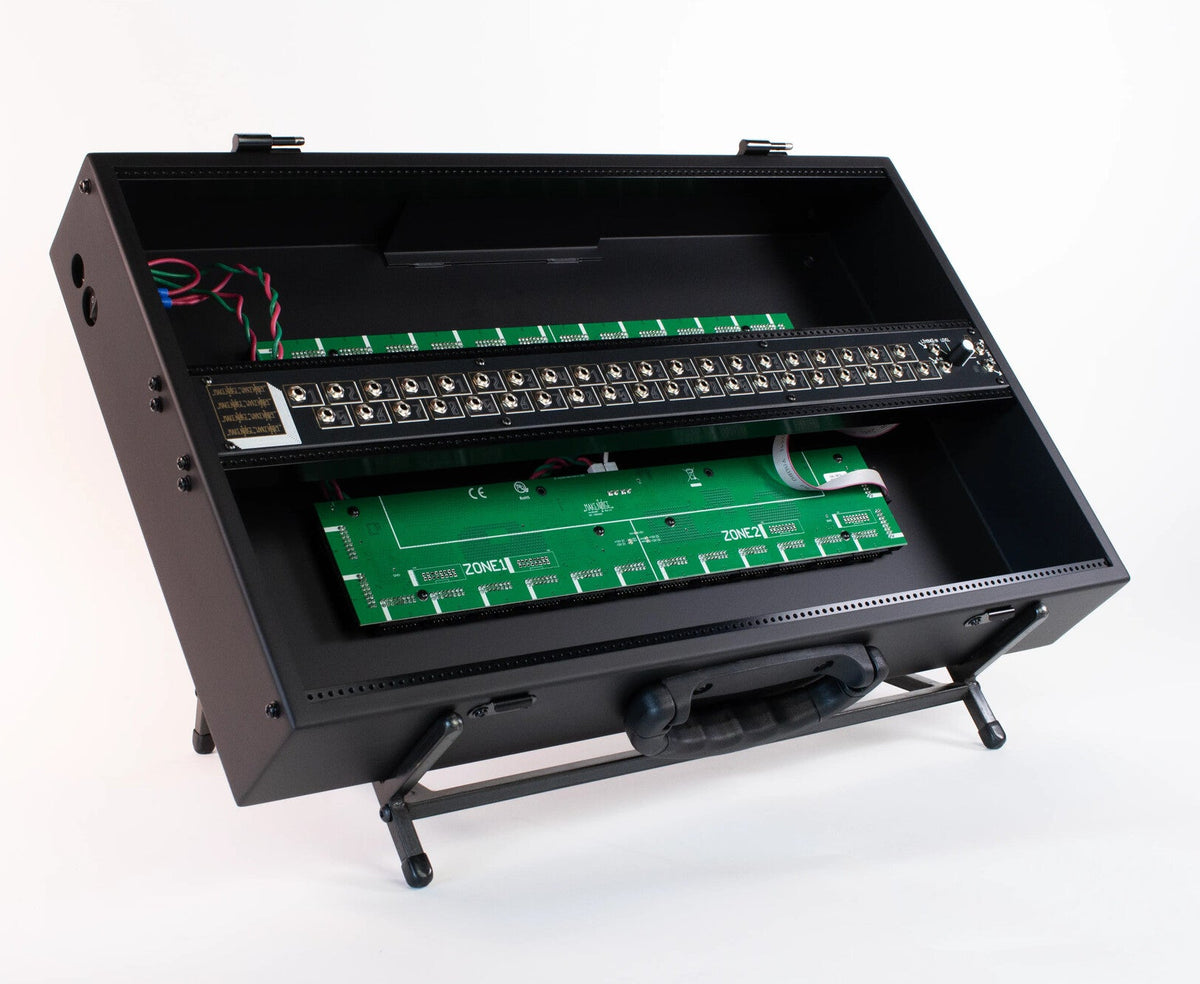

Make Noise 4 Zone CV Bus Case 7U 208HP Eurorack Case w/2 Zone Busboard

Built for a complete Eurorack system, this 208HP 7U case combines durable powder-coated metal construction with integrated power distribution, an eight-channel CV Big Bus and a stereo line driver. Its matte black finish is designed to complement Make Noise Black & Gold modules, while pairing easily with a wide range of Eurorack systems.

The removable lid can be closed with the system fully patched, making it practical for transport and setup. Updated black anodised threaded strips replace the sliding-nut design used in earlier versions.

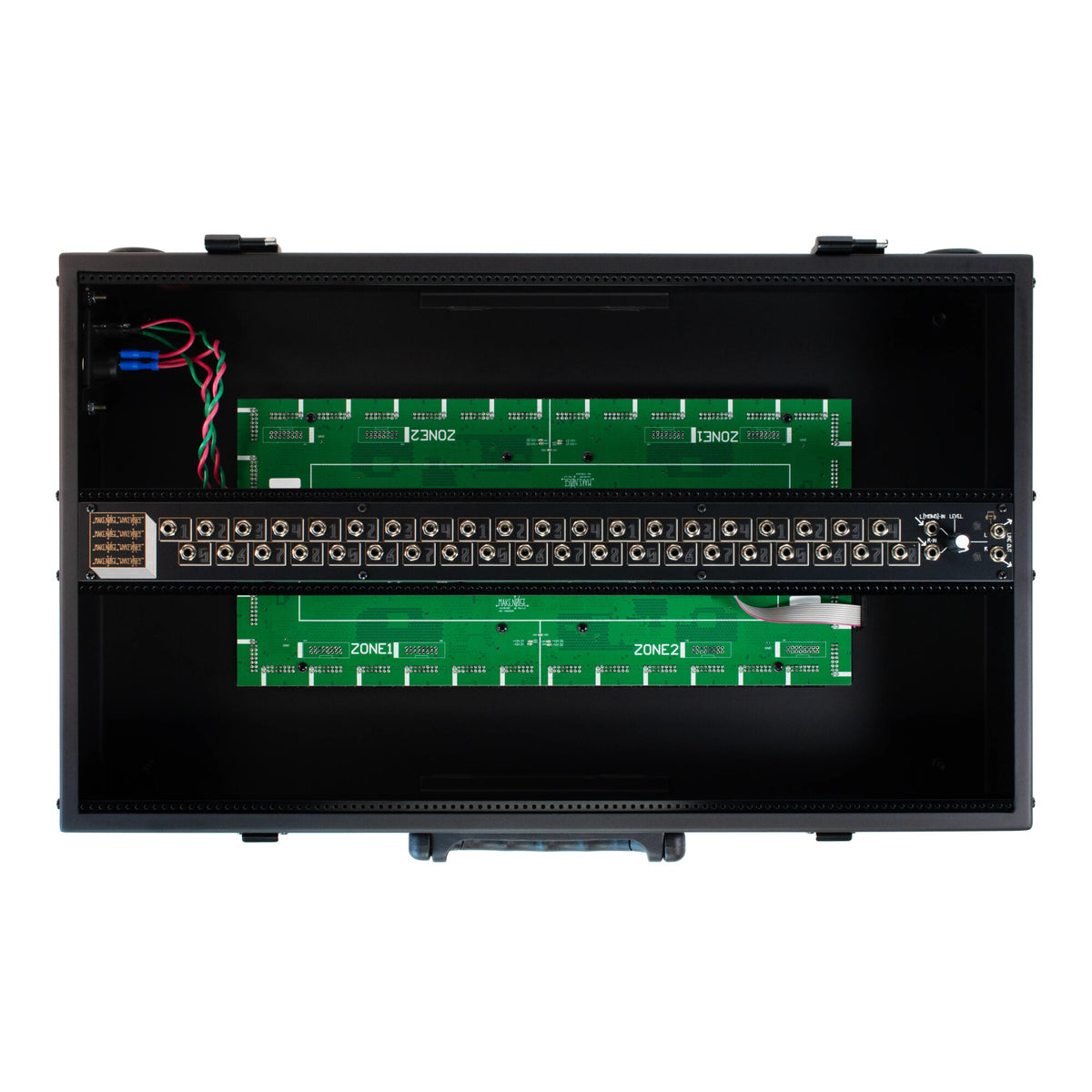

The integrated 4 Zone Power system uses two 2 Zone Power Bus Boards, providing four isolated power zones within a single case. Each zone has isolated +12VDC and -12VDC supplies with a dedicated ground return path, allowing noisy and noise-sensitive modules to be separated. The +5VDC supply is shared across the zones. Thirty-one shrouded power connectors help prevent incorrect module installation.

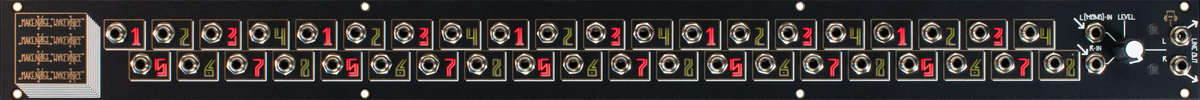

The CV Big Bus expands the original four-channel CV Bus design to eight channels, distributed through the centre of the system for clean and accessible signal routing. Illuminated numerical indicators display channel number, level, rate and polarity, helping keep complex patches organised. Suitable for clocks, modulation, sequencing, audio and other internally generated signals, the CV Bus reduces cable clutter by placing shared control signals beneath their potential destinations.

A built-in stereo line driver converts modular-level signals to line level. It features left/mono and right stereo mini-jack inputs, a master volume control and stereo line outputs. The left output also functions as a 3.5mm TRS headphone output. AC-coupled outputs and an integrated limiter with visual indication help protect headphones and PA systems when working with high signal levels.

Specifications

• Format: 7U Eurorack case
• Total width: 208HP across 3U rows; 104HP 1U row
• Outer dimensions: 22.25" × 14" × 7.25" including lid
• Maximum module depth: 2.5"
• Weight: 12.75 lb with powered bus boards and CV Bus installed
• Construction: Powder-coated metal
• Mounting system: Black anodised threaded strips with M2.5 nuts and black screws
• Power: Four isolated zones via two 2 Zone Power Bus Boards
• +12VDC: 4A total
• -12VDC: 2.4A total
• +5VDC: 1A total, shared across all zones
• Power connectors: 31 shrouded connectors
• CV Bus: Eight-channel CV Big Bus with illuminated indicators
• Output section: Stereo line driver with headphone output and limiter

Included Accessories

• AC adapter

Great paired with the Blued Steel System Stand

Product Specs

• Item Number: 41030
• Make: Make Noise
• Model: 4 Zone CV Bus Case 7U 208HP Eurorack Case
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Made In: United States
• MPN: MN-2087U4CVBCV2
