* This item is not currently in stock, orders will be fulfilled when the item becomes available.

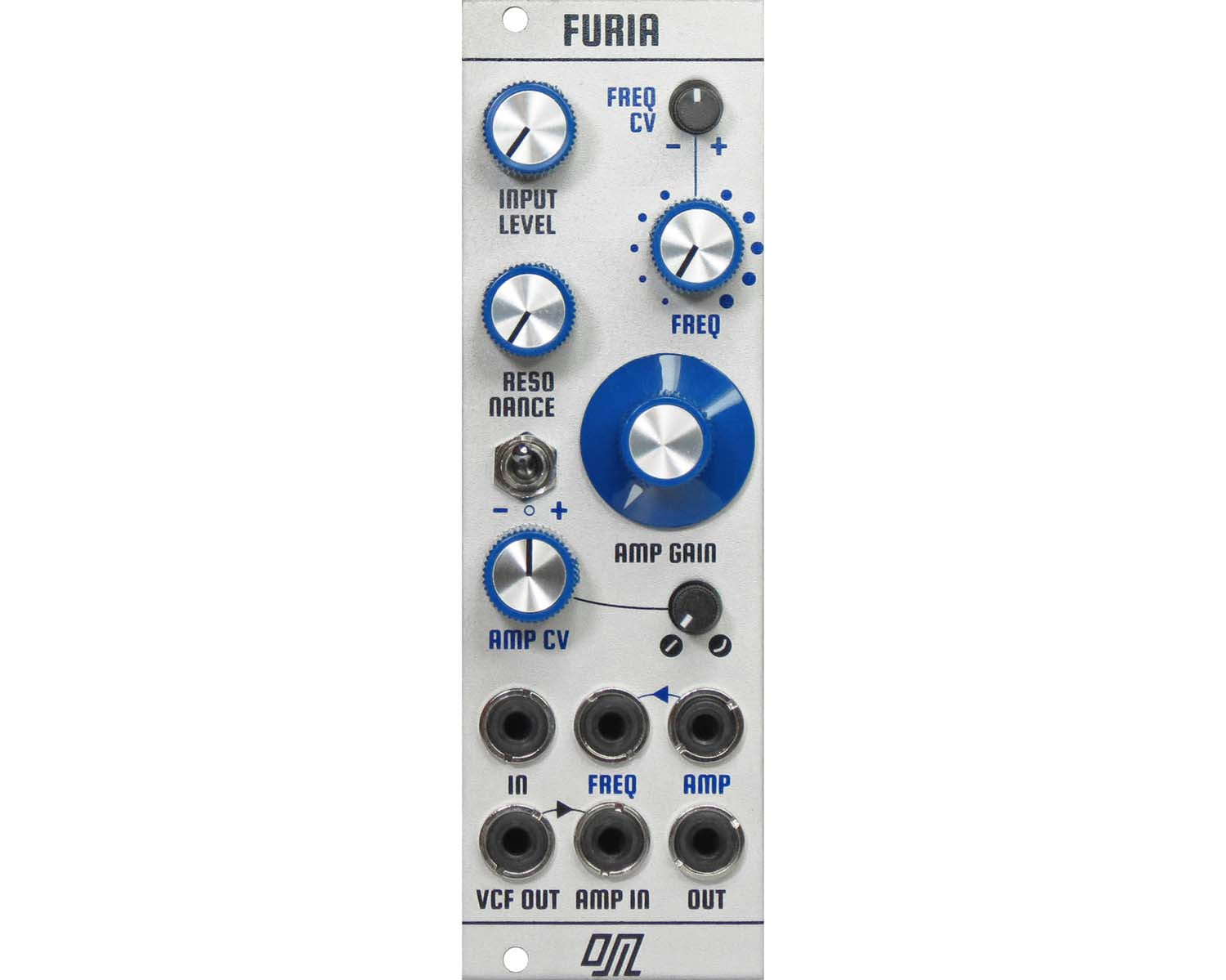

FURIA is a discrete Eurorack module that combines a 4-pole ladder low-pass filter with a transistor-based VCA. The design is inspired by vintage modular filters and avoids ICs in the audio path, using fully discrete transistor stages throughout.
There’s plenty of gain available, with the input capable of driving the filter into saturation and interacting with resonance for more aggressive tones. The filter and VCA can be used separately or linked, with flexible internal routing that allows series, parallel, or LPG-style configurations. An additional AMP input lets signals bypass the filter and feed the VCA directly.
All CV inputs support audio-rate modulation. Rear jumpers allow optional DC or AC coupling and routing changes to help manage offsets and clicks when used for audio.
8 HP, approx 25 mm depth, anodised aluminium panel, reverse power protection.
Video: https://youtu.be/okzDYIDcwwo
Product Specs
- Item Number: 40072
- Make: Olivella Modular
- Model: Furia
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Distortion Filter Low Pass Gate Mixer VCA
- Made In: Argentina
- MPN: 139.42
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 8 HP 25 mm deep
- Power: 25 mA +12V 35 mA -12V 0 mA 5V
