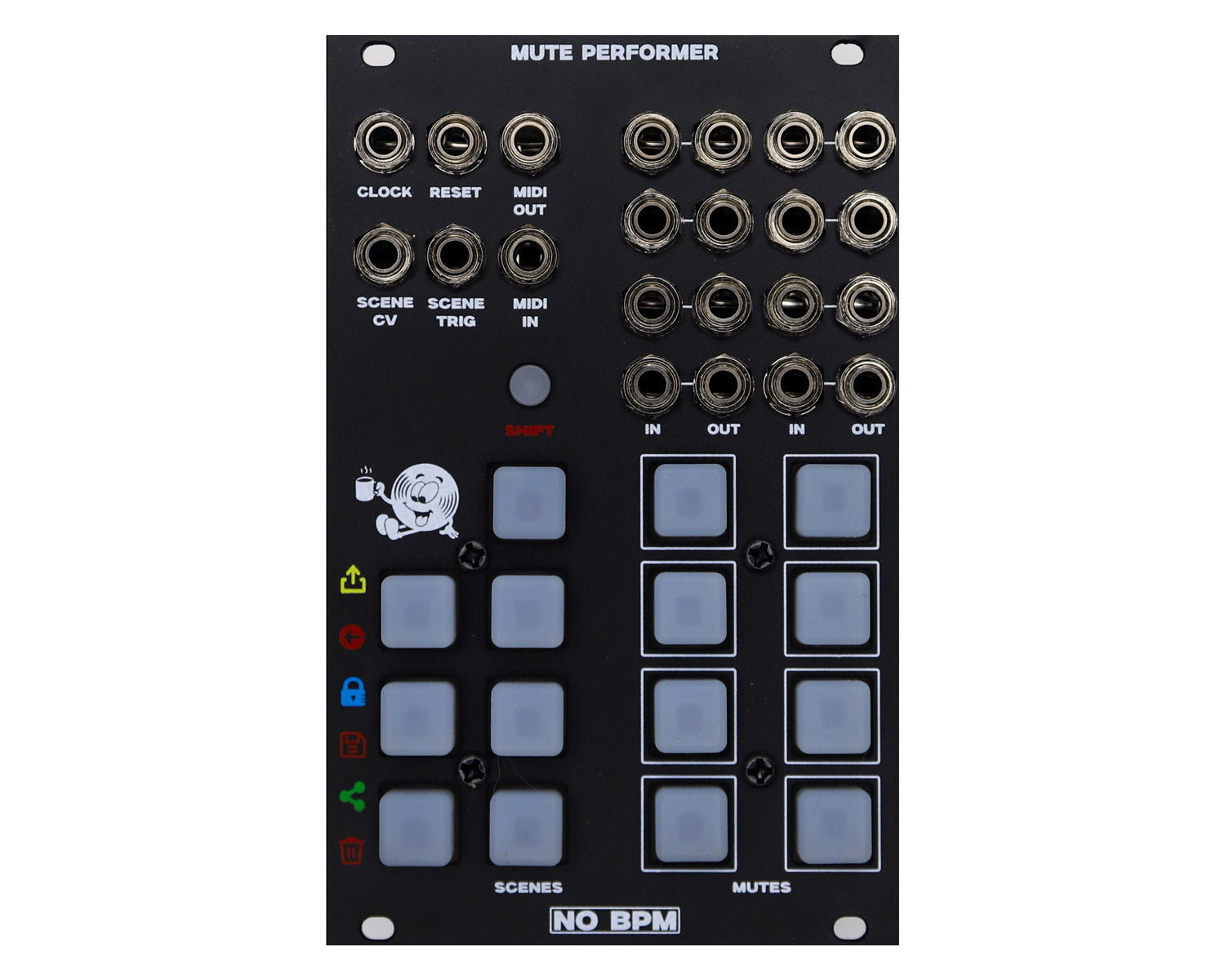

NO BPM Mute Performer

The NO BPM Mute Performer reimagines the mute button as a powerful performance tool. With 8 expandable channels, it lets you cue, lock, invert, and arrange mutes into saveable, triggerable scenes. Stereo pairing, MIDI control, and modulation support make it easy to shape sets in real time, whether inside your rack or connected to external hardware. Expandable up to 72 channels with Mute Expanders, it transforms muting into a dynamic, hands-on performance technique.

Specifications

• Width: 16HP
• Depth: 36mm
• Power Consumption: +12V @ 175mA,
• -12V @ 55mA.
• -5V Not used.
• Channels: 8 Analog/MIDI Channels.
• MIDI Input/Output: MIDI TRS Type A connection, typical 0-5VPP audio signals, safe for connection to -10V.
• Clock Input, Scene Trig and Scene Reset: Typical 0-5V, Leading edge detected @ -2.4V, safe for connection to -10V/through +10V input.
• Scene CV Input: 0-5V, 4 scenes @ 1.25V per step/scene, safe for connection to -10V through +10V input.

Product Specs

• Item Number: 39533
• Make: NO BPM
• Model: Mute Performer
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: MIDI Switch Utility Controller Mixer
• Made In: Australia
• MPN: NOBPM-MP
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 16 HP 36 mm deep
• Power*: 175 mA +12V 55 mA -12V 0 mA 5V

* User contributed details
