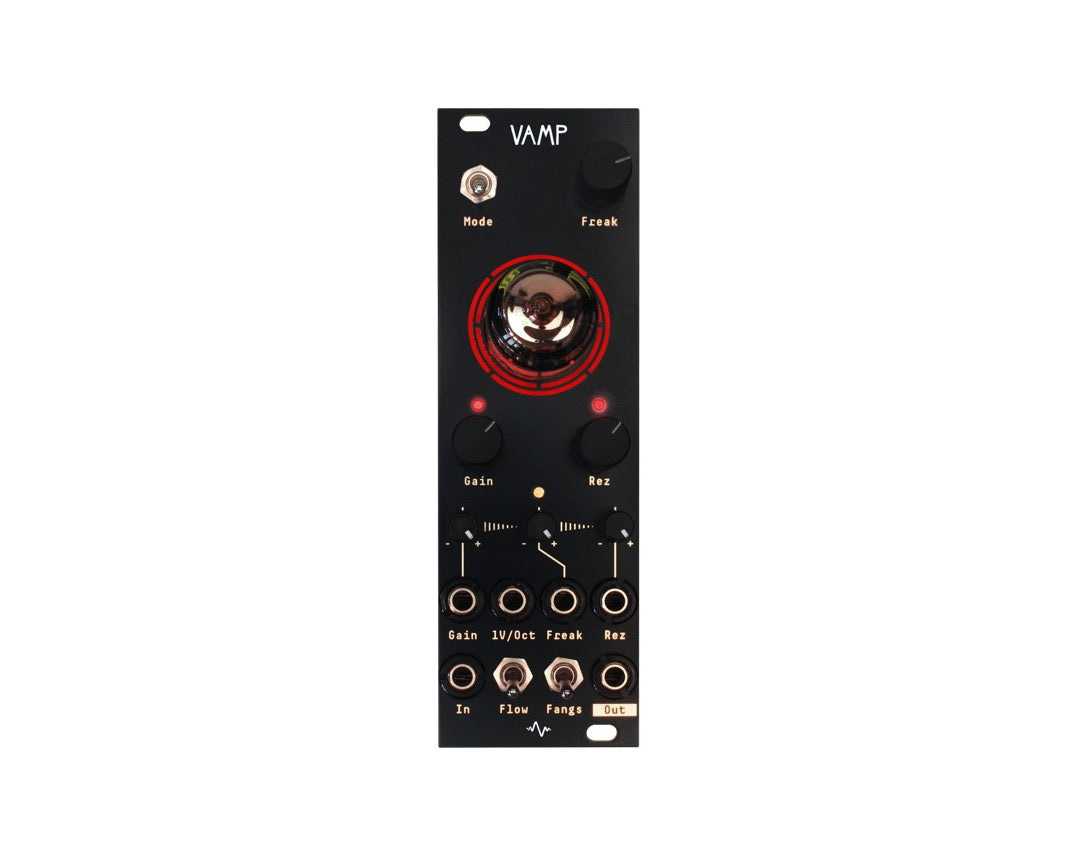

VAMP is a multi-mode analogue filter that gives you low-pass, band-pass, and high-pass responses in 8HP.
At its heart lies a classic Sallen-Key topology supercharged with real vacuum tube (12AU7) saturation and multiple stages of clipping, letting you move seamlessly from smooth, hi-fi filtering to snarling, overdriven character.
One half of the tube is used to saturate the input, while the other half powers the resonance feedback path with an MS-20-style clipping stage. Combined with assignable VCA placement (pre- or post-filter) and a dedicated output clipping circuit, VAMP delivers everything from subtle warmth to ferocious harmonic destruction.
Features
- Three filter modes: low-pass, band-pass, and high-pass
- Classic Sallen-Key topology with tube saturation and clipping
- 12AU7 vacuum tube: one half for input drive, one half for resonance distortion
- MS-20-style resonance path clipping for aggressive tones
- Integrated VCA switchable pre- or post-filter via Flow toggle
- Three-way output clipping: off / soft clipping / hard clipping
- 1V/Oct tracking: use VAMP as a VCO in self-oscillation
- Extensive CV control: VCA gain, frequency modulation (FM), and resonance (Q)
- Self-oscillation for screaming acid tones
Tech Specs
- Width: 8HP
- Depth: 30mm
- Tube Height from panel: 40mm
- Power: +12V 230mA / -12V 70mA
- Reverse polarity protected
Video: https://youtu.be/ABKPVh4tM34
Product Specs
- Item Number: 39530
- Make: Apollo View
- Model: Vamp
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Filter Fuzz Tube VCA
- Made In: United Kingdom
- MPN: VAMP
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 8 HP 30 mm deep
- Power*: 230 mA +12V 70 mA -12V 0 mA 5V
* User contributed details
