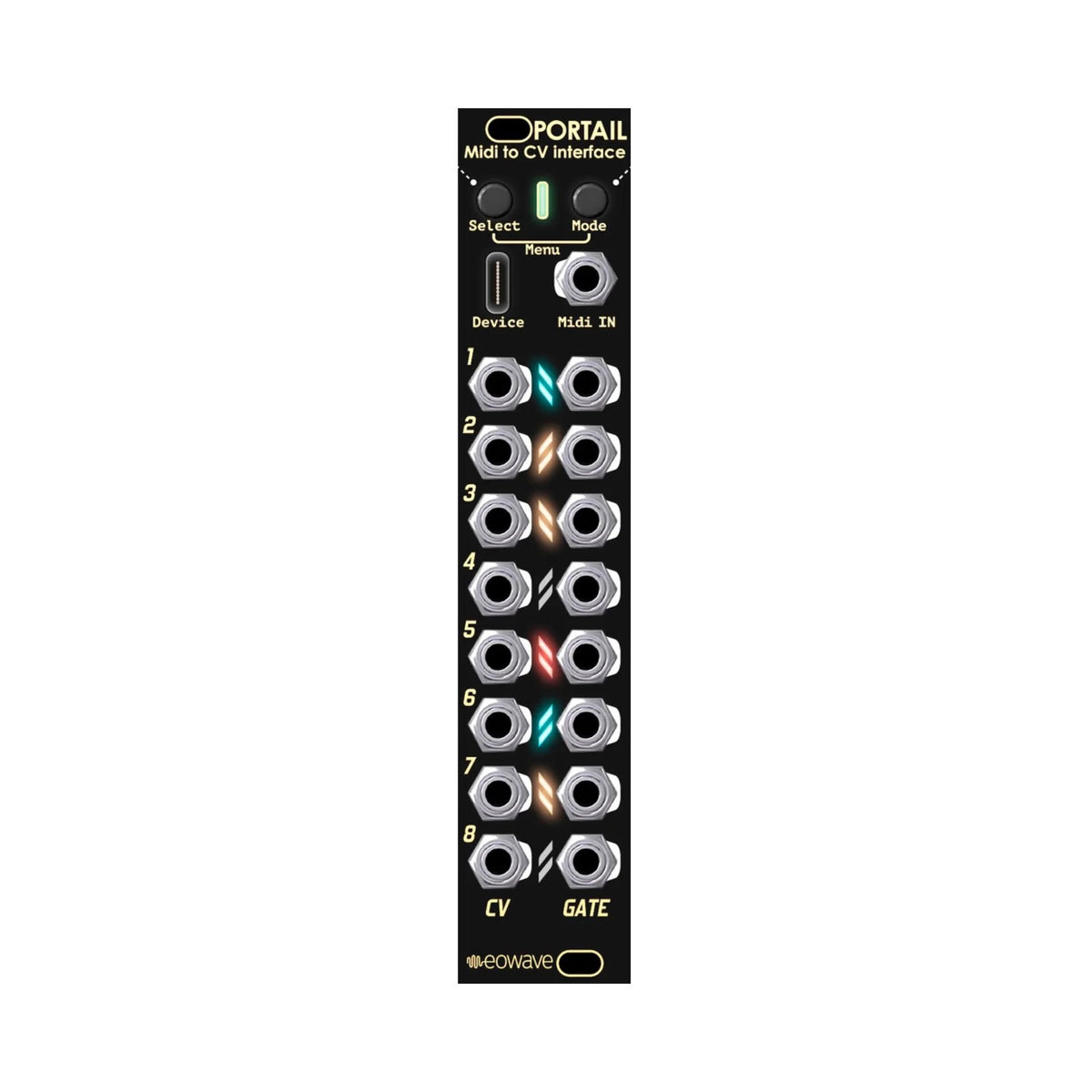

Eowave Portail MIDI/CV Interface

The Eowave Portail is a versatile MIDI-to-CV interface that packs a surprising amount of functionality into a compact Eurorack module. With USB-C and TRS MIDI inputs feeding eight CV and eight gate outputs, it can operate as eight independent mono channels, an eight-voice polyphonic interface, a drum trigger module, velocity-controlled gates and more. Connect it to a computer to customise routing, add quantisation, microtonal scales, randomisation and MIDI effects, then save presets for instant recall.

Specs

• MIDI-to-CV converter
• USB-C and 3.5mm TRS MIDI inputs
• Eight CV outputs
• Eight gate outputs
• Multiple operating modes including polyphonic, multichannel and drum trigger
• Velocity-responsive gate mode
• Built-in MIDI effects including quantisation, microtonality, randomisation and delay
• Computer editor for configuration and preset management
• Eurorack format

Product Specs

• Item Number: 39322
• Make: Eowave
• Model: Portail
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: MIDI
• MPN: eoP
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 5 HP
• Power*: 110 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
