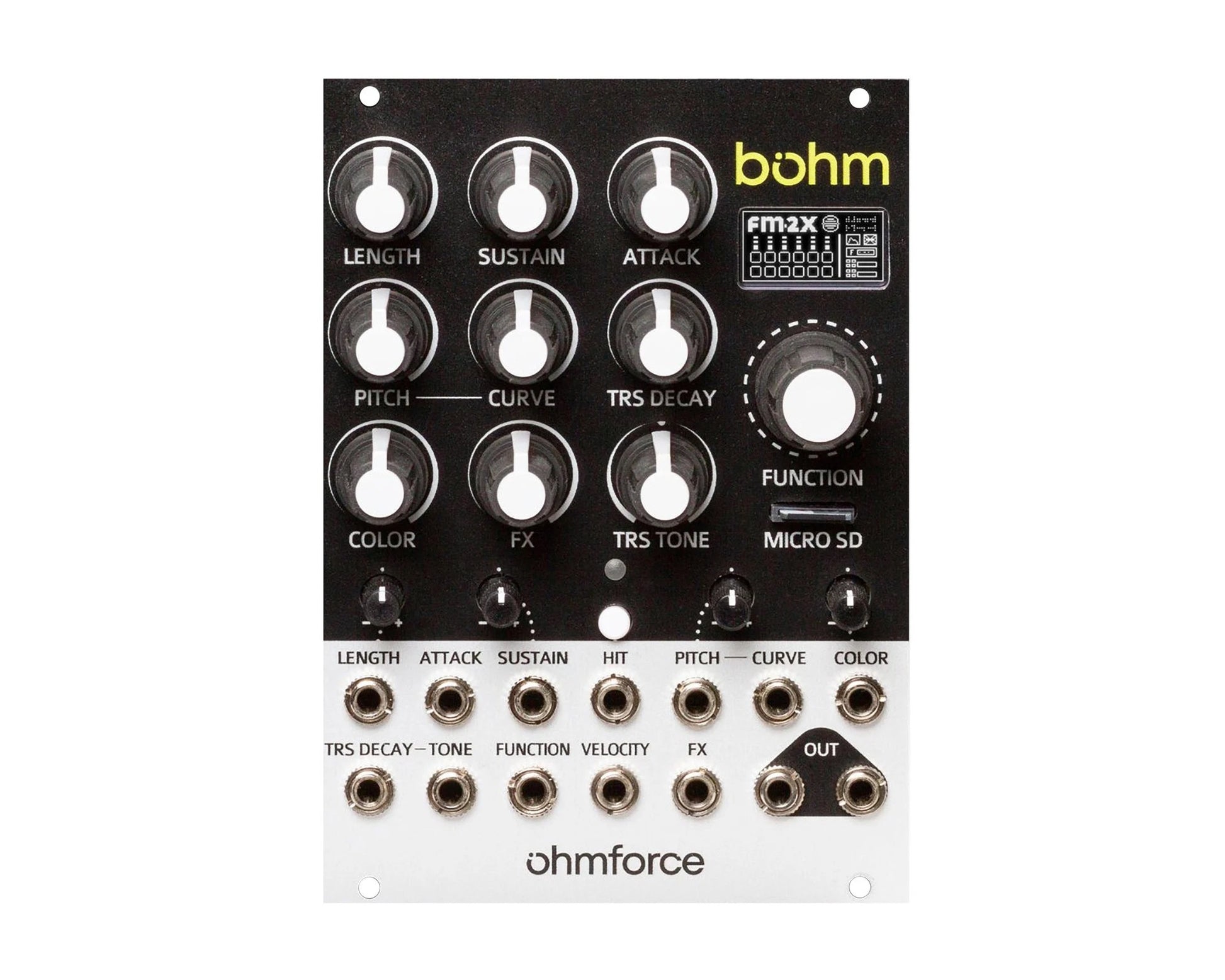

Ohmforce Bohm Dynamic Percussive Texture Module

The Ohmforce Bohm is a feature-heavy, stereo-capable kick synthesis module that offers nine distinct flavours of virtual drum circuitry.
Each model, ranging from FM to wavetable to physical modeling, has its own behaviour and response which can be customised with real-time variations and randomised.
Bohm allows you to swap models while audio plays, modulate almost every parameter via CV, and fine-tune things like pitch curve, transient behaviour, and saturation. It supports V/Oct tracking, stereo output, and deep modulation control through dedicated CV inputs and attenuverters, and it's expandable via the Performer and Groove modules for an even wider soundscape.

Features

• Includes 9 kick engine models: FM, wavetable, physical modeling, sampling
• Real-time model switching and randomization
• Stereo output with full CV modulation over key parameters
• V/Oct pitch tracking with adjustable pitch curve
• All parameters CV-controllable, with attenuverters for LENGTH, SUSTAIN, PITCH, and COLOUR
• USB and microSD support for firmware updates and user sample/wavetable loading
• Expandable with Performer and Groove modules for enhanced routing and control

Video: https://youtu.be/KCuU-6lsKcA

Product Specs

• Item Number: 39290
• Make: Ohmforce
• Model: Bohm
• Condition: Brand New
• Finish: Black / Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Drum
• Made In: France
• MPN: OFBOHM
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 18 HP 28 mm deep
• Power*: 130 mA +12V 10 mA -12V 0 mA 5V

* User contributed details
