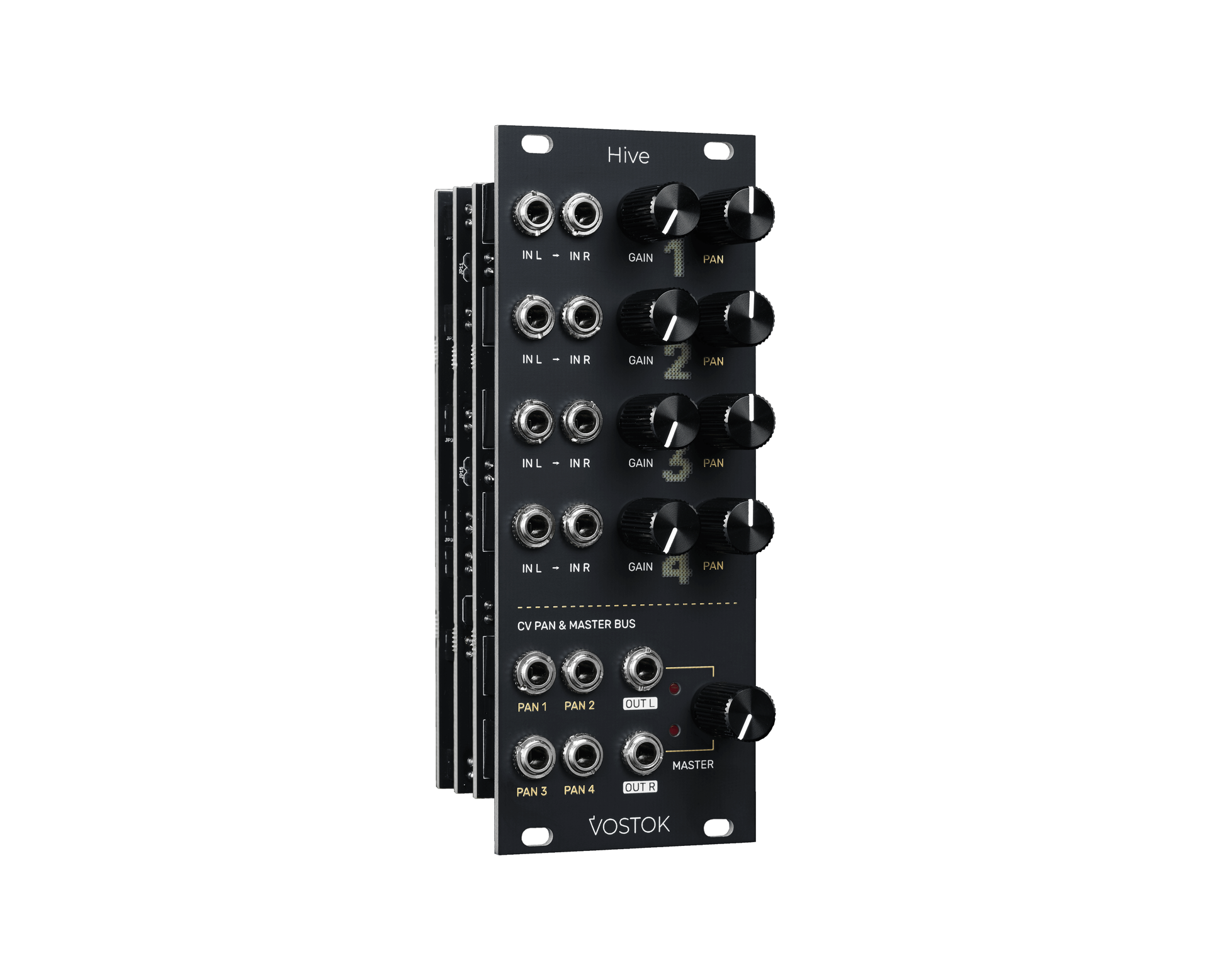

Vostok Instruments Hive Four-Channel Stereo Eurorack Mixer

Hive is a four-channel stereo mixer module with CV-controlled Pan, featuring a stack of three 4-layer PCBs and a meticulously designed audio path.

The module also features a dedicated gain stage per channel, allowing for clean boost signals of up to +9dB, sufficient to bring professional audio hardware, such as synths and drum machines, to Eurorack levels.

The icing on the cake is that it is chainable. The module counts with dedicated rear ports in the back to chain multiple units together, creating a larger sub-mix system.

Features

• Four stereo/mono channels
• Manual and CV-controlled Pan per channel
• +9dB Gain boost per channel
• AC-Coupled audio path with Polypropylene capacitors
• Several units can be chained using the rear chain ports to create an expandable sub-mix system

Product Specs

• Item Number: 38832
• Make: Vostok Instruments
• Model: Hive
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Dual/Stereo Mixer Utility VCA
• Made In: Spain
• MPN: VI-HIVE
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 10 HP 35 mm deep
• Power: 120 mA +12V 120 mA -12V ? mA 5V
