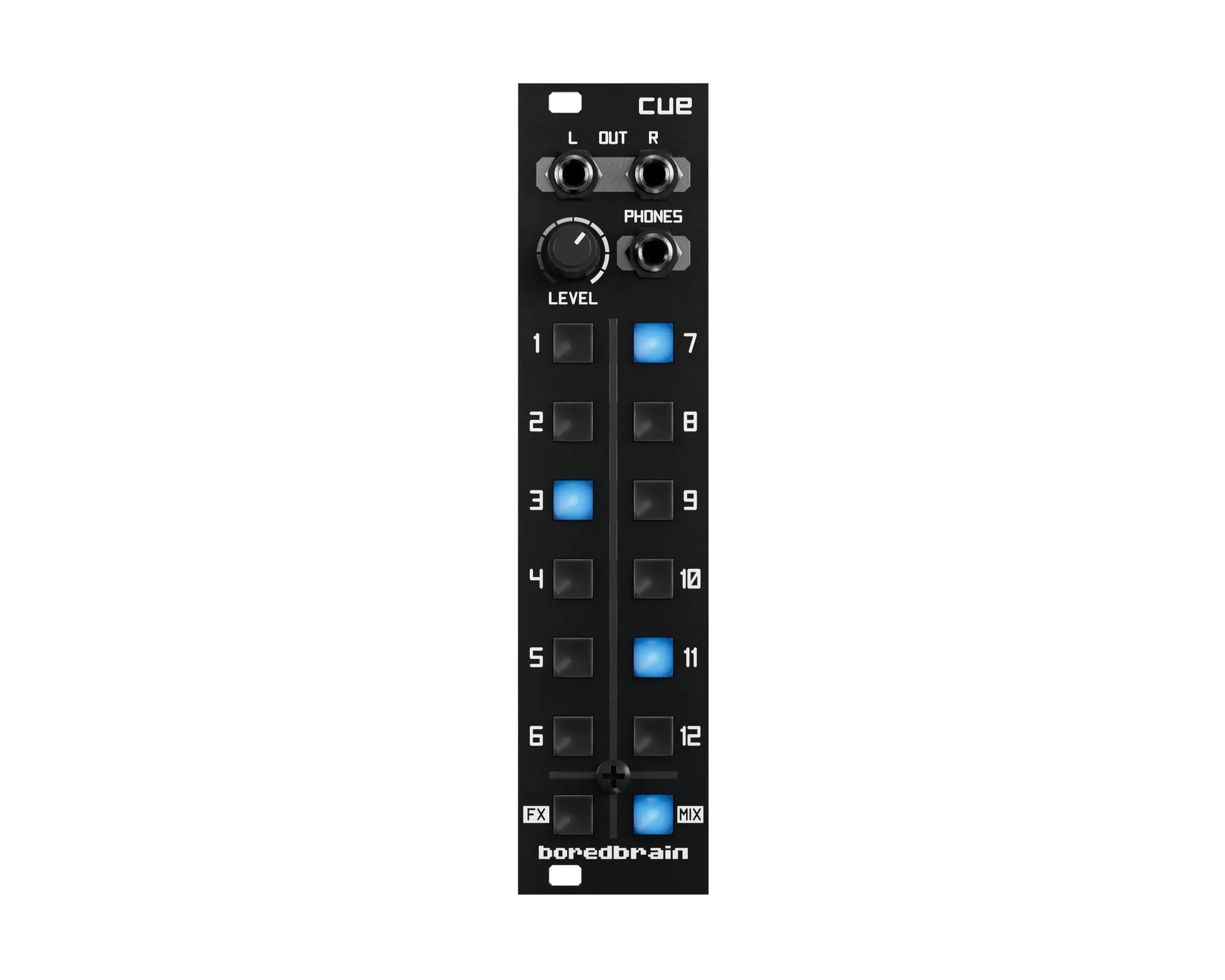

Xcelon Cue is a dedicated pre-fader listening module that adds a cue mix bus to the Xcelon system. It allows for selective monitoring of any channel, the FX returns, or the main Xcelon mix via individual tactile cue buttons, with outputs for both headphones and eurorack-level signals. Cue is an essential tool for live mixing and spontaneous performance.
Features
- Monitor up to fourteen audio sources from Xcelon mixer and channel expanders
- Individual cue buttons for channels 1 thru 12, FX returns and main mix
- Dedicated headphone output with independent level control
- Additional eurorack-level stereo output for alternate cue bus routing
- Also connects to IO module to cue other eurorack audio signals
Tech Specs
- Audio Outputs: 2 x 3.5 mm mono jacks
- Headphone Output: 1 x 3.5 stereo jack
- Headphone Output Impedance: ~0.2 Ī©
- Width: 6 HP
- Depth: 1.5 in (38 mm)
- Weight: 2.4 oz (68 g)
- Power: +12 V 70 mA, -12 V 40 mA
Video: https://youtu.be/M7wLSPBYNPA
Product Specs
- Item Number: 38056
- Make: BoredBrain
- Model: Cue
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Expander
- Made In: United States
- MPN: BB-CUE
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 6 HP 38 mm deep
- Power*: 70 mA +12V 40 mA -12V ? mA 5V
* User contributed details
