Tiptop Audio Octostages

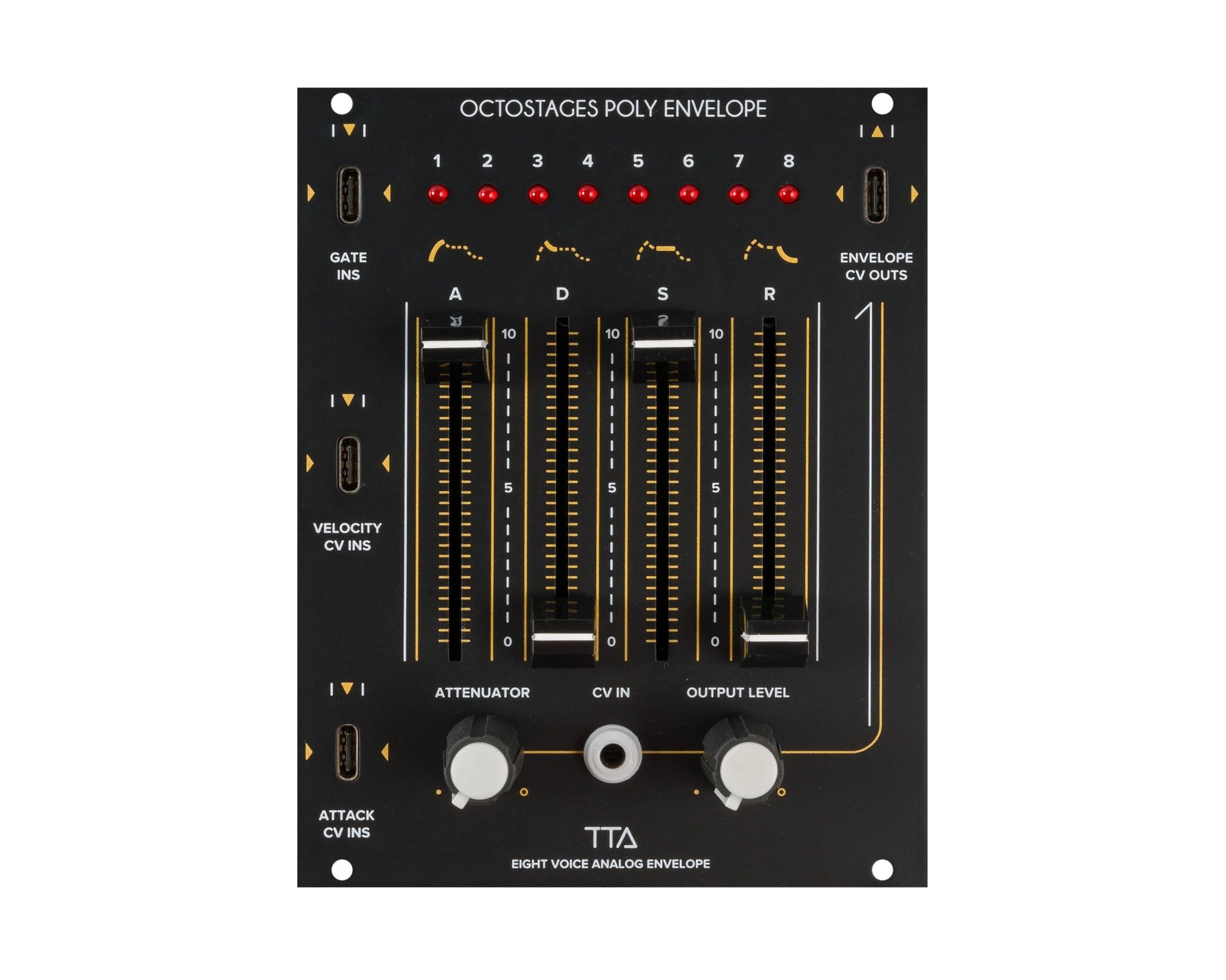

The Tiptop Audio Octostages is an eight voice fully analog envelope generator made with the original envelopes of the 1979 OBX.
Each of the eight envelopes feature a Gate in, Envelope OUT, Velocity CV in and Attack CV in control as well as an output led indicator. A master output level knob and CV using standard mono jack are provided to control or modulate all envelope output levels globally. As there are eight EGs in the module special attention has been given for power consumption efficiency.

Features

• 8-channel polyphonic ADSR envelope generators
• Analog envelope design
• Attack, Decay, Sustain, Release controls on sliders
• Polytip Gate, Velocity, and Attack CV inputs
• Polytip CV output
• Global 3.5mm CV input and attenuator

Product Specs

• Item Number: 37243
• Make: Tiptop Audio
• Model: Octostages
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator
• Made In: Thailand
• MPN: TTA-OCTOSTAGES
• EAN: 8859469915088
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 20 HP 40 mm deep
• Power*: 185 mA +12V 165 mA -12V 0 mA 5V

* User contributed details
