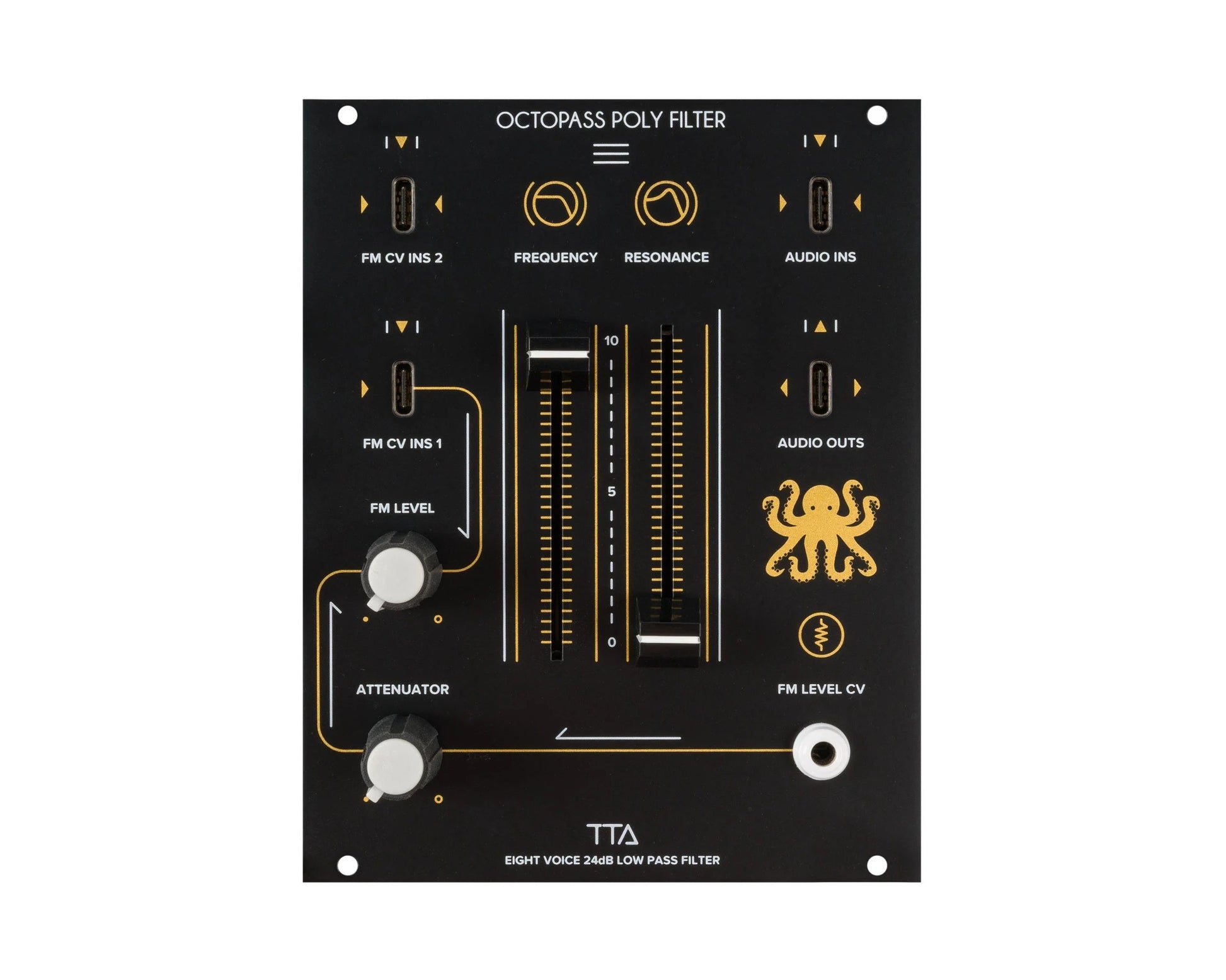

Tiptop Audio Octopass

The Tiptop Audio Octopass is an eight voice professional 24db/octave low pass filter based on the classic 2044 filter found in some of the most iconic and rare synthesisers of all time.
All eight filters are fully analog with linear gain compensation of resonance and the desired analog tolerances between voices. Polyphonic patching is available for audio in and to as well as filter cutoff. A global frequency modulation CV using a mono jack can be used to modulate all eight incoming CVs of the Polytip cut off CV jack. As there are eight filters in the module special attention has been given to power consumption efficiency.

Features

• 8-channel polyphonic lowpass filter
• Based on the 2044 design
• Cutoff frequency and resonance sliders
• Polytip audio input and output
• Polytip FM CV inputs
• Global FM level 3.5mm input

Product Specs

• Item Number: 37242
• Make: Tiptop Audio
• Model: Octopass
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Filter
• Made In: Thailand
• MPN: TTA-OCTOPASS
• EAN: 8859469915071
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 20 HP 40 mm deep
• Power*: 185 mA +12V 165 mA -12V 0 mA 5V

* User contributed details
