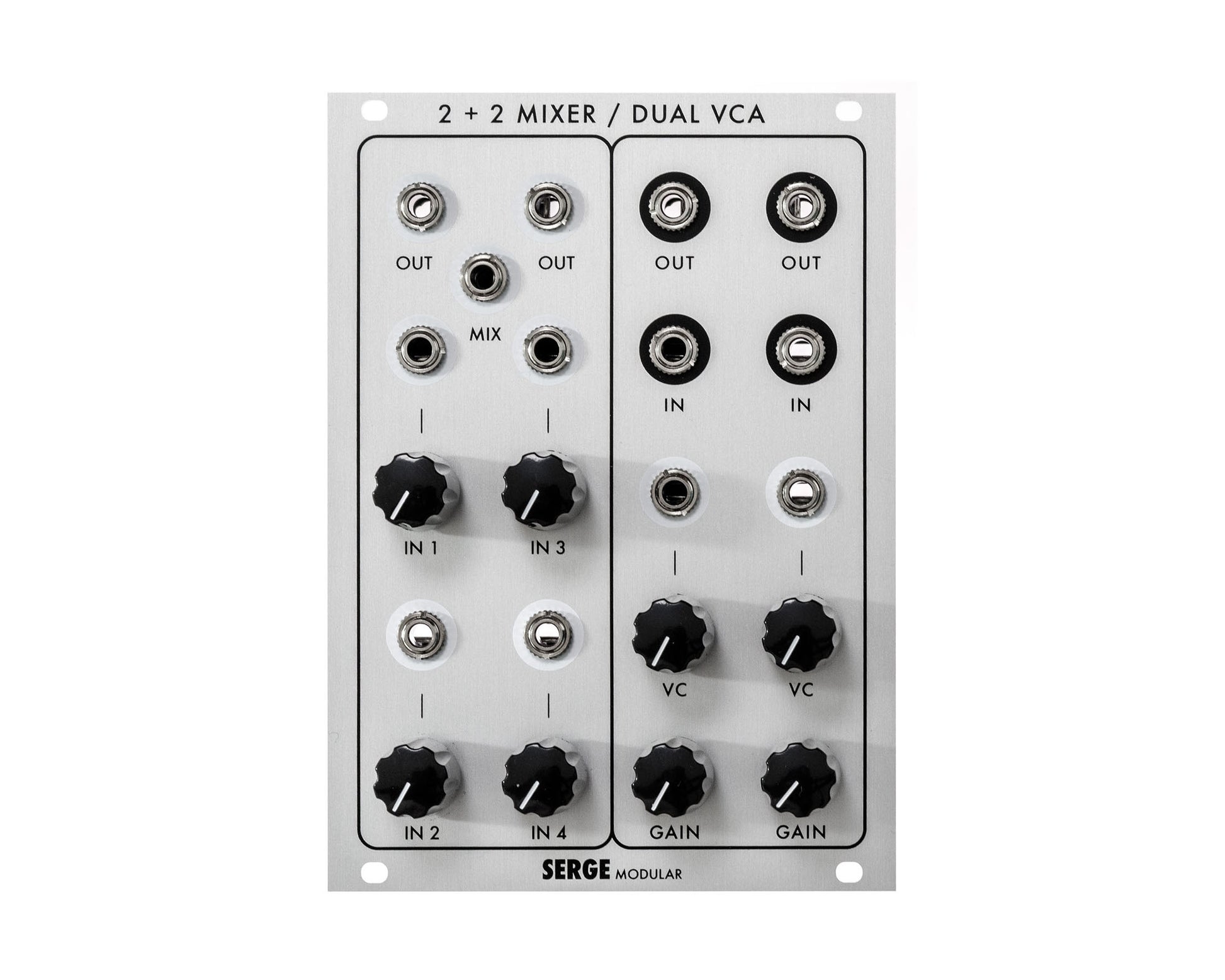

Serge Modular 2+2 Mixer Dual VCA

The 2+2 Mixer (left side) is a combination of two DC coupled 2-channel mixers with a sum out. For audio or CV purposes.
The Dual VCA is the audiophile and distortion friendly VCA taken from the Stereo Mixer. It has a special exponential response that imitates the behavior of the early Serge VCAs and allows massive amplification and overdrive. Beware - the resulting signal can get very high amplitudes (up to 16Vpp) and allows squaring of a sine or triangle wave.

Product Specs

• Item Number: 36999
• Make: Serge Modular
• Model: 2+2 Mixer Dual VCA
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Distortion Dual/Stereo Mixer VCA
• Made In: Germany
• MPN: SM-2+2
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 18 HP 25 mm deep
• Power*: 55 mA +12V 50 mA -12V ? mA 5V

* User contributed details
