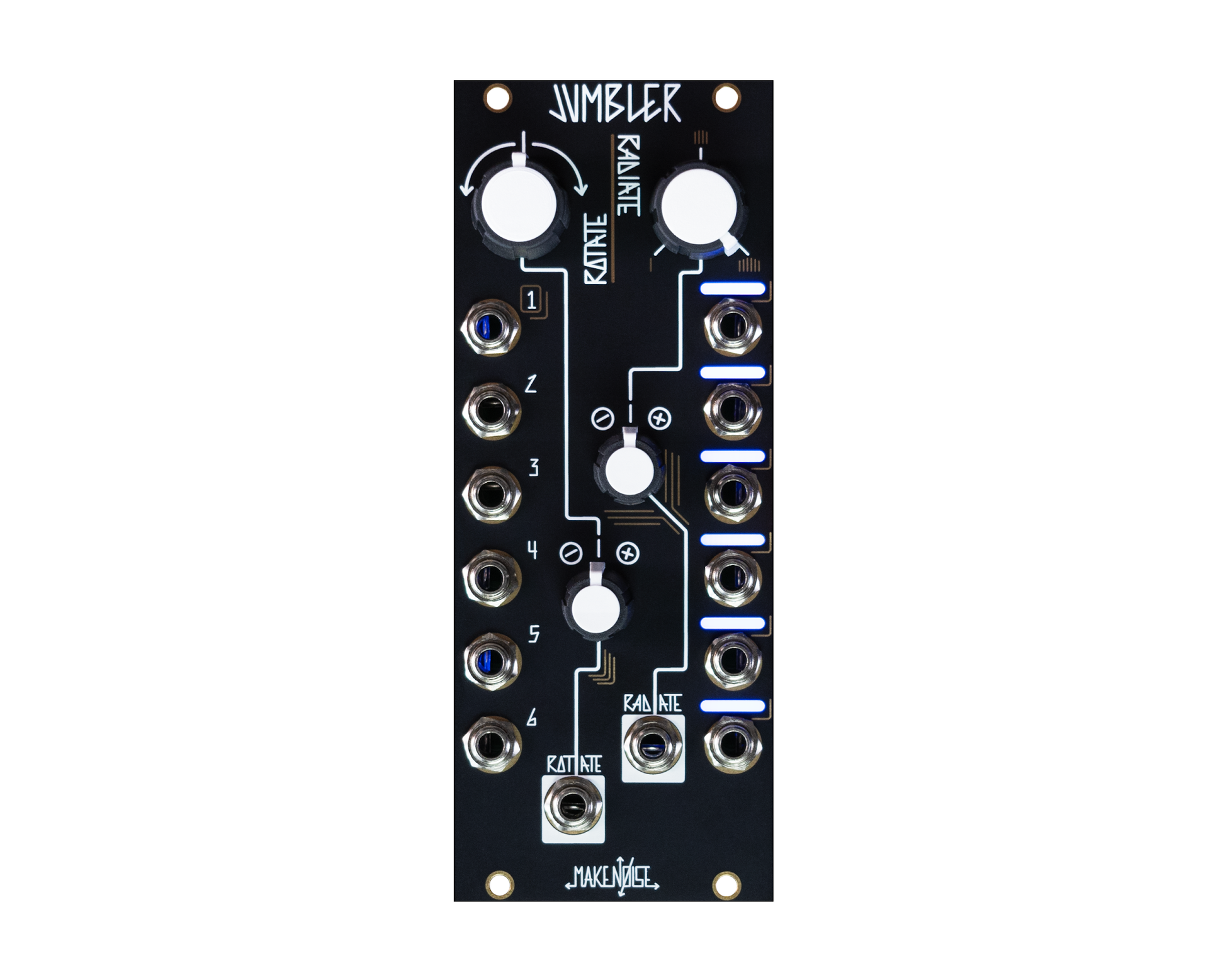

The Jumbler music synthesiser module is a six by six channel analog signal combiner and distributor for the New Universal Synthesiser System or any Eurorack modular synthesiser. Jumble is one of the N.U.S.S. concepts where the routings of a patch could be re-configured, or jumbled, instantly via voltage control to produce variations on a theme.
Jumbler gives you powerful two-parameter access to the rearrangement of both origins and destinations for up to six modular signals. One to six inputs are routed to one to six outputs, in an order determined by the Rotate control, and combination determined by the Radiate control. Unlike a simple switch module, Jumbler’s analog VCA-based design is specially geared for smooth transitions and hybrid signals.
Jumbler is great for hybrid control voltage mashing, complex waveform mixing, on-the-fly effects re-routing, gate and clock re-combinations and more. Some folks have said it is like patching a stack of 6 RxMx circuits.
Features
- Mix and Match up to six signals for up to six destinations
- Easy to use as a voltage controlled mixer or continuously crossfading switchÂ
- Dynamically blend waveforms from a single or multiple oscillatorsÂ
- Create hybrid rhythms with gate or clock sources
- Change up effects routings on the flyÂ
- Create feedback and matrix-mixer patchesÂ
- All analog design featuring 36 VCAs
Video: https://youtu.be/qwEdYFsPxy4
Product Specs
- Item Number: 36984
- Make: Make Noise
- Model: Jumbler
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Mixer Switch
- Made In: United States
- MPN: MN-JMBLR
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 10 HP 43 mm deep
- Power*: 178 mA +12V 92 mA -12V ? mA 5V
* User contributed details
