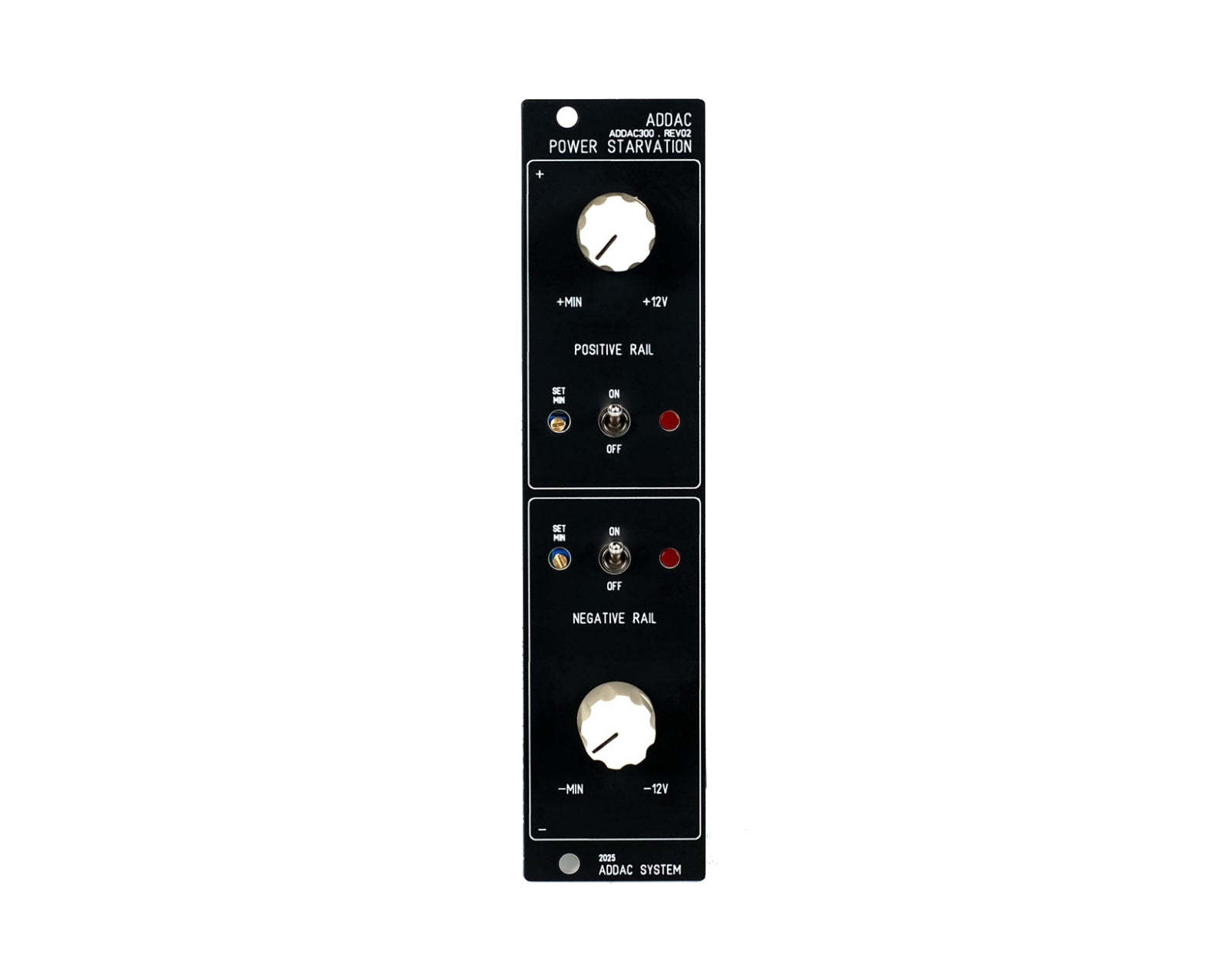

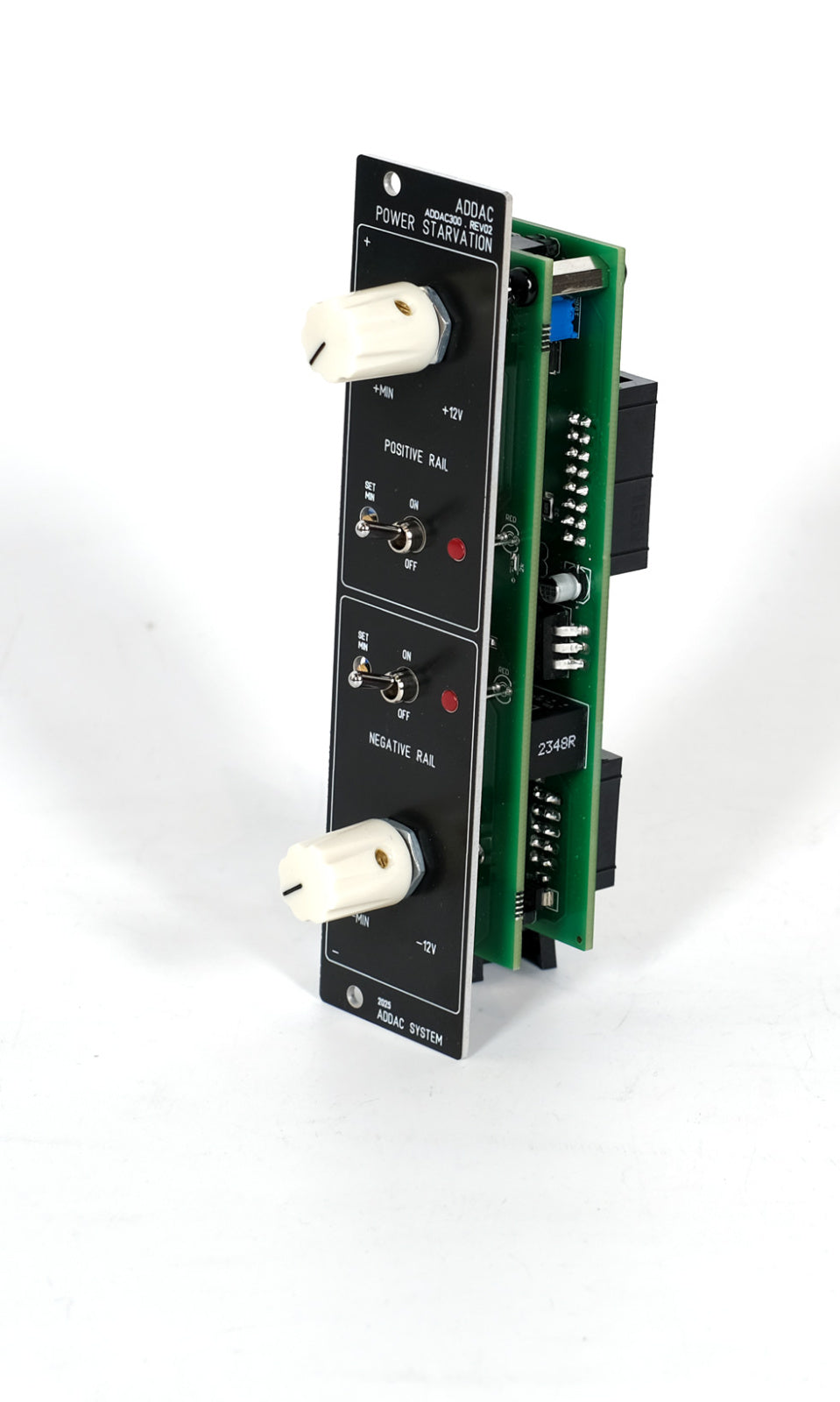

A revision 02 of the Power Starvation module that provides an “ideal” way to power starve other modules, starving modules means the modules will receive less voltage than the standard ±12V supply.
Power starvation is a hack that can generate some of the most interesting sonic effects in circuit bending.
Plug any module below ±200mA through it and independently tune it's supply power. This will have most interesting effects in analog modules: filters, delays, mixers... They can either go silent or start screaming at your ears, going berserk with the lack of current to behaving normally, making them cough and choke.
While revision 01 was a simple circuit with pot working as a voltage divider, this upgraded version uses a DC to DC converter that receives its input from the +12V power rail and outputs a bipolar 15V supply. This DC-DC converter also offers short circuit and overcurrent protection. The ±15V lines are then sent through variable analog voltage regulators that can output a range of 2.5V to 13.5V. In other words, the module features a ±200mA PSU with variable voltage outputs.
Product Specs
- Item Number: 36314
- Make: ADDAC System
- Model: ADDAC300 REV.02 Power Starvation
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Made In: Portugal
- MPN: ADDAC300 REV.02-PS
